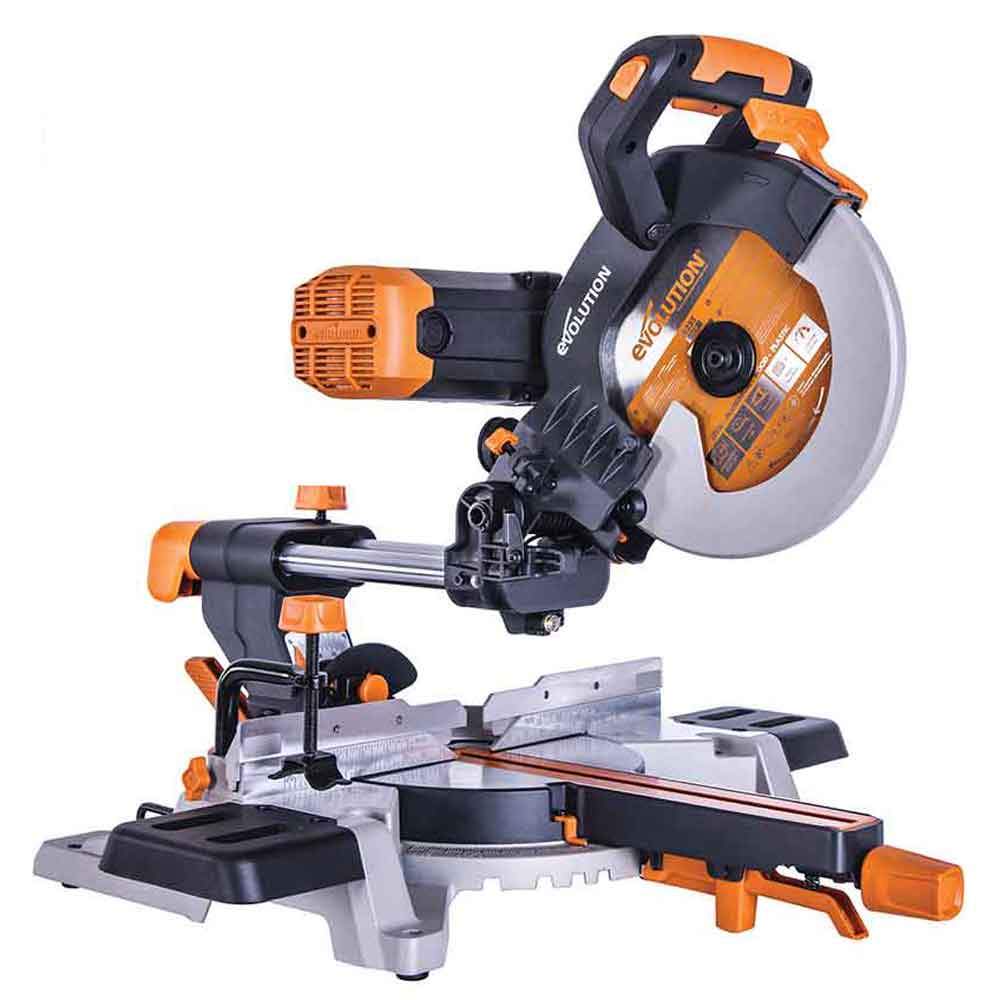

Evolution R255SMS-DB 255mm Double Bevel Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Evolution R255SMS-DB 255mm Double Bevel Sliding Mitre Saw With TCT Multi-Material Cutting Blade

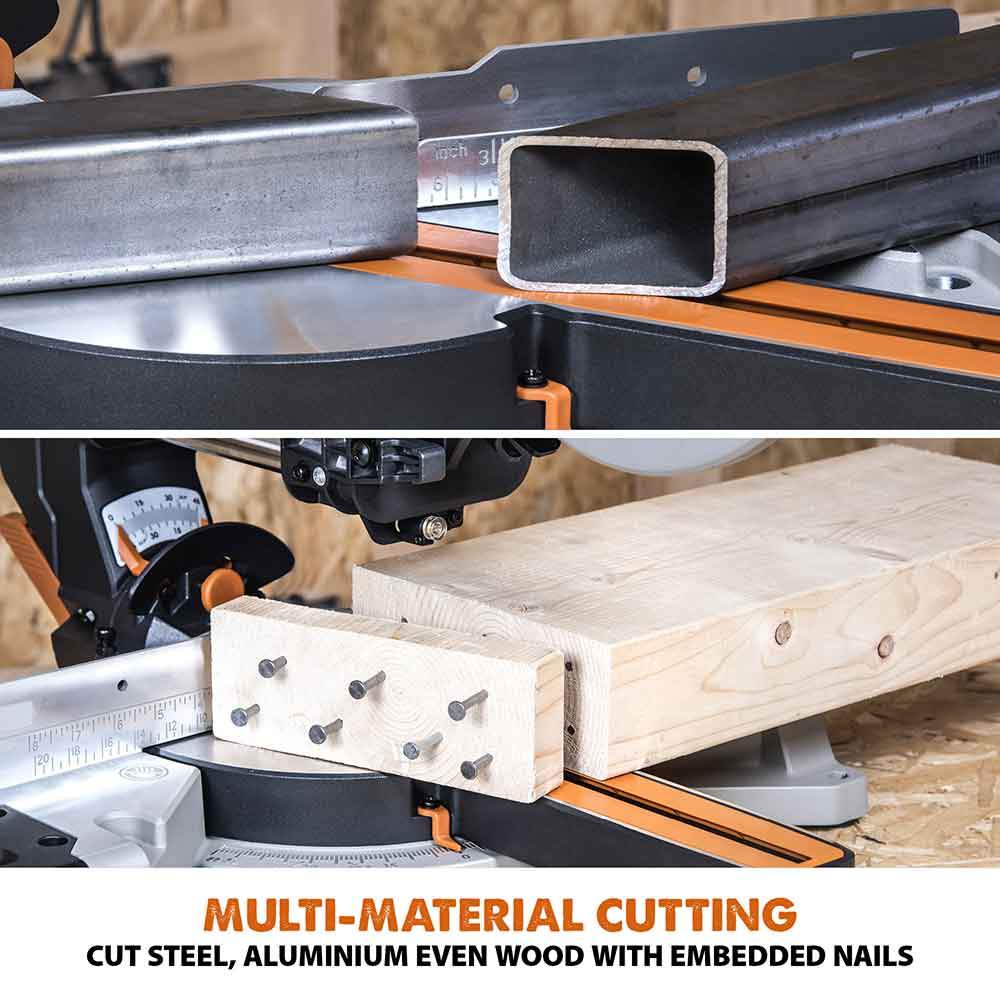

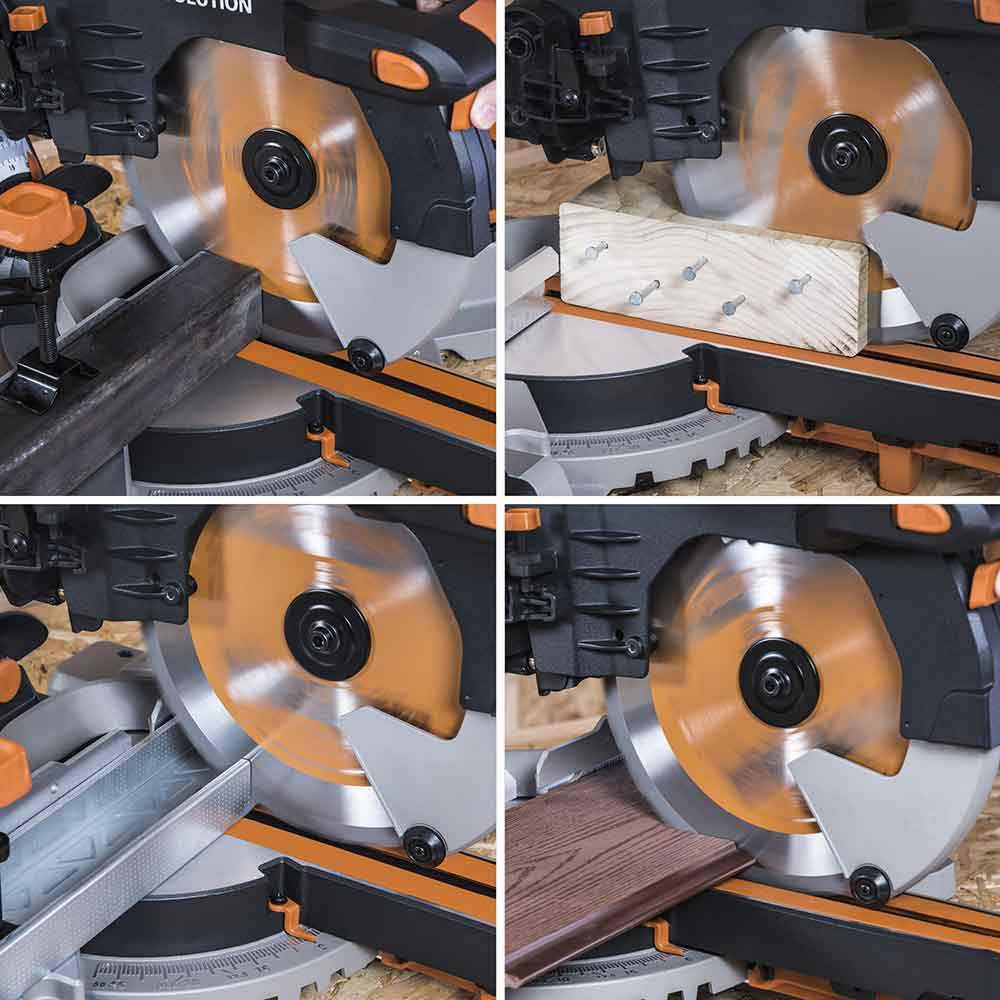

- Multi-Material cutting technology. One saw, one blade, cuts all, one blade, cuts all. *

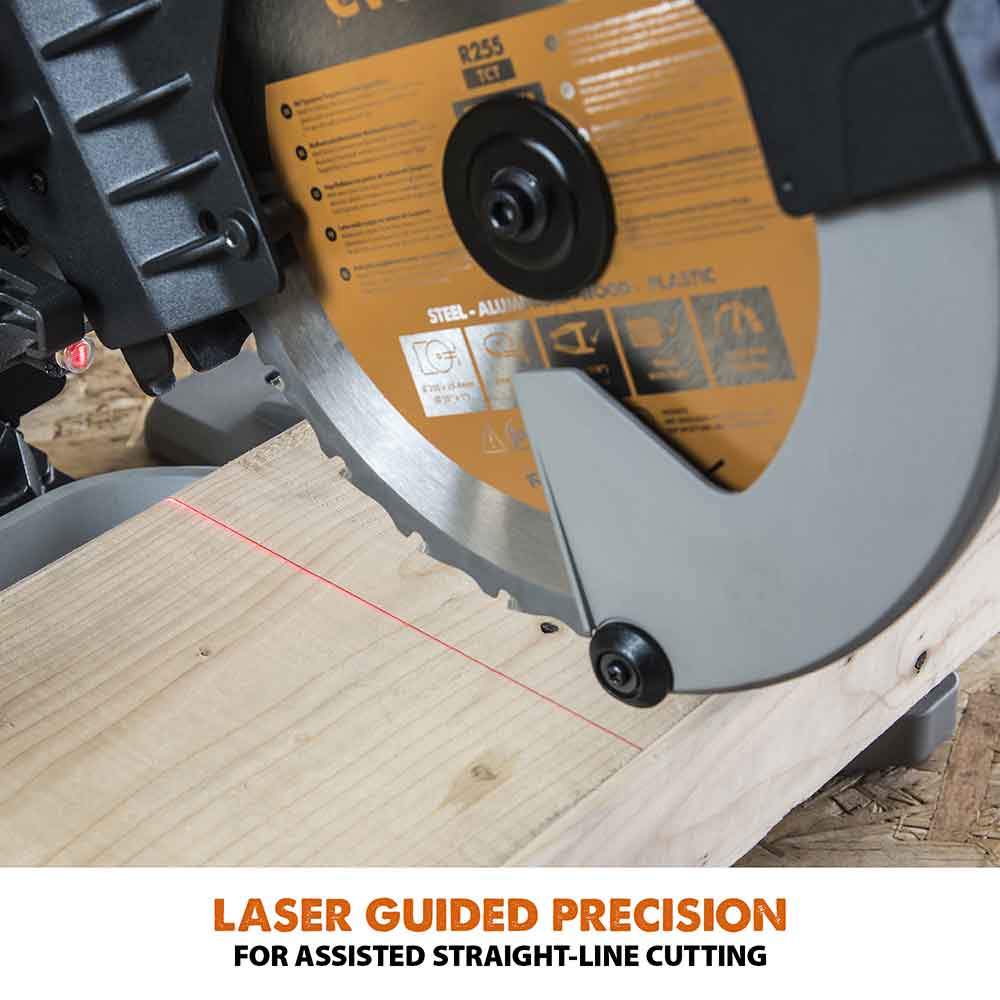

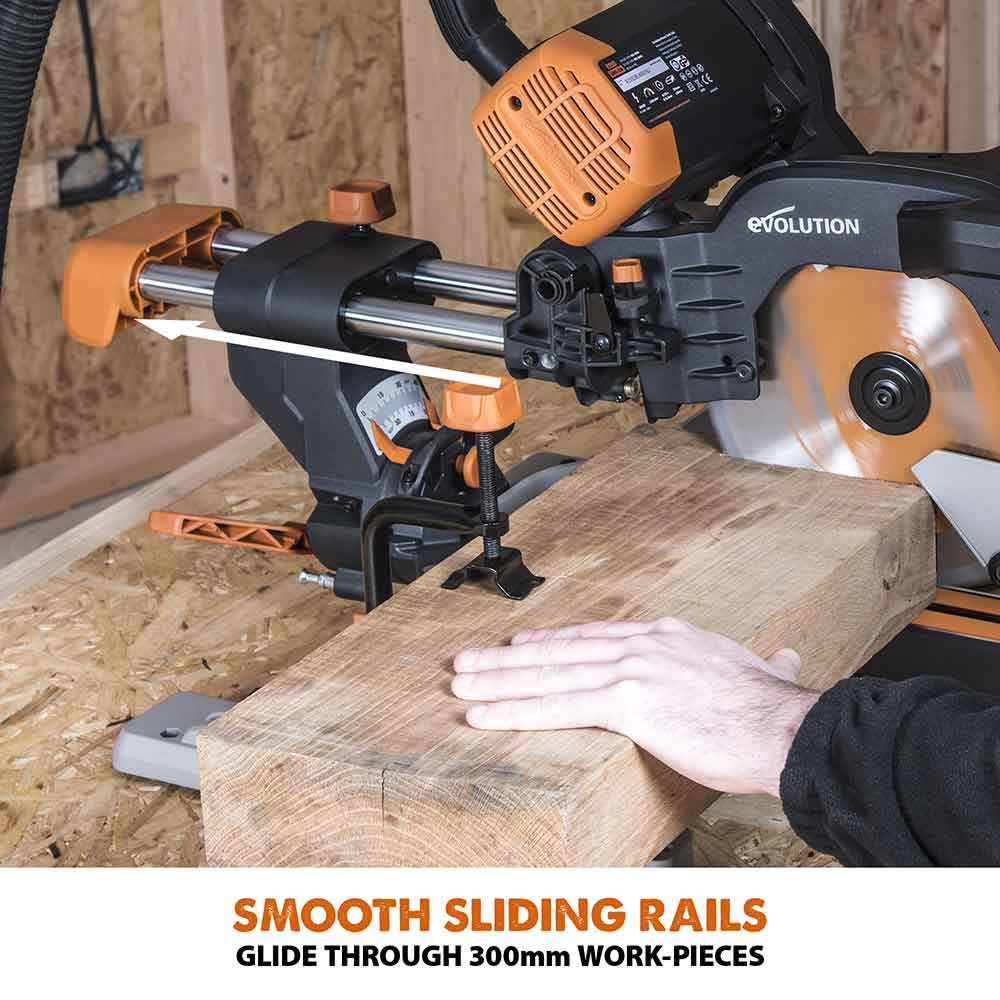

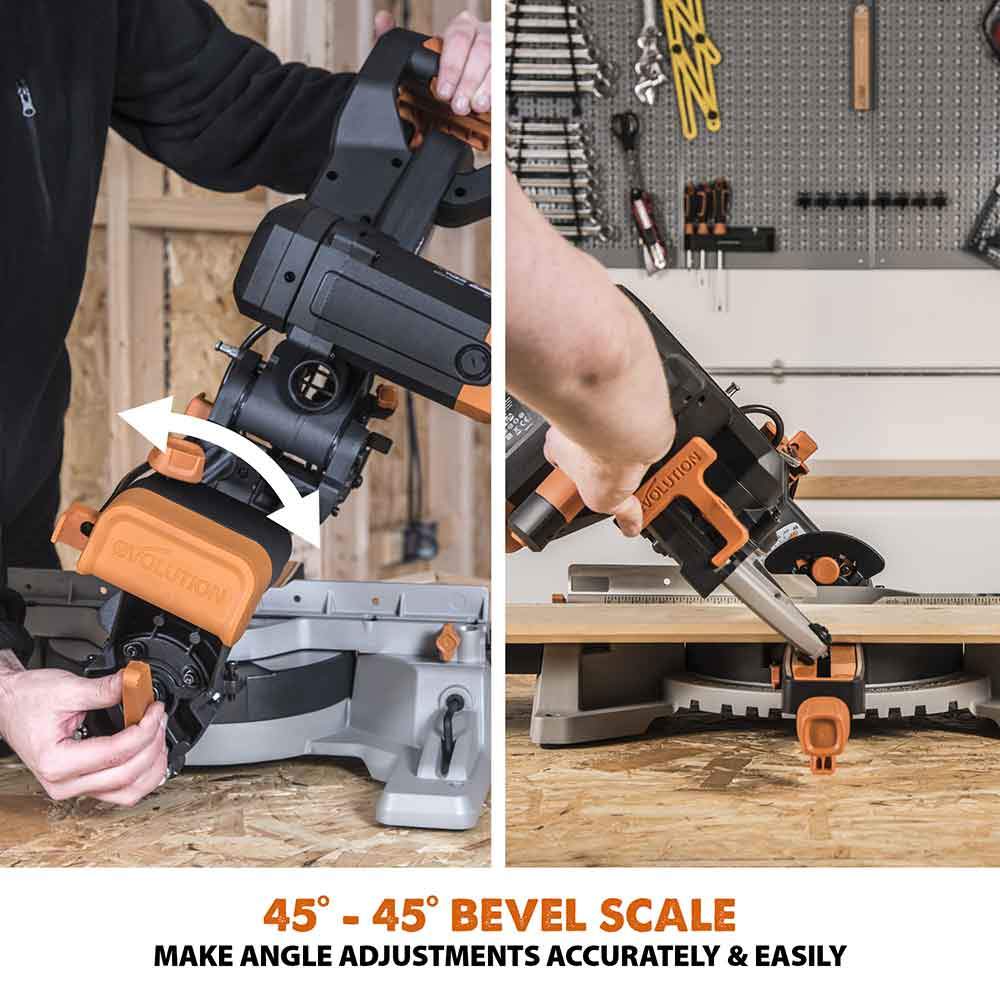

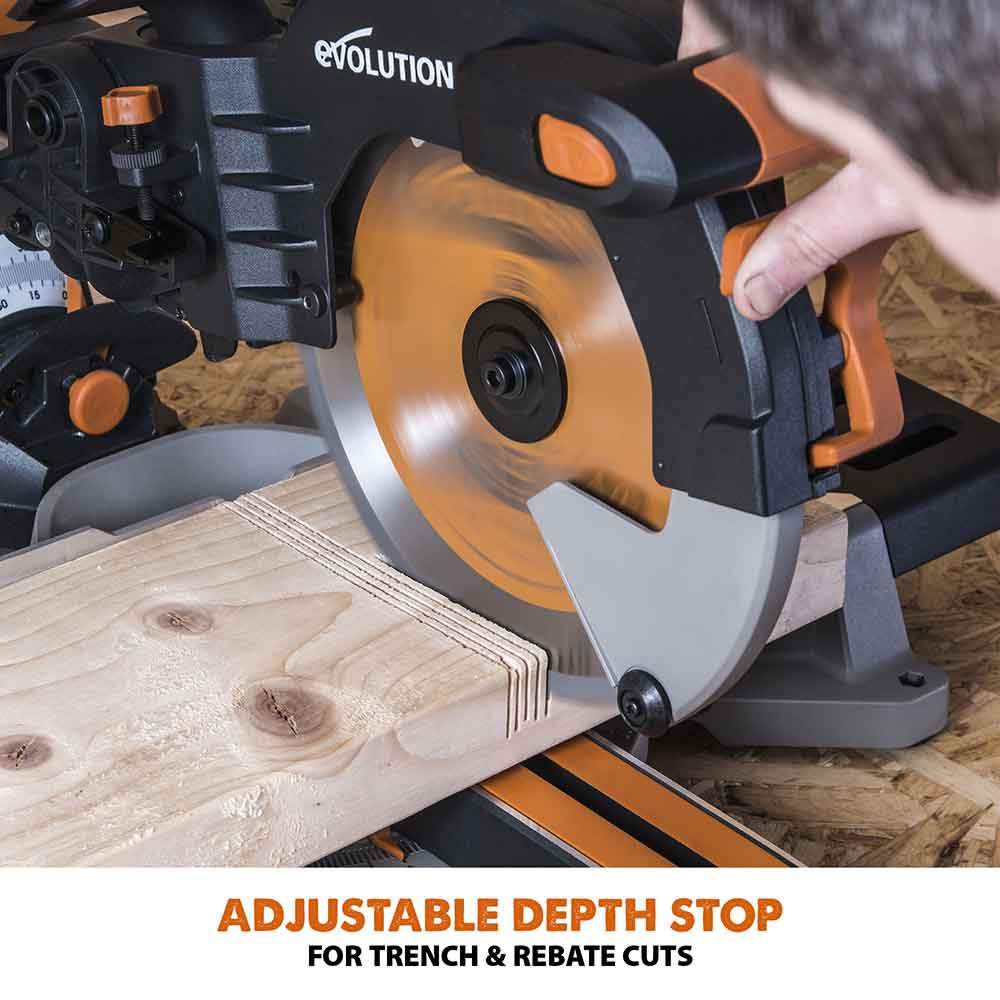

- Accurate cutting with 45° - 0° - 45° bevel tilt left and right, plus 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
- Smooth, square, reliable cutting every time in a variety of materials.

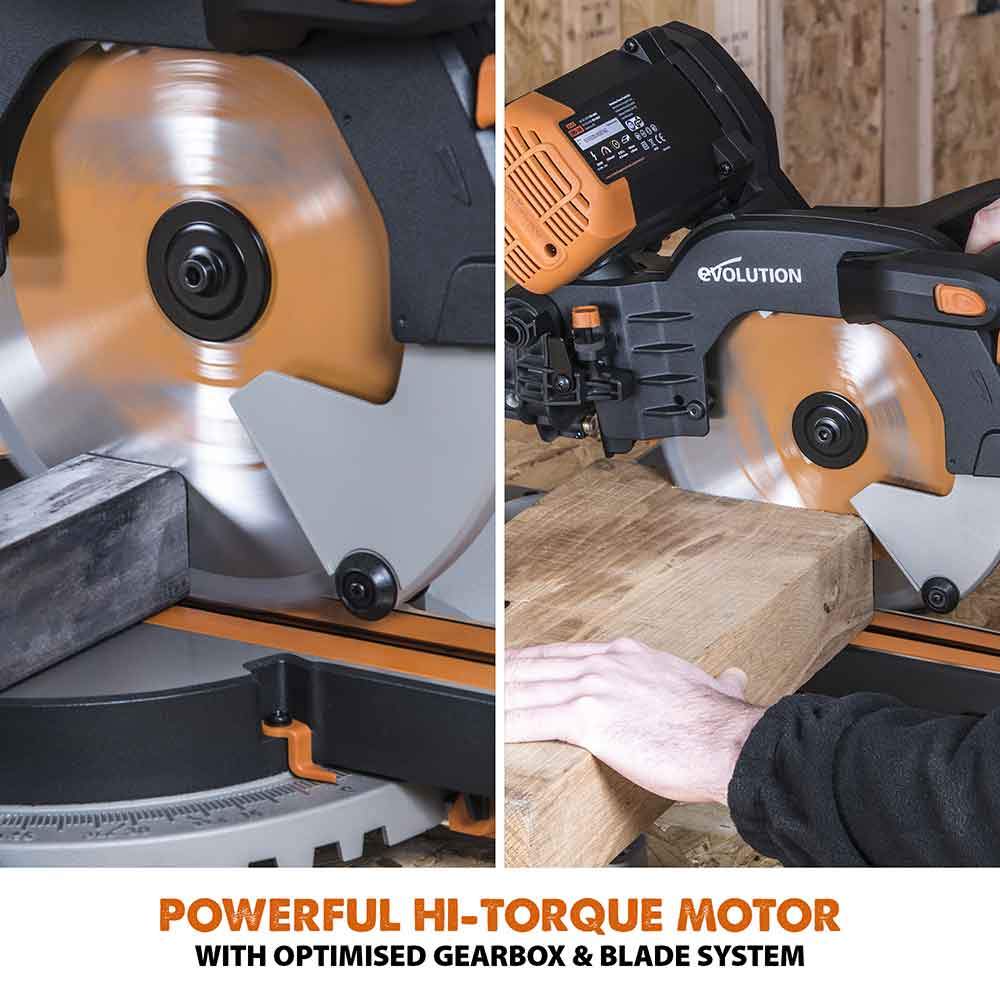

- Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.

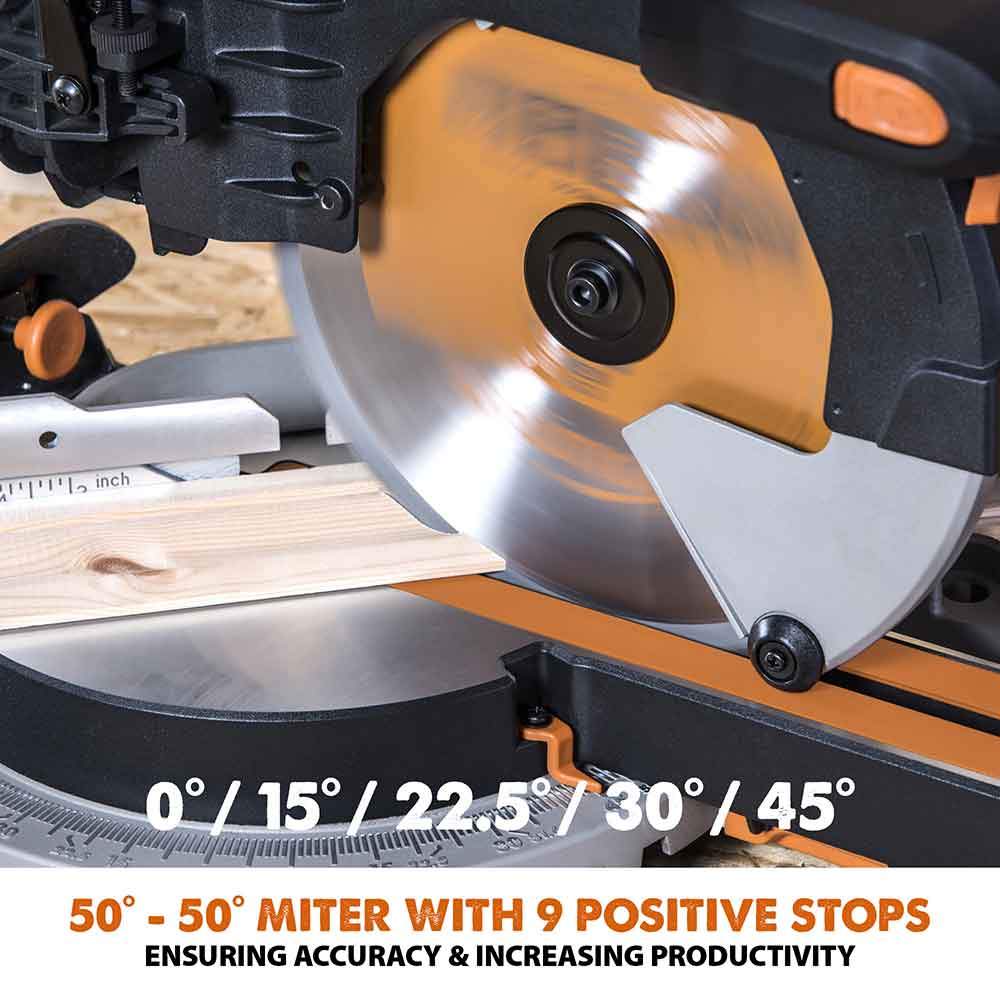

- Clean & consistent smooth cutting to within +/- 0.5˚ with 45° - 45° double bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

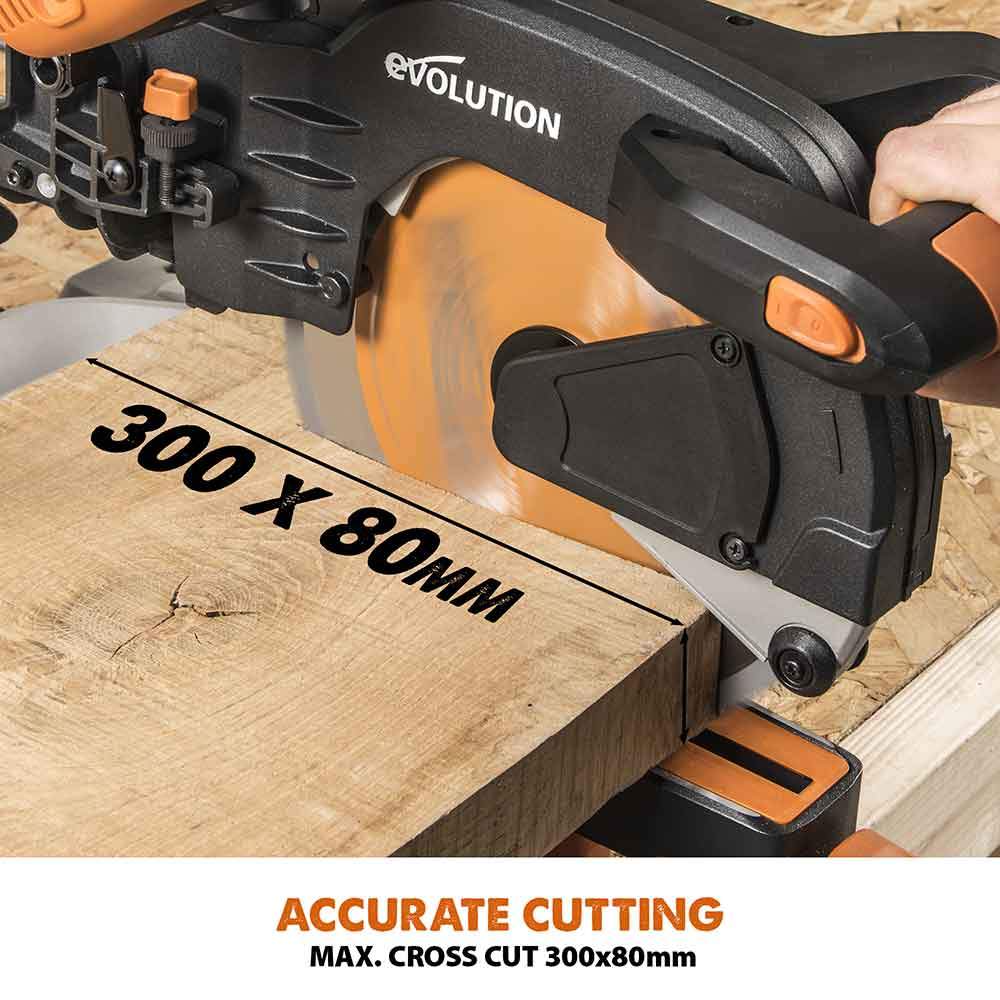

- Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.

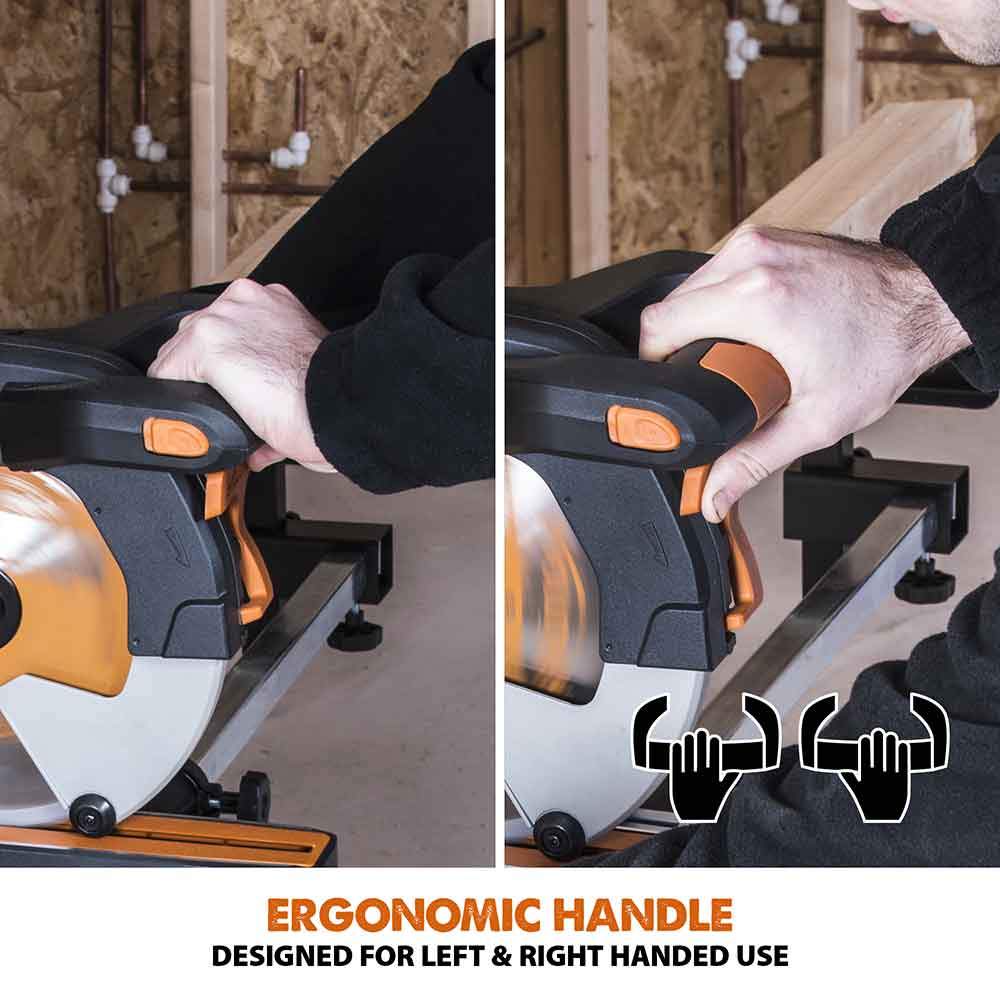

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.

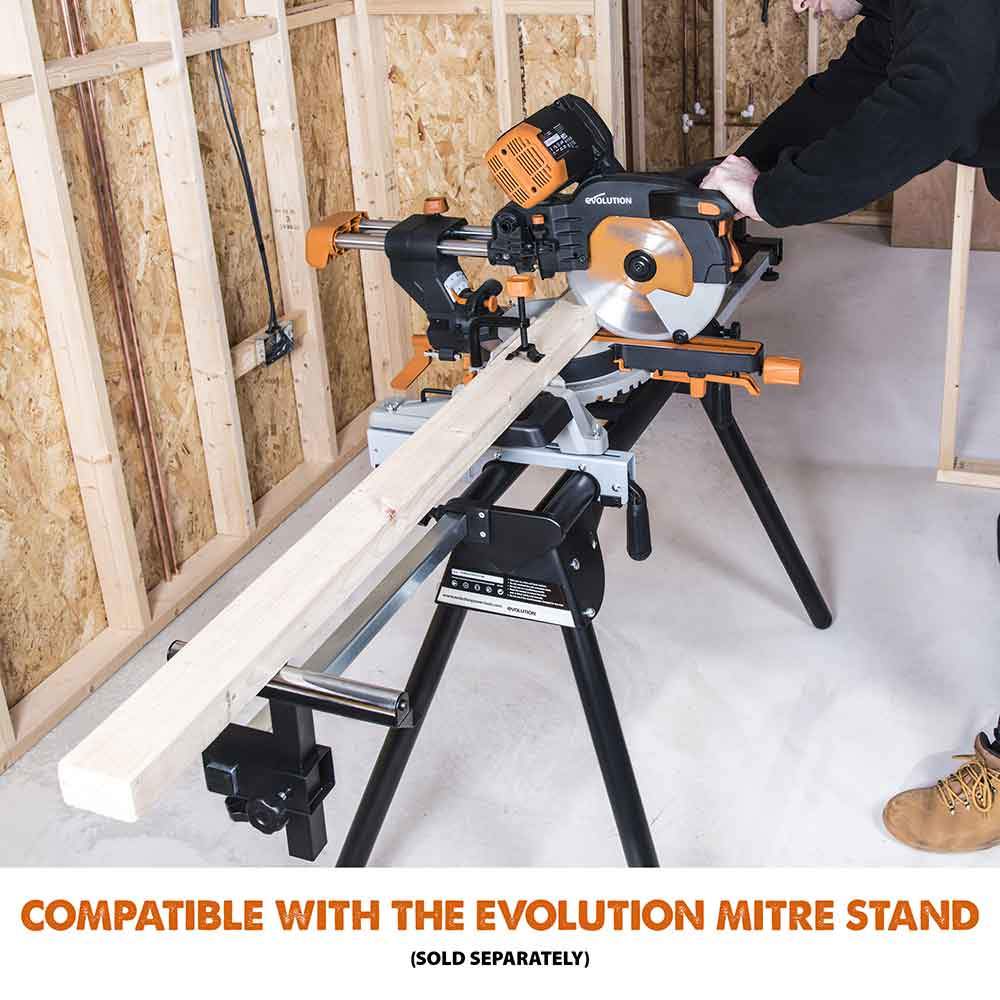

- Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.

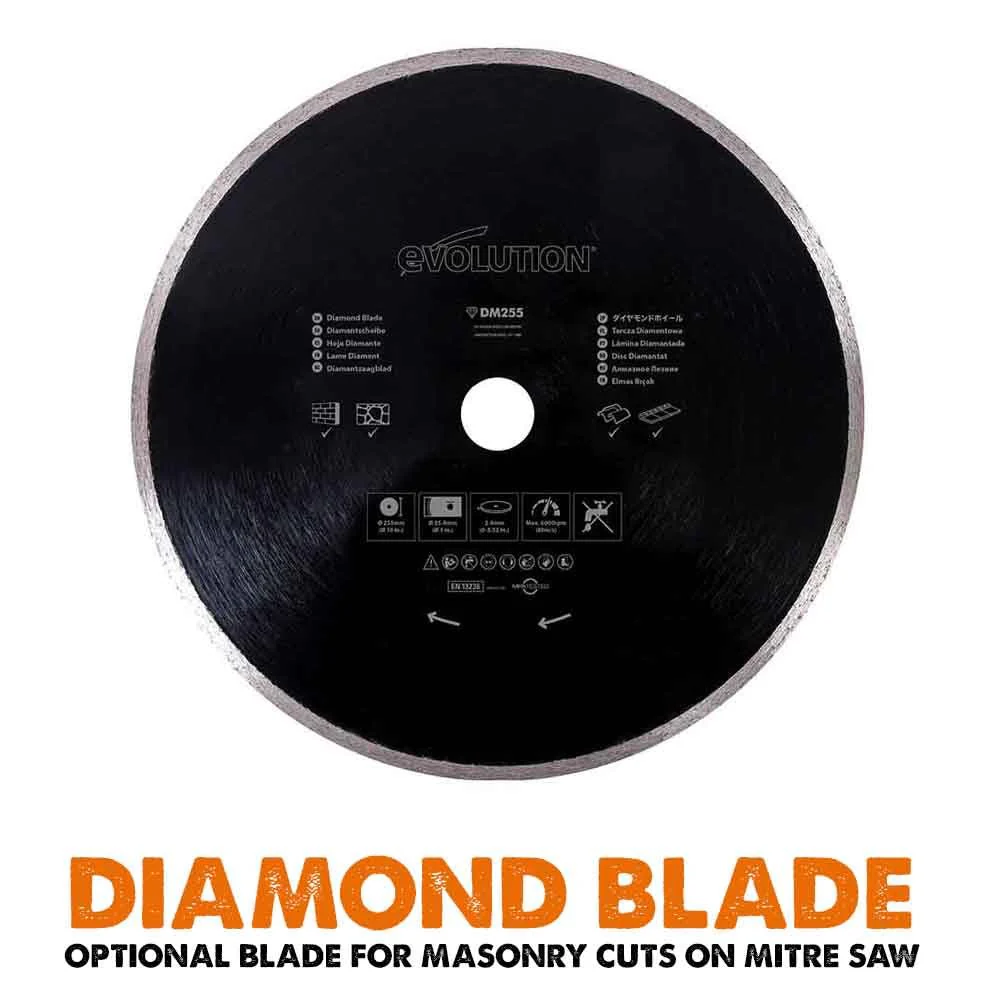

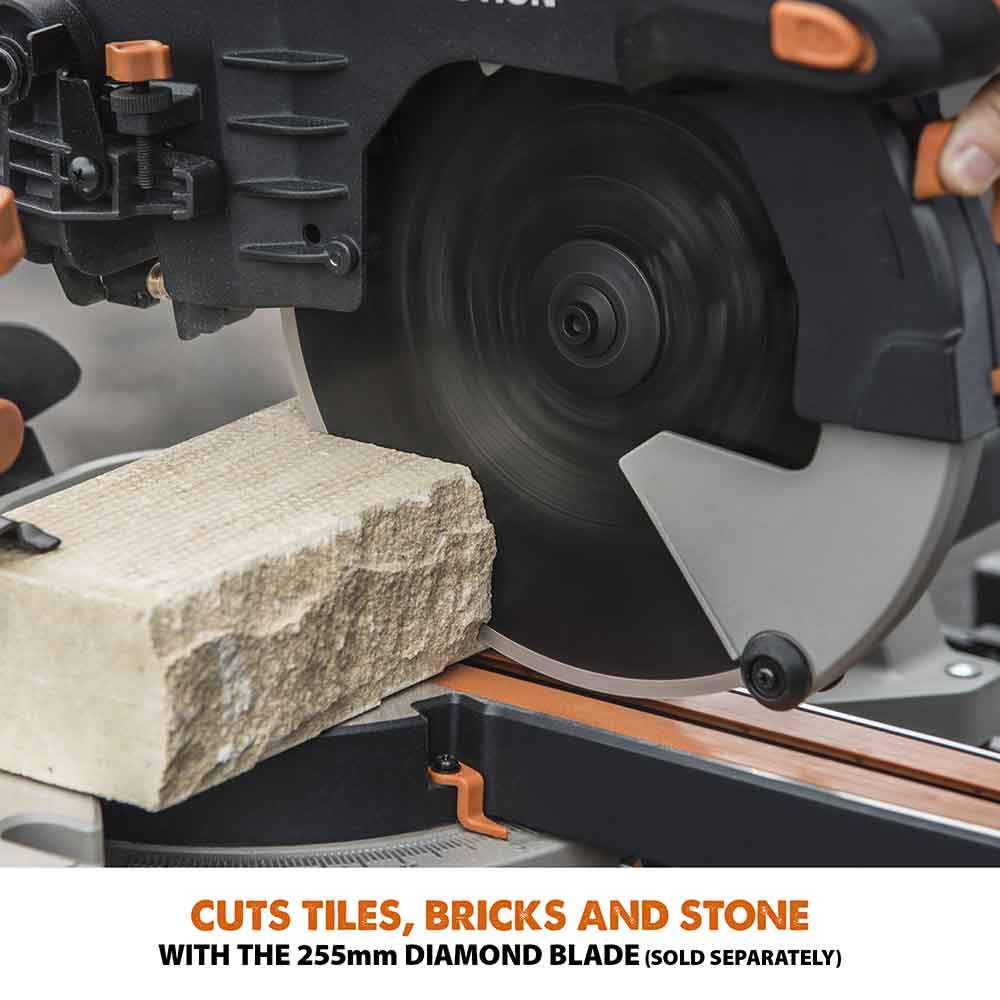

- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 2000W |
| Speed No Load: | 2600 min-1 |
| Max. Mitre: | 50° - 0° - 50° |
| Max. Bevel (Left & Right) | 45° - 0° - 45° |
| Blade Guard: | Cast Aluminium |

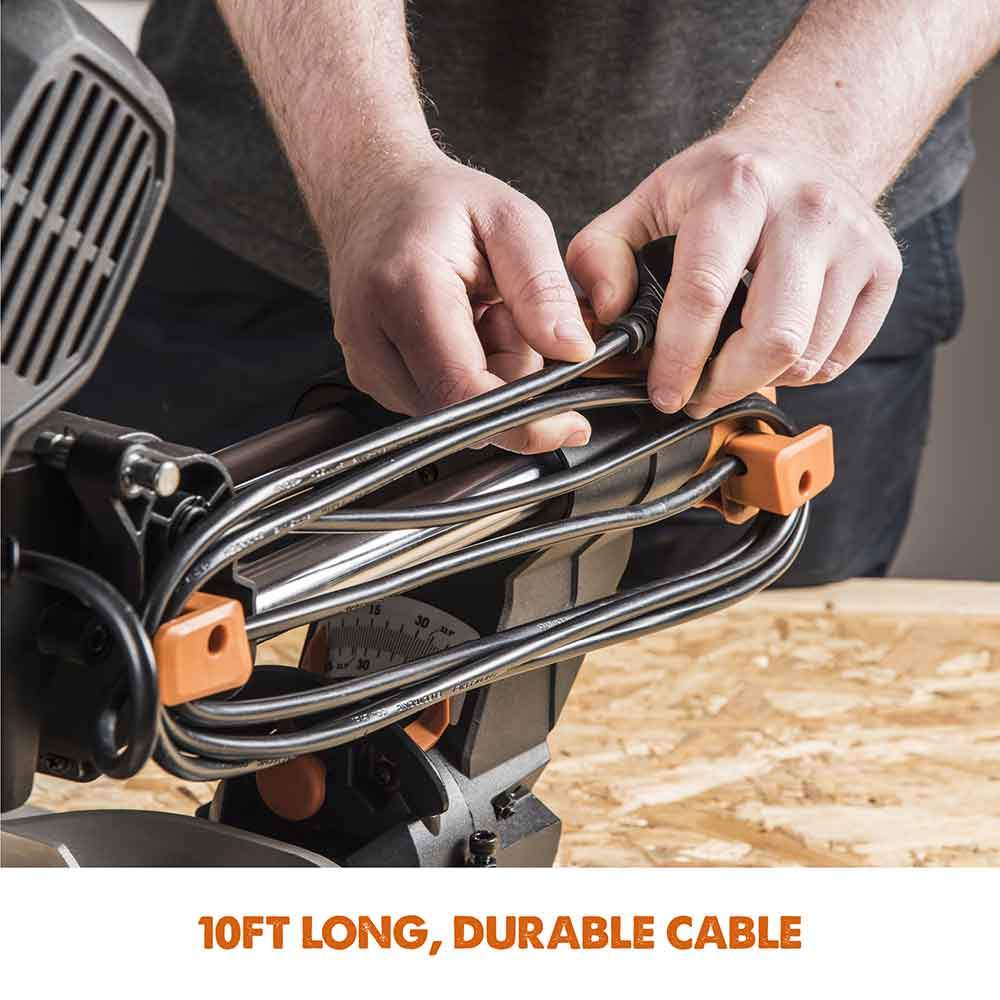

| Cable Length: | 3m |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |

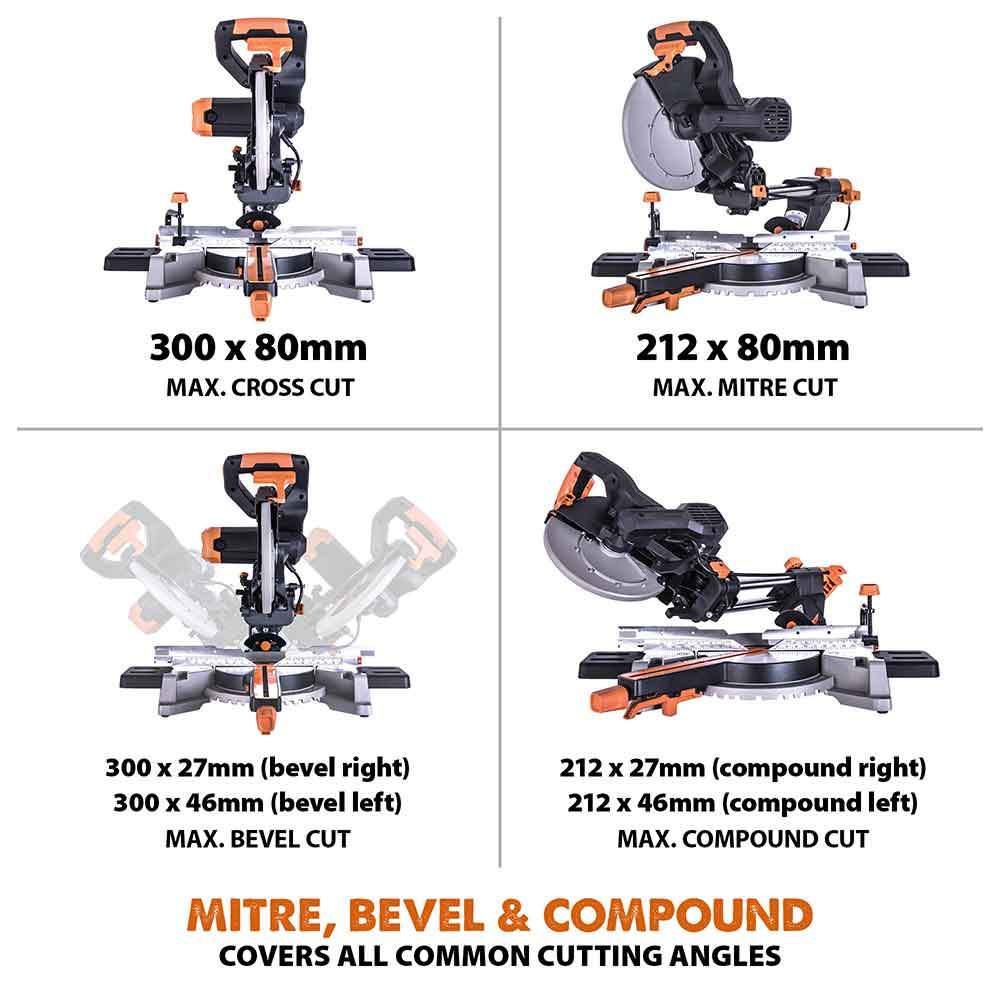

| Max. Cross Cut (0° x 0°): | 300mm x 80mm |
| Max. Bevel Cut (0° x 45°): | 300mm x 46mm |
| Max. Mitre Cut (45° x 0°): | 212mm x 80mm |
| Max. Compound Cut (45° x 45°): | 212mm x 46mm |

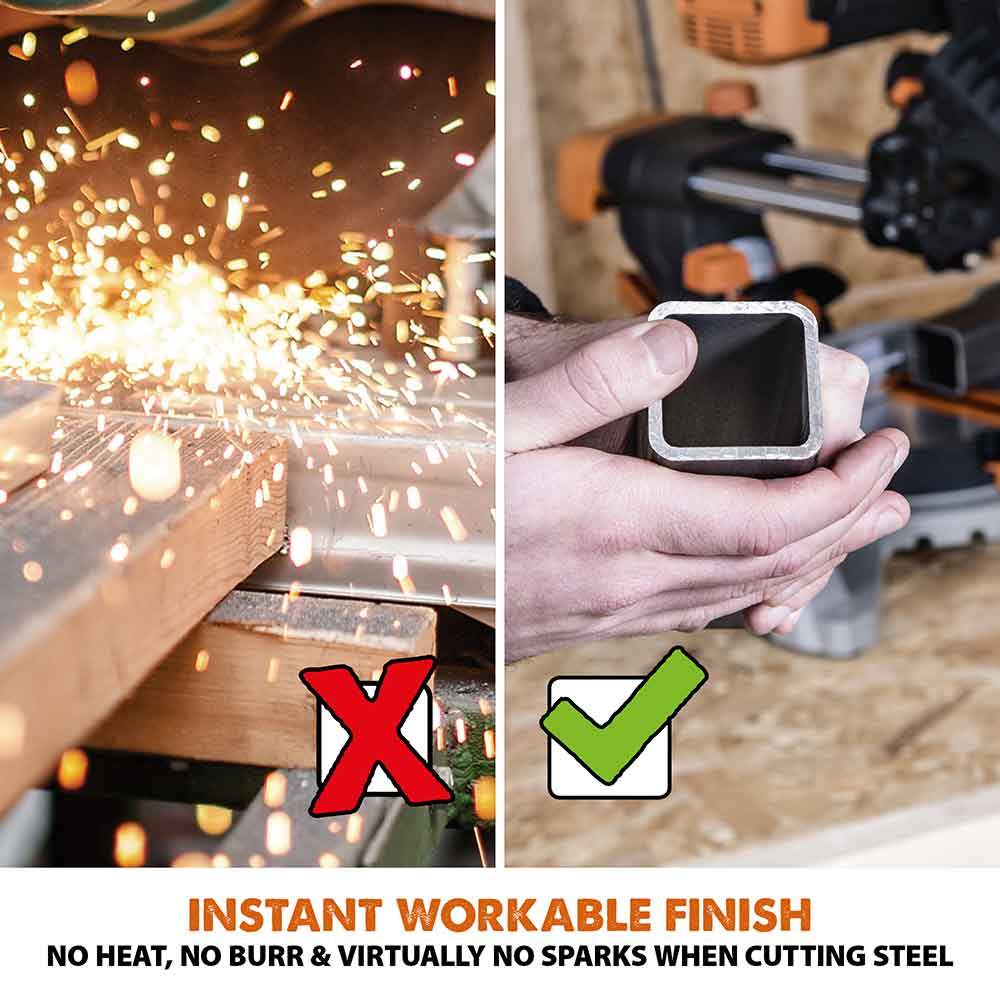

| Mild Steel Plate (Max. Thickness): | 6mm |
| Mild Steel Box Section (Max. Wall Thickness): | 3mm |
| Product Dimensions: | 740mm x 705mm x 460mm |
| Packaging Dimensions: | 570mm x 545mm x 385mm |
| Product Weight: | 17.1 kg |
| Packaged Weight: | 20.5 kg |
| Sound Pressure Level LPA: | 110V: 96.4 dB(A) / 220-240V: 96.9dB(A) |
| Sound Power Level LWA: | 110V: 109.4 dB(A) / 220-240V: 109.9dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
| Laser Class: | Class 2 |
| Laser Source: | Laser Diode |
| Laser Output Power (Max): | <1mW |
| Wave Length (Nm): | 650 |
Items Included
| Machine Table Extensions | Double Ended Hex Key (M6 & M5) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp | Self Tapping Cap Screw |
| Socket Headed Screws | Cable Clamp Component |
| Laser Lens Cap | Double Ended Cable Clip |
| Carry Handle | Slide Rail Protector |
| Hold Down Clamp | 255mm 24 Tooth Blade |
Compatible With

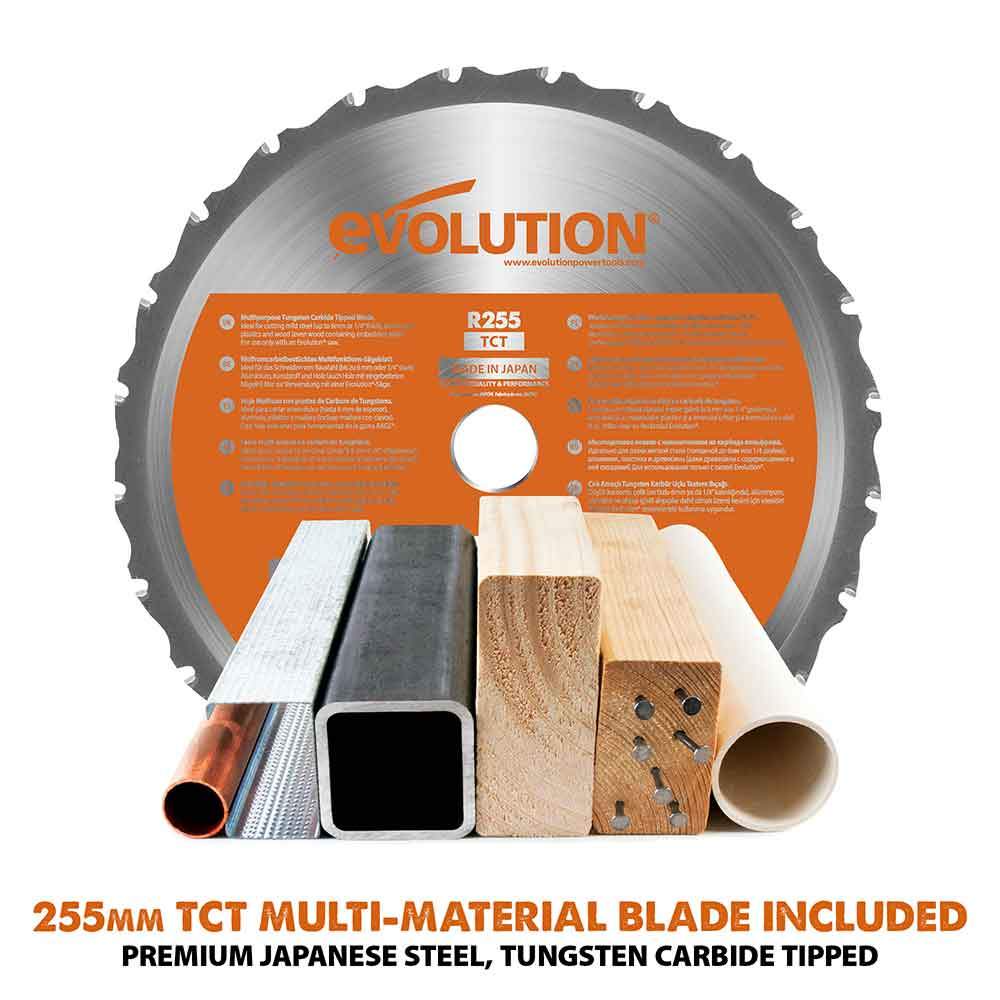

255mm Multi-Material Cutting TCT Blade255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
