Evolution S185CCSL 185mm Metal Cutting Circular Saw with TCT Mild Steel Cutting Blade

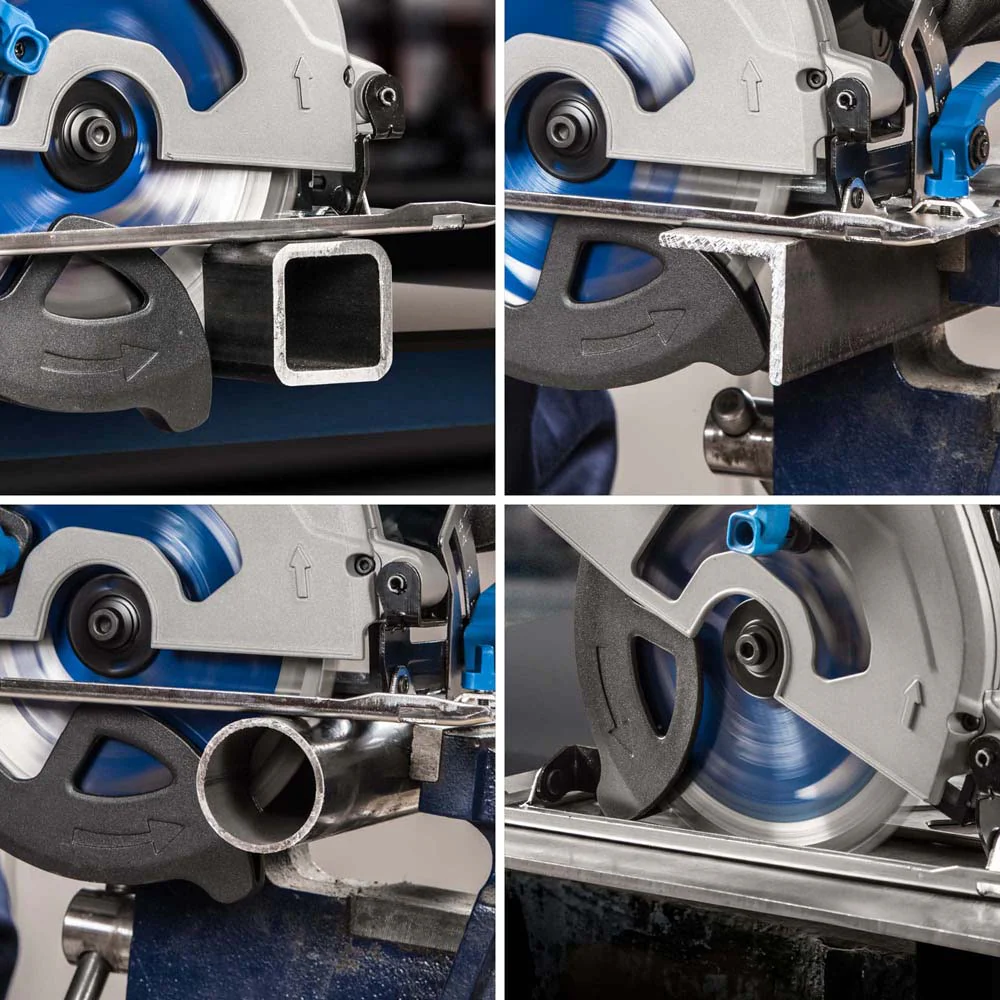

Slice through bar, angle, profiled tube and sheet metal in seconds with the S185CCSL metal cutting circular saw. Faster and cleaner than an abrasive cutter the S185CCSL gives your ready to weld cuts that are cold enough to handle straight off the saw.
Recognised as the metalwork fabricator's friend the S185CCSL has been tested back to back against band saws, grinders and even plasma cutters and it comes out on top each time for speed of cut and ease of use.
Additional blades, each specifically designed to offer maximum cutting performance with different metals such as stainless steel, aluminium, mild steel and other thin sheet steel grades are available to help you find the perfect cut for every project. The S185CSL is a compact powerhouse with a 1600 Watt rated motor, adjustable bevel and depth of cut. Our customers show it comfortably powering through half inch mild steel plate and leaving a plasma cutter in its tracks.
If your sick of the daily grind, tired of waiting for your plasma cuts to be cool enough to handle and having to clean off slag, splatter and rag ends before final assembly then you should get to grips with the S185CCSL.
Features

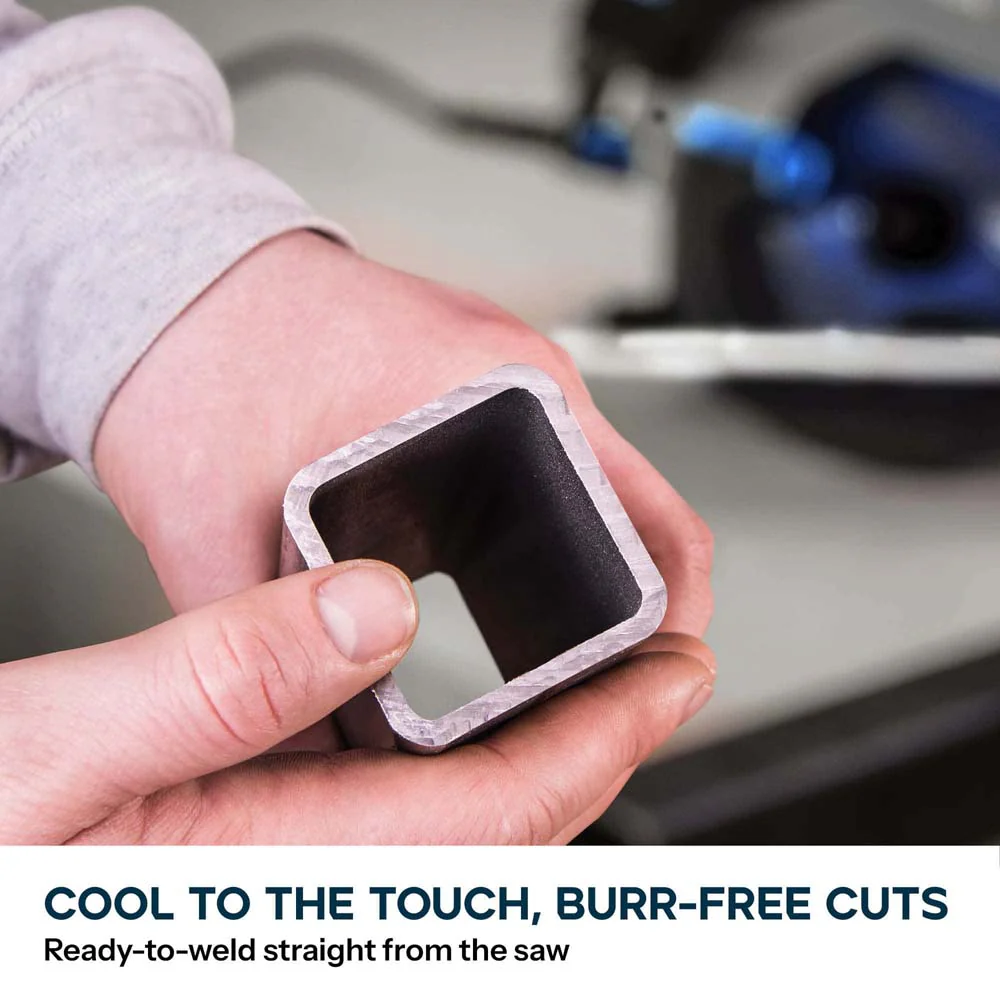

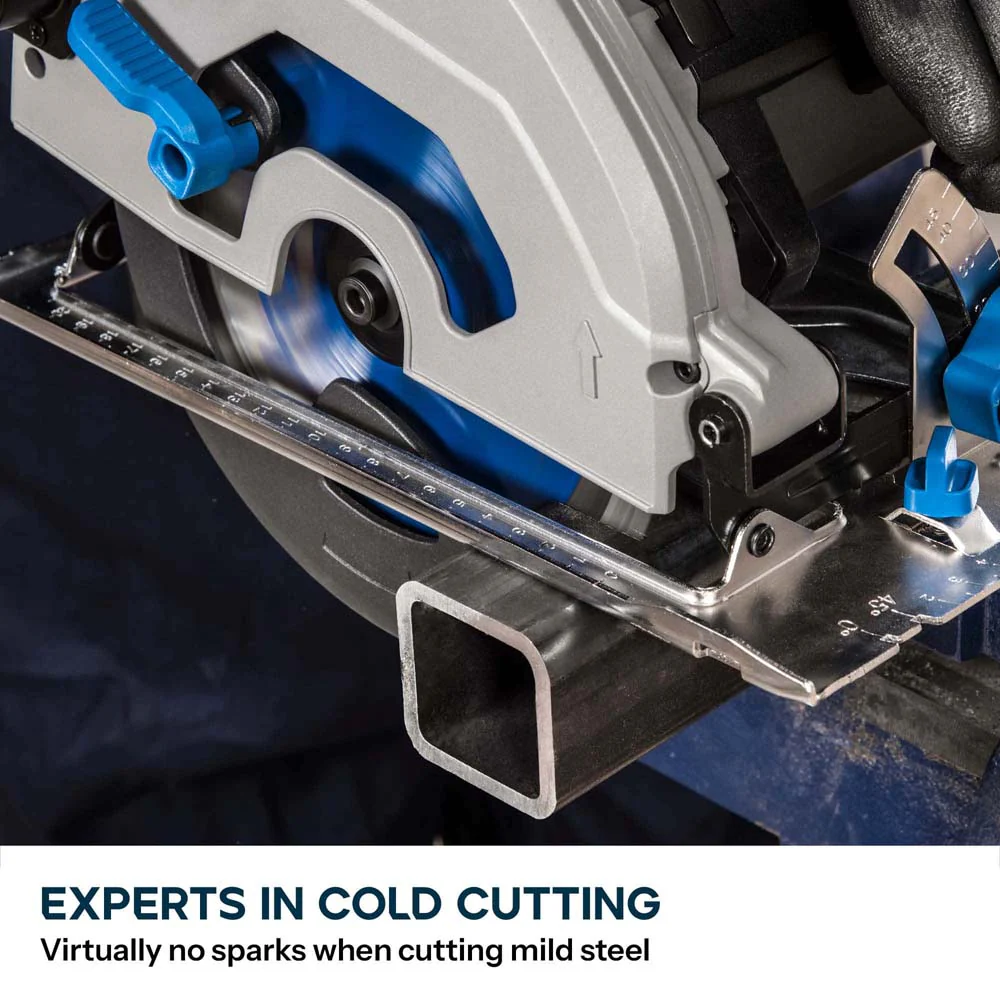

- Equipped with a 185mm, 40 tooth mild steel capable blade. Providing an instantly workable finish and produces virtually no heat, no burr, and no sparks.

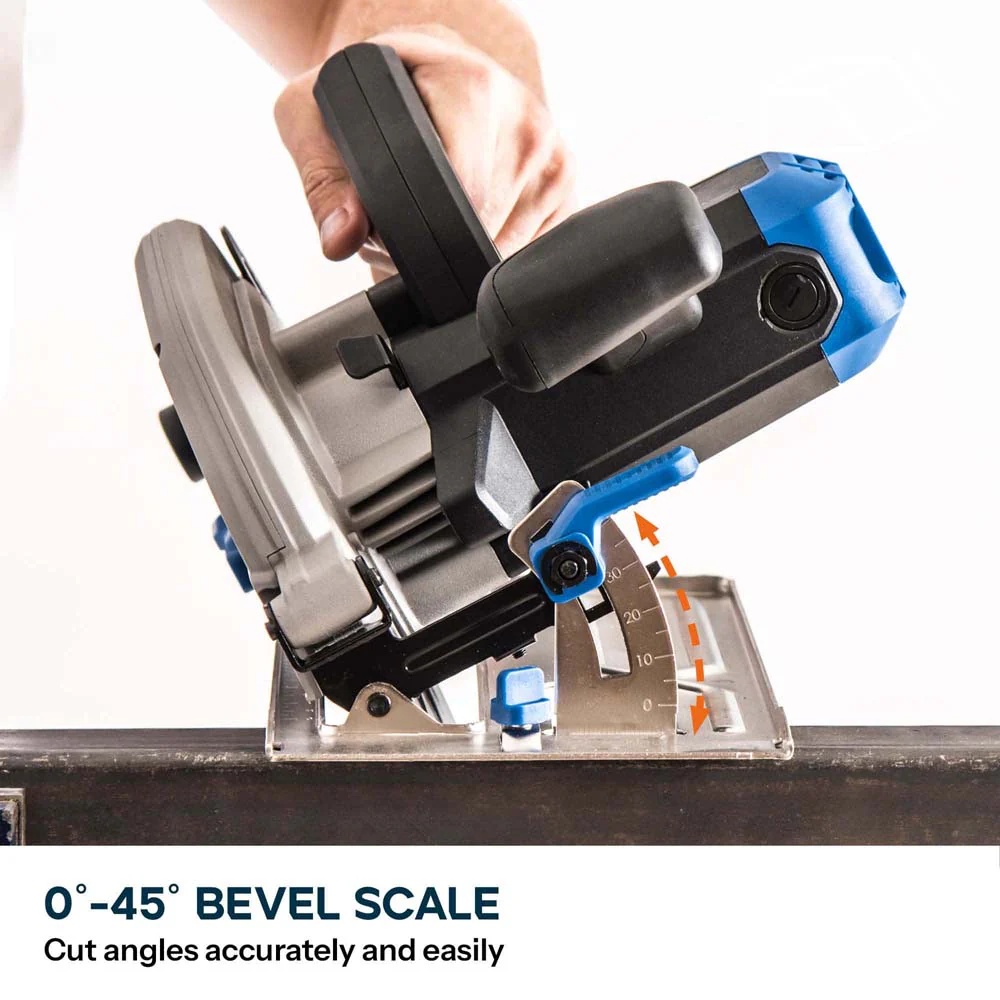

- The paddle levers allow you to easily adjust the base plate to perform up to 45° accurate bevel cutting.

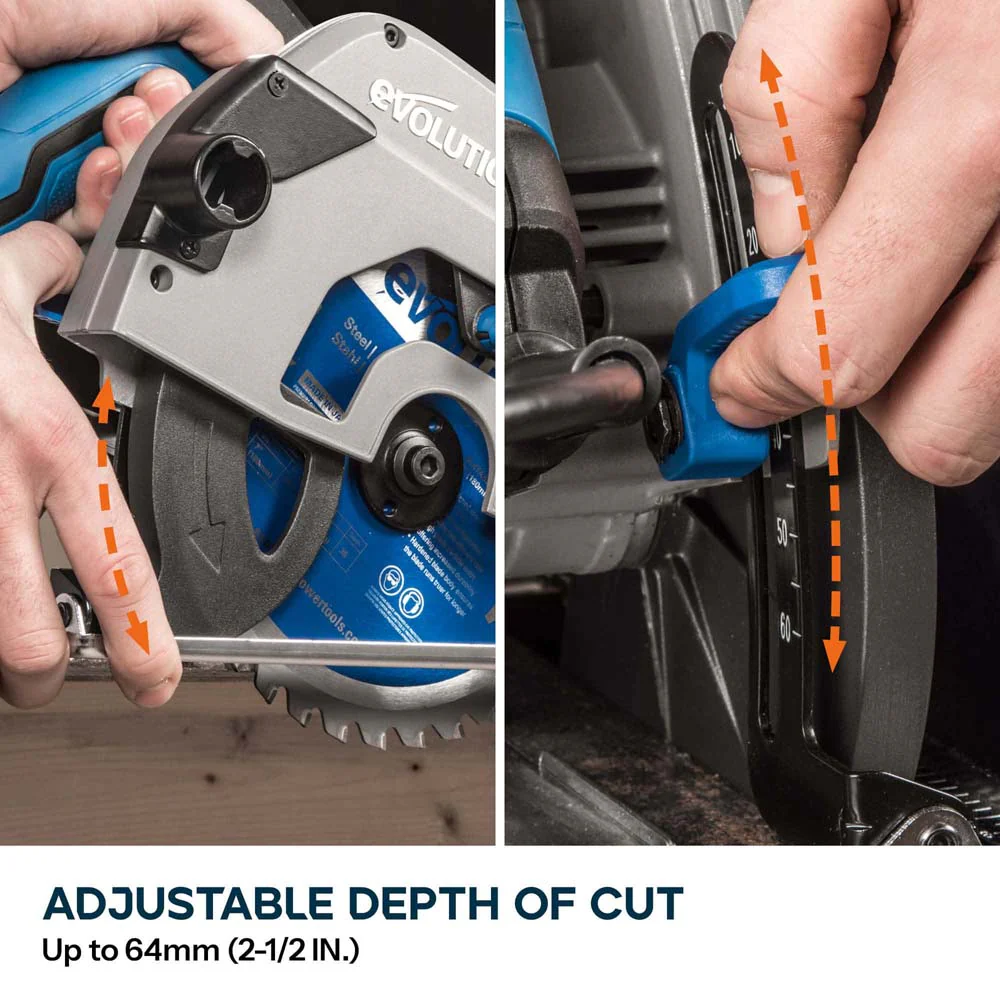

- Adjusting the rear paddle lever enables you to set the base plate in a higher position giving you a cutting capacity up to 2-1/2 inches.

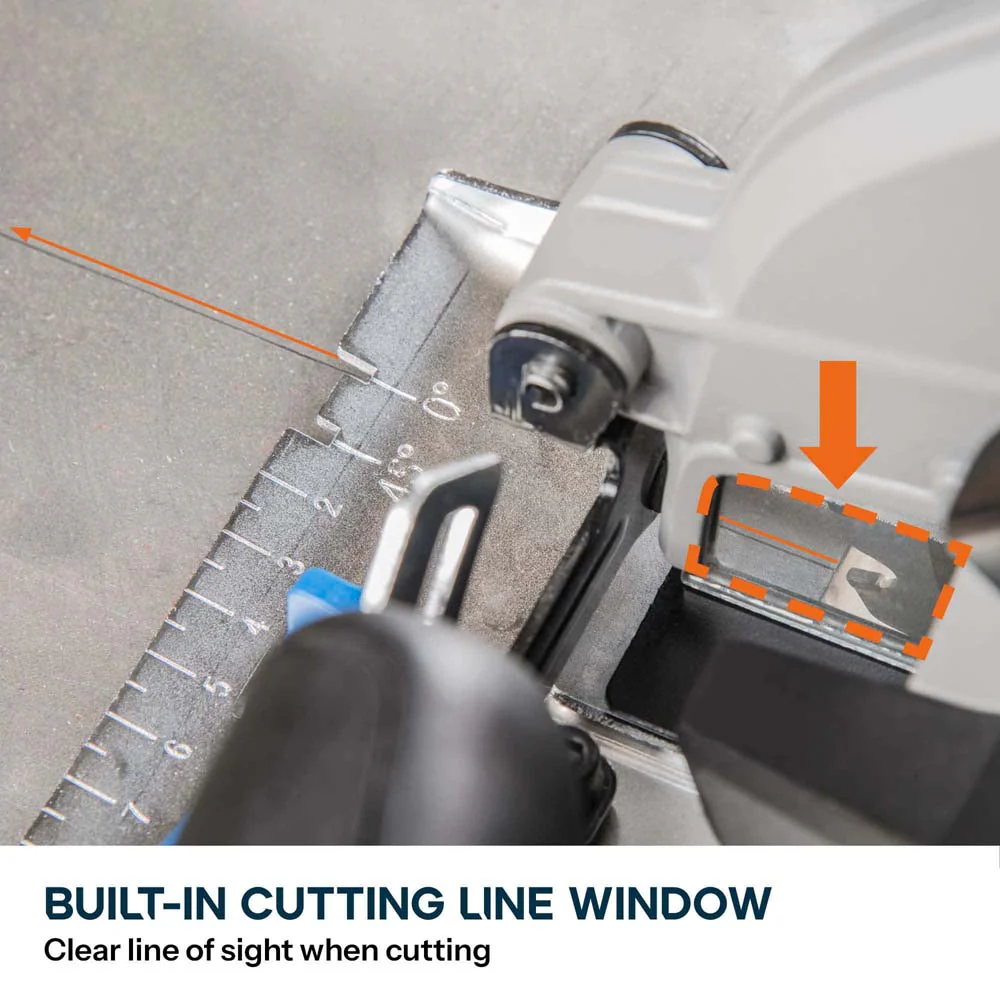

- Fitted with a clear glass window you can see when standing in the normal cutting position where the blade meets the material being cut, ensuring your blade is exactly aligned with the cutting line.
- Channeled air-flow directs air to the cutting line, clearing it from any debris.
- A parallel edge guide is provided for even greater straight cutting assistance.

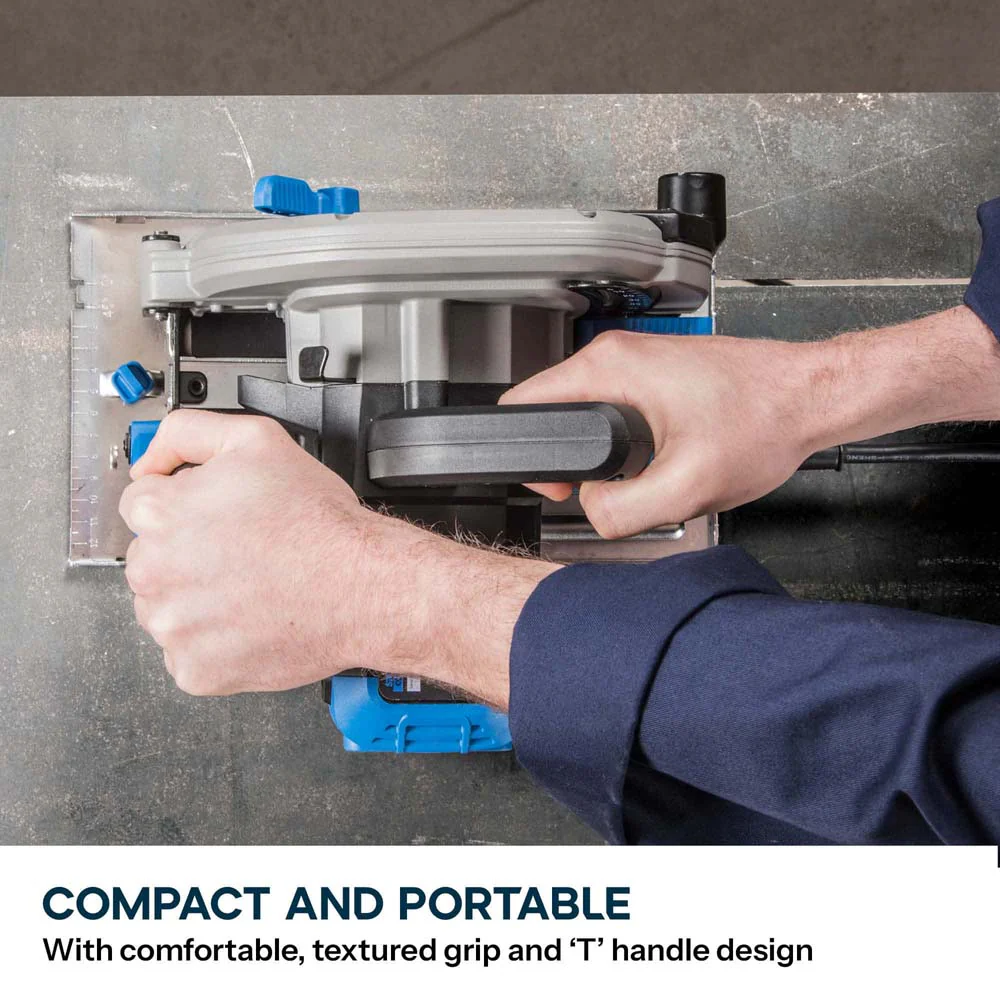

- One of the lightest circular saws on the market, weighing only 11.4 lbs, transforms heavy-duty cutting into faster, easier and safer productivity.

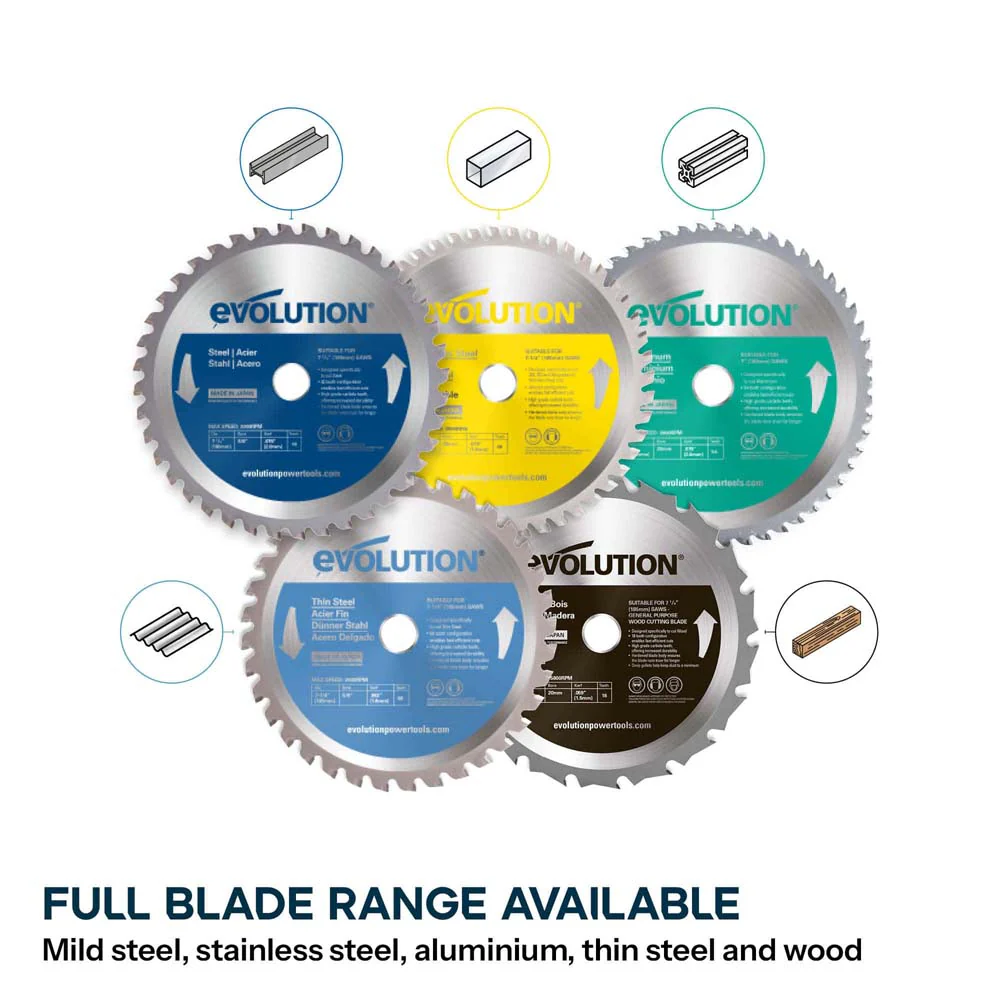

- Cut mild steel, stainless steel, aluminum and wood with the optional premium blades available.
Specifications
| Motor (110v, 220v - 240v): | 1600W |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Pressed Steel |
| Cord Length: | 3m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 40 |
| Bore: | 20mm |
| Kerf: | 2mm |

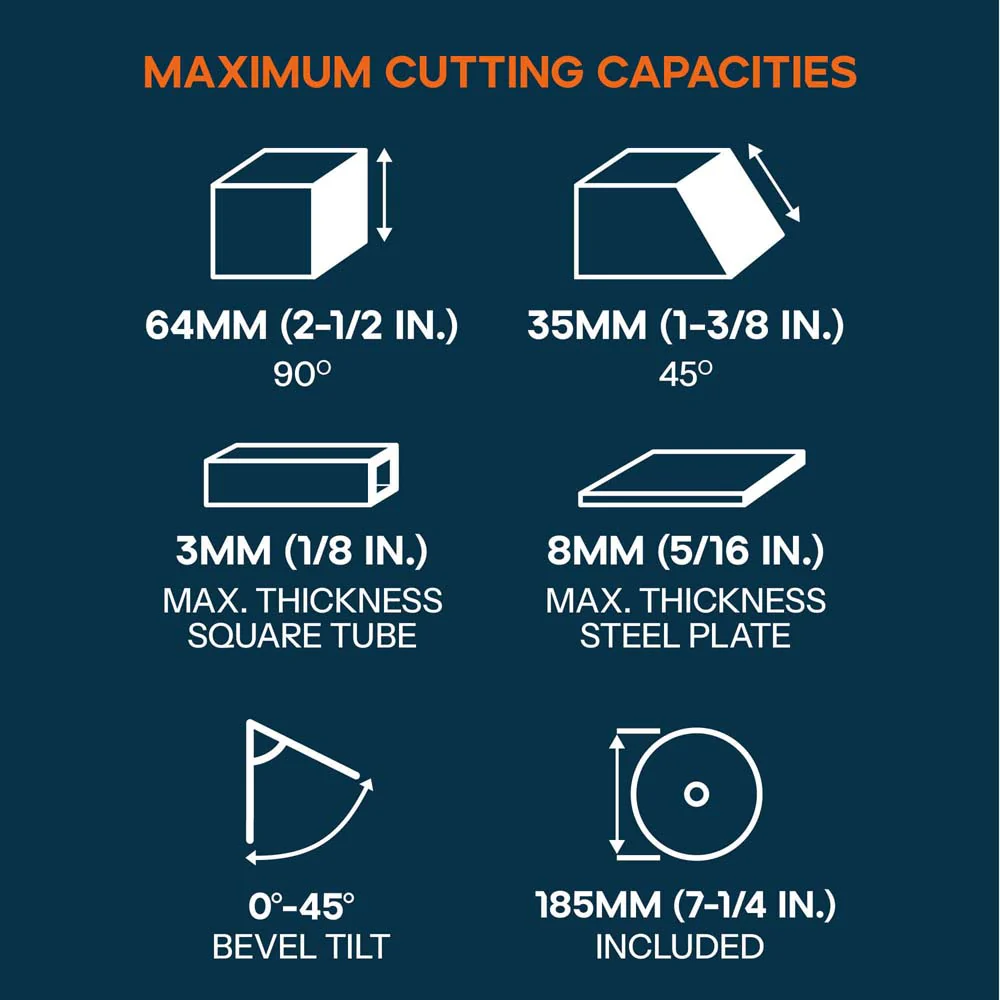

| Max. Depth of Cut (0°): | 64mm |
| Max. Depth of Cut (45°): | 35mm |
| Mild Steel Plate (Max. Thickness): |
8mm |
| Mild Steel Square Tube (Max. Wall Thickness): | 3mm |
| Product Dimensions: | 255 x 308 x 241mm |
| Packaging Dimensions: | 230 x 368 x 279mm |
| Product Weight: | 5.2 kg |
| Sound Pressure Level LPA: | 92.9 dB(A) K:3 B(A) |
| Sound Power Level LWA: | 103.9 dB(A) K:3 dB(A) |
| Vibration: | ahM=3.041m/s2 ahW=3.697m/s2 |
Compatible With
185mm Blades
