Evolution R255SMS 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade
This product is only for display purposes, it is not available for sale

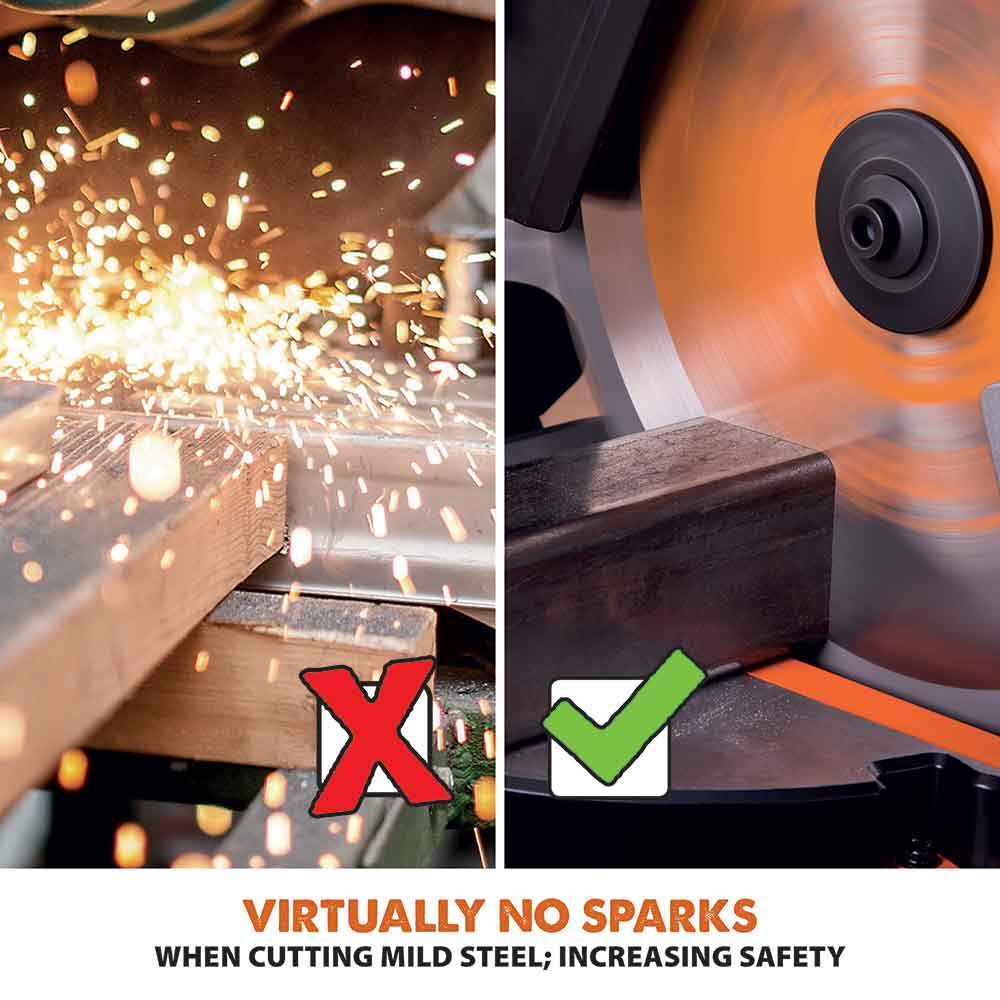

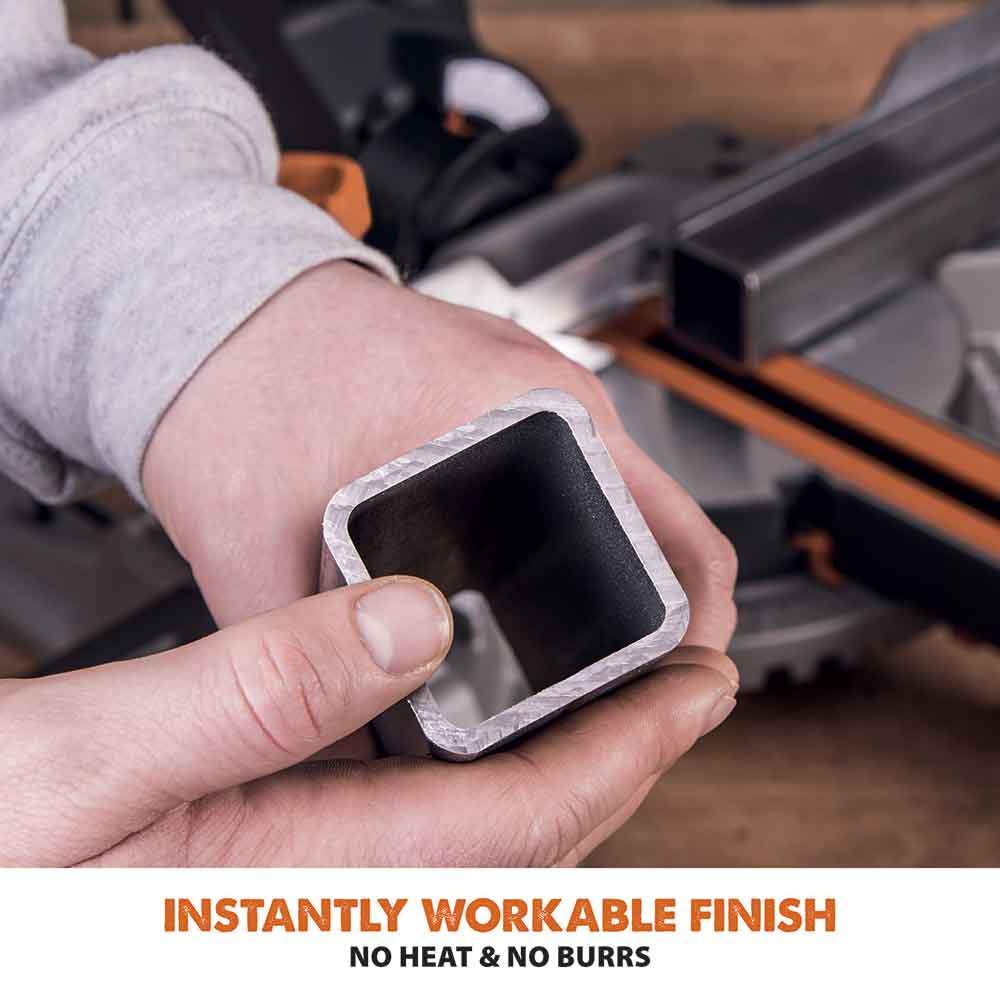

Utilising Evolution's patented multi-material cutting technology. New & improved from its 'RAGE3' predecessor, the R255SMS sliding mitre saw is optimised to cut mild steel, non-ferrous metals, wood, even wood with embedded nails and plastic with one blade. No blade changes = Faster work! Perfect for any trade & DIY enthusiast.

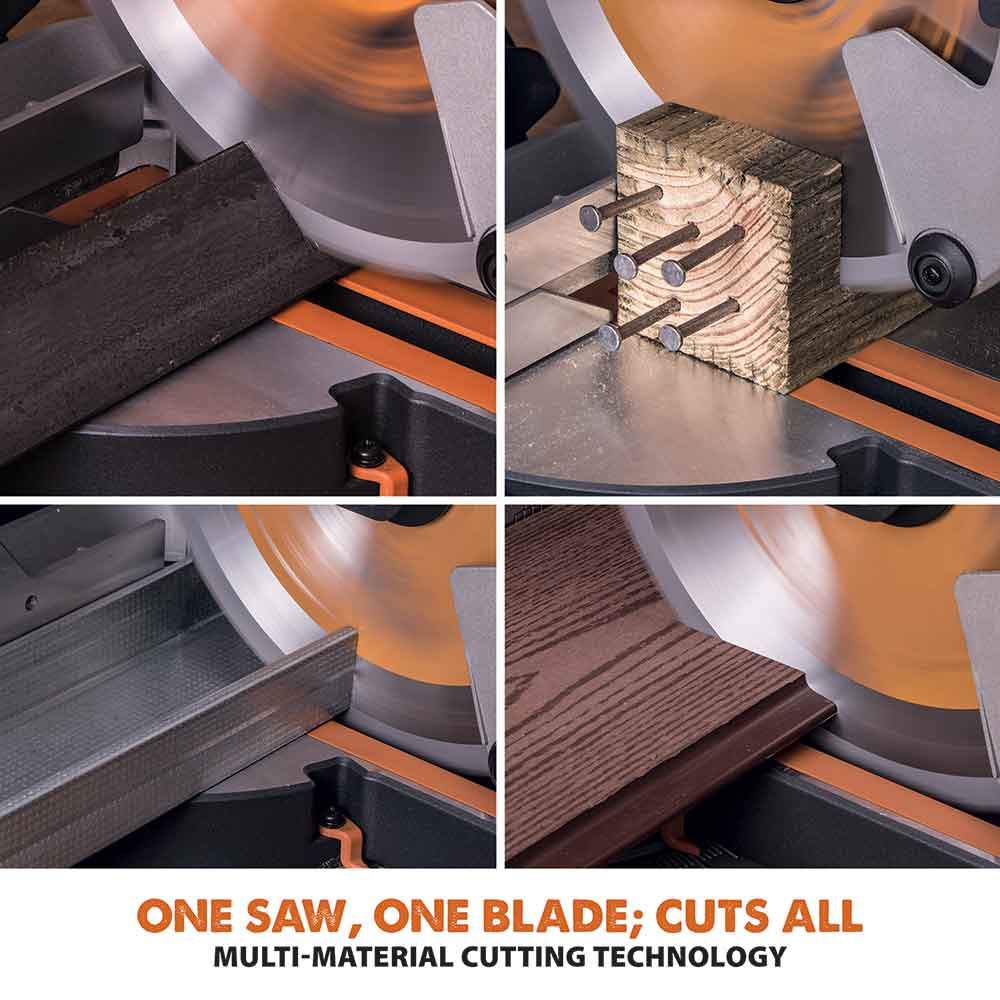

- Multi-Material cutting technology. One saw, one blade, cuts all.*

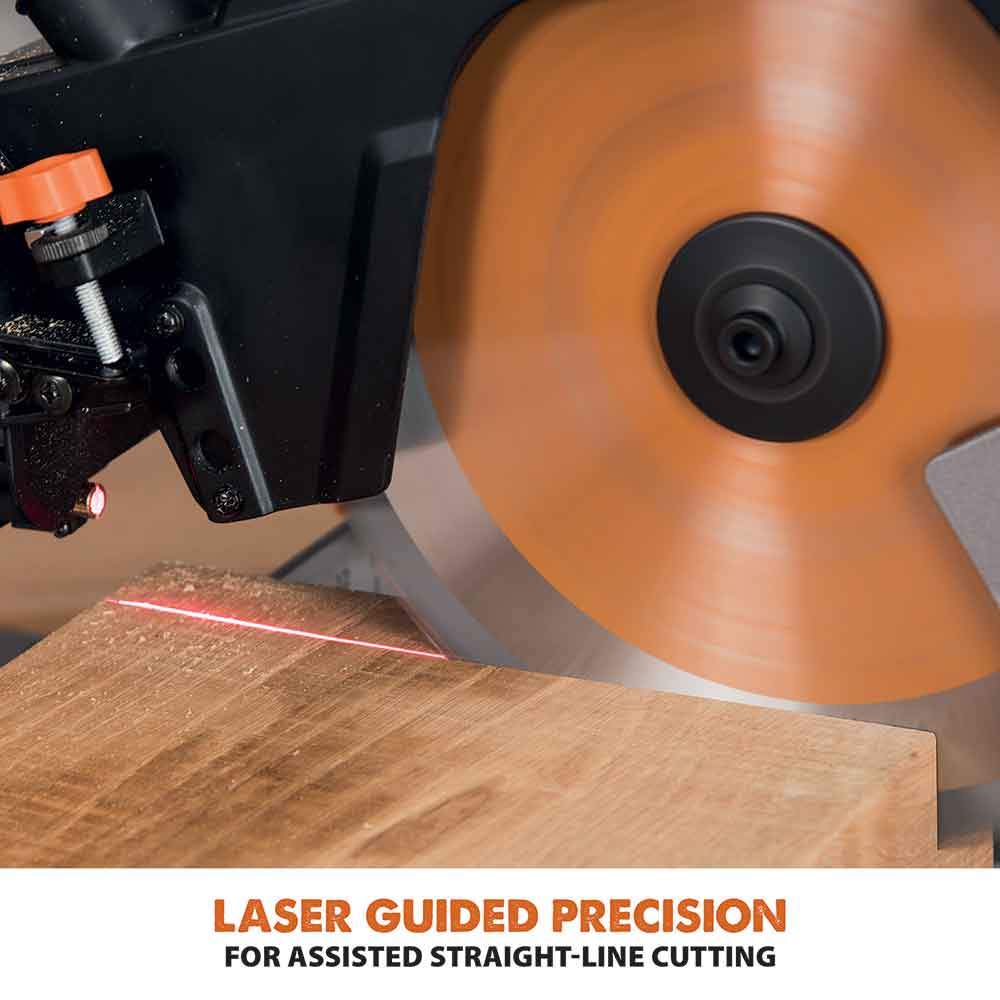

- Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.

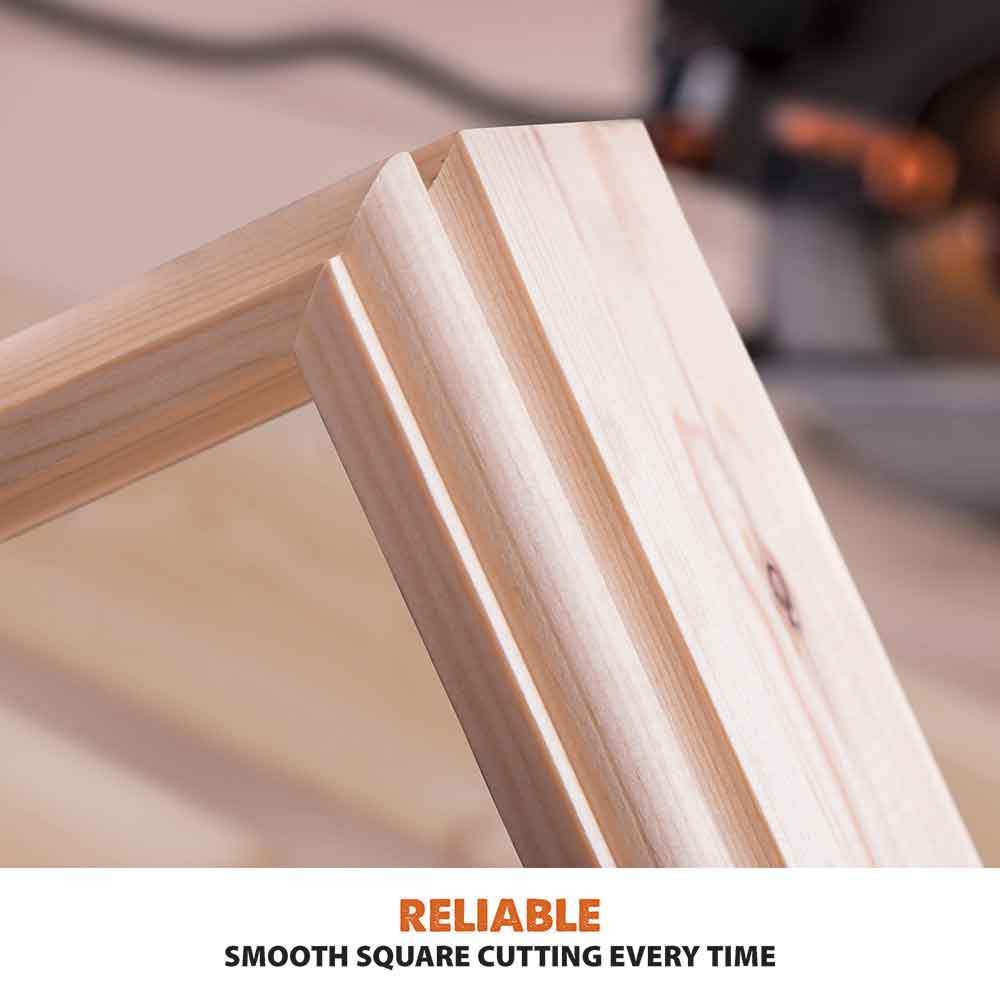

- Smooth, square, reliable cutting every time in a variety of materials.

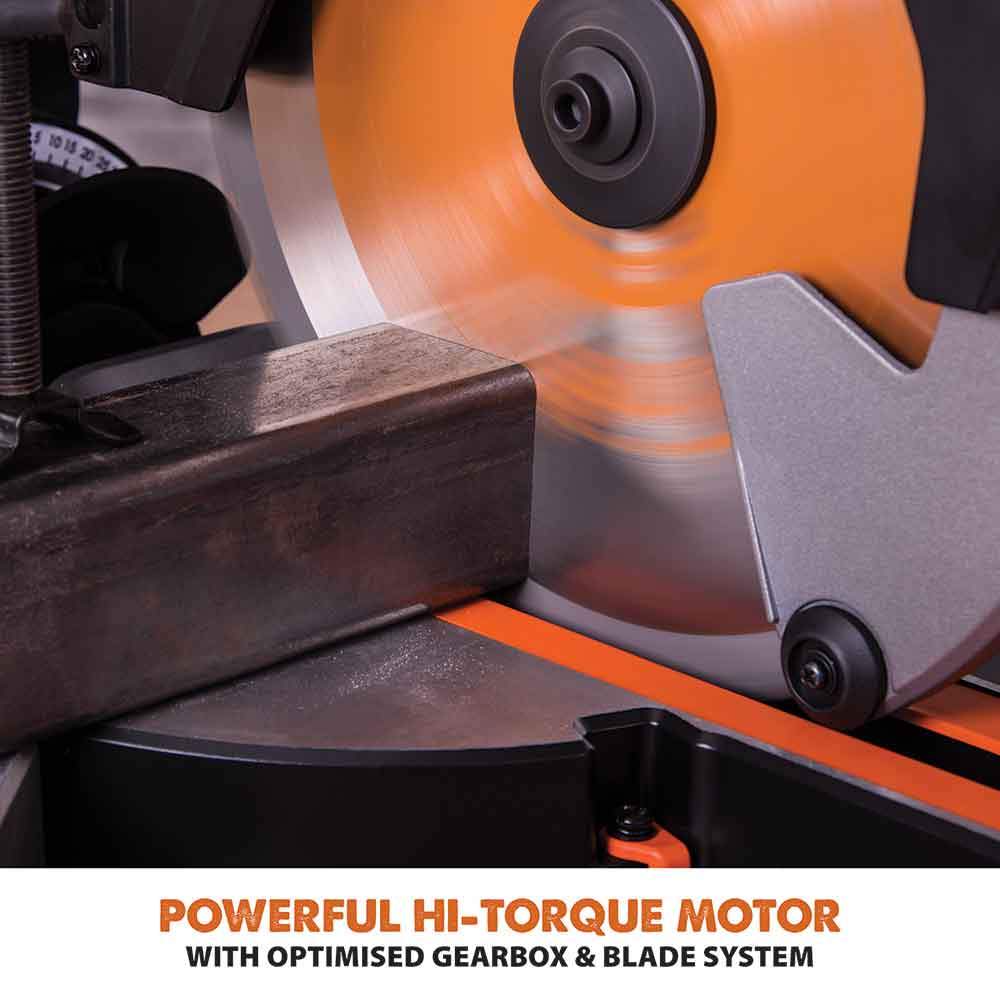

- Powerful 2000W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.

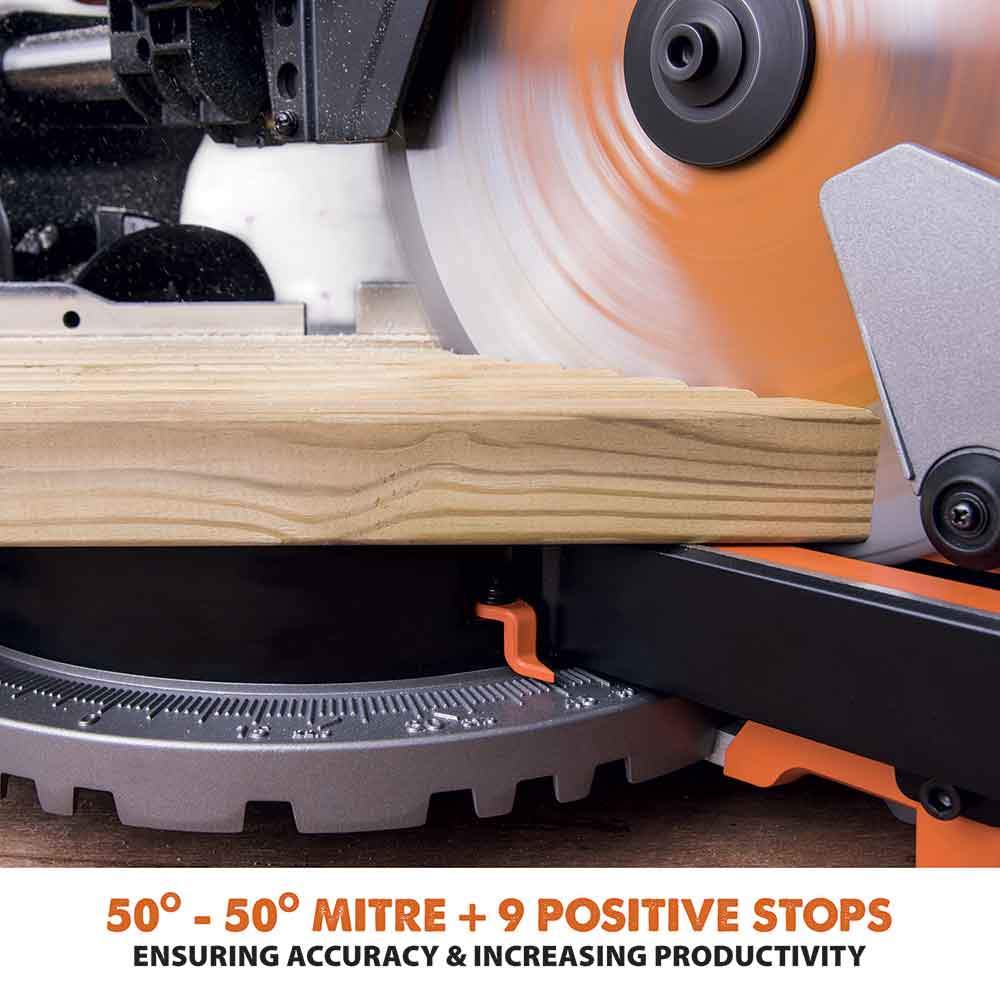

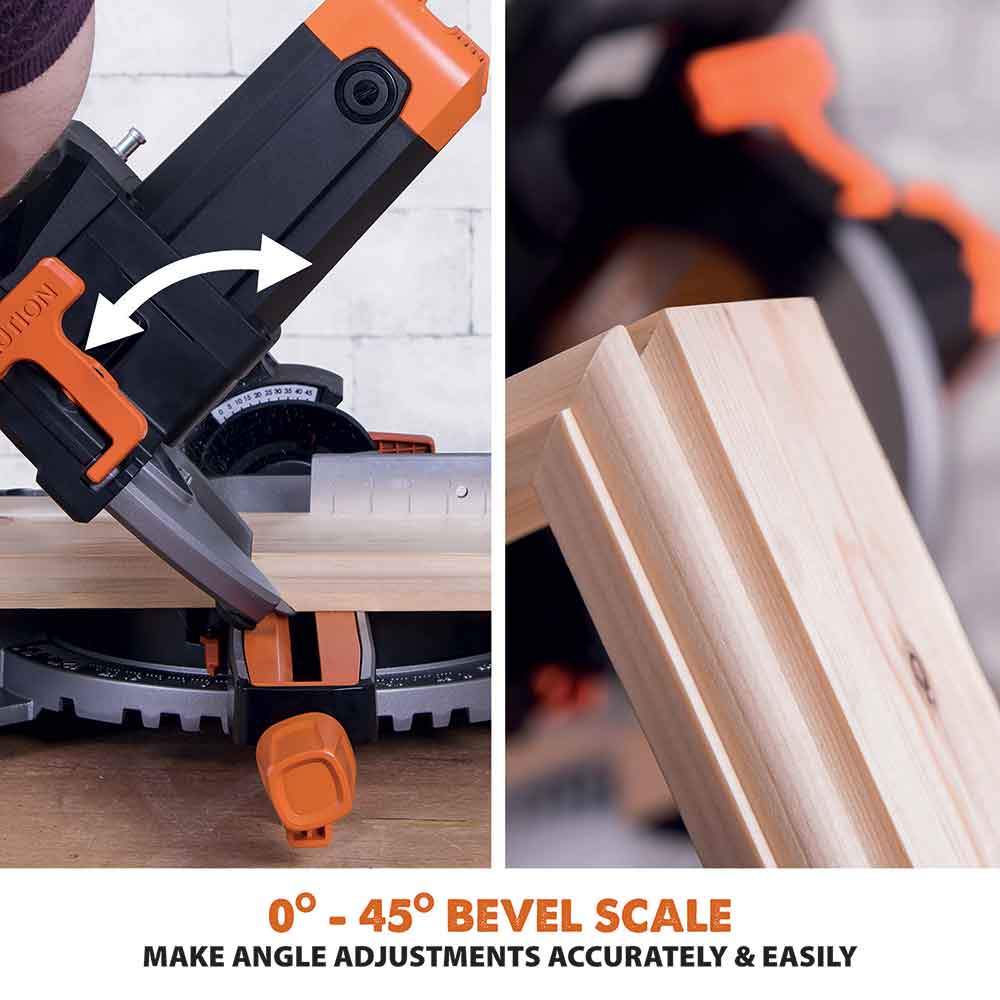

- Cuts to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ mitre both left and right to perform precise bevel, mitre and compound cutting.

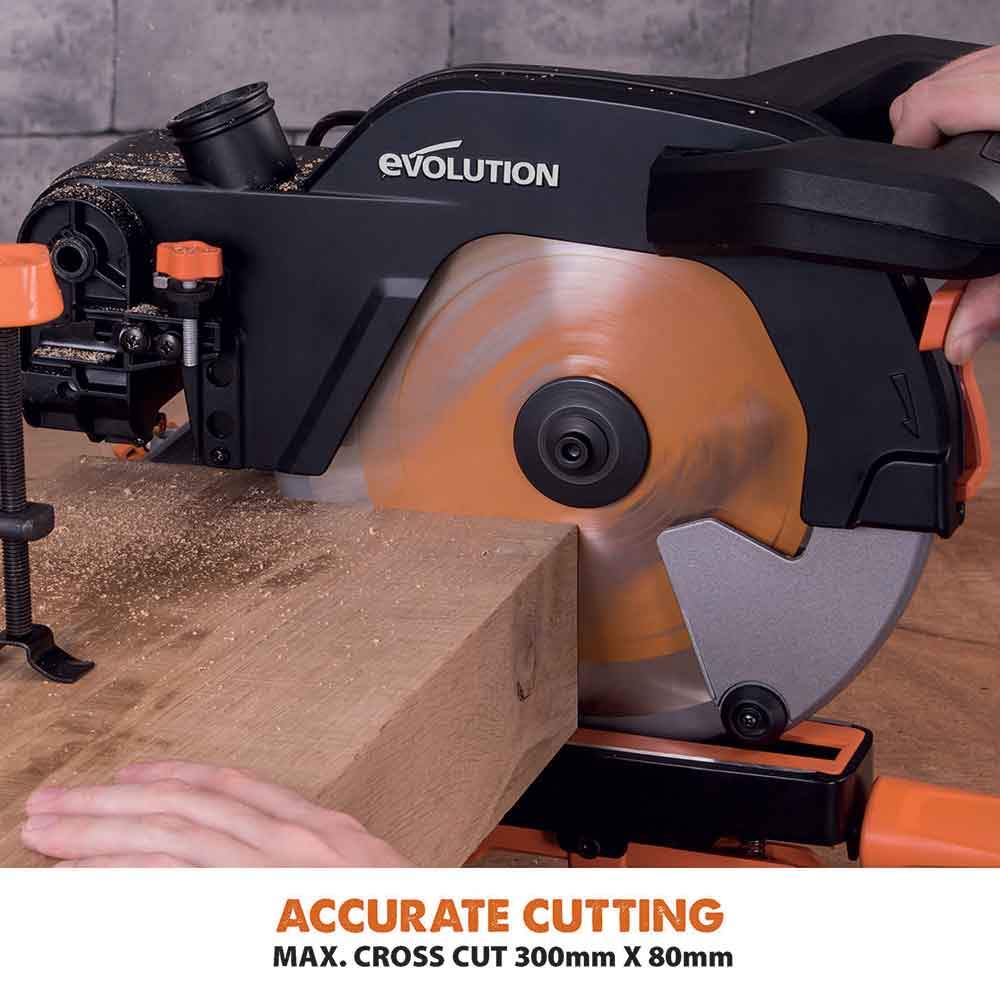

- A huge crosscut capacity enables you to trim skirting boards, cornices, boards, decking and more up to 300mm x 80mm.

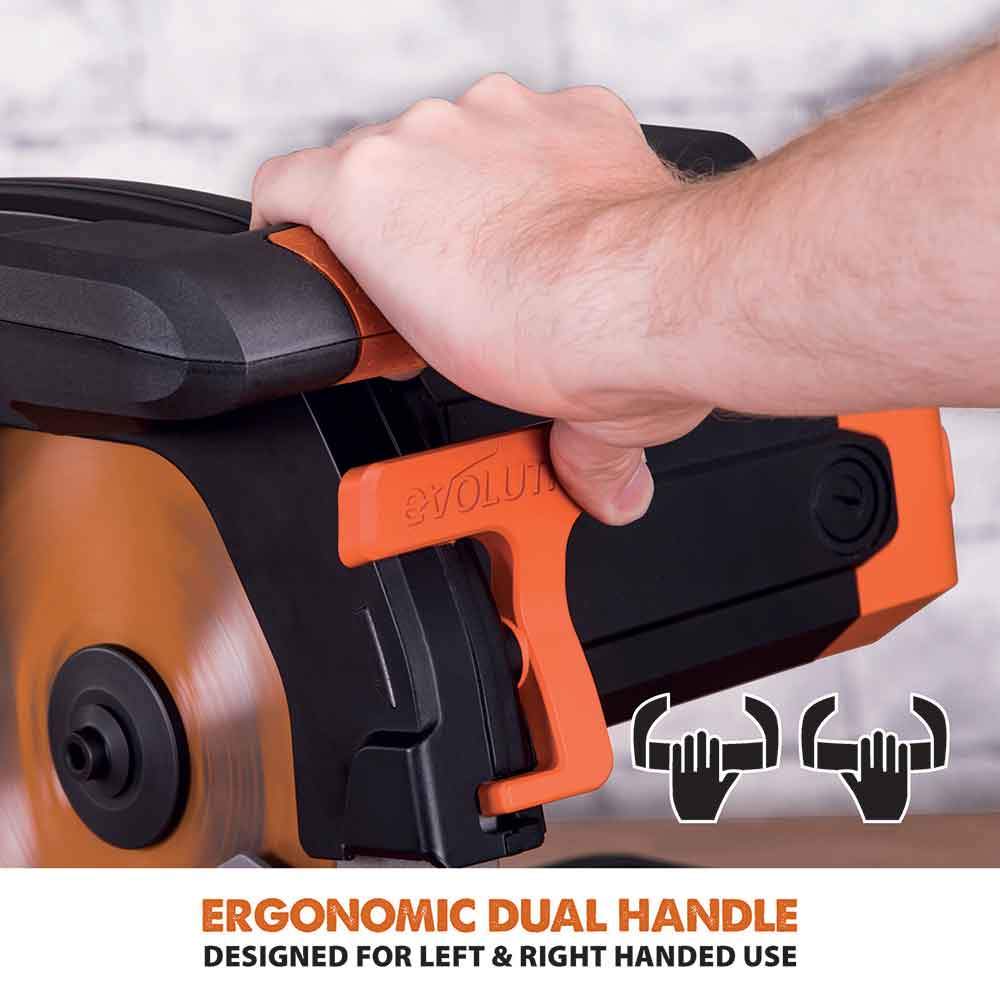

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.

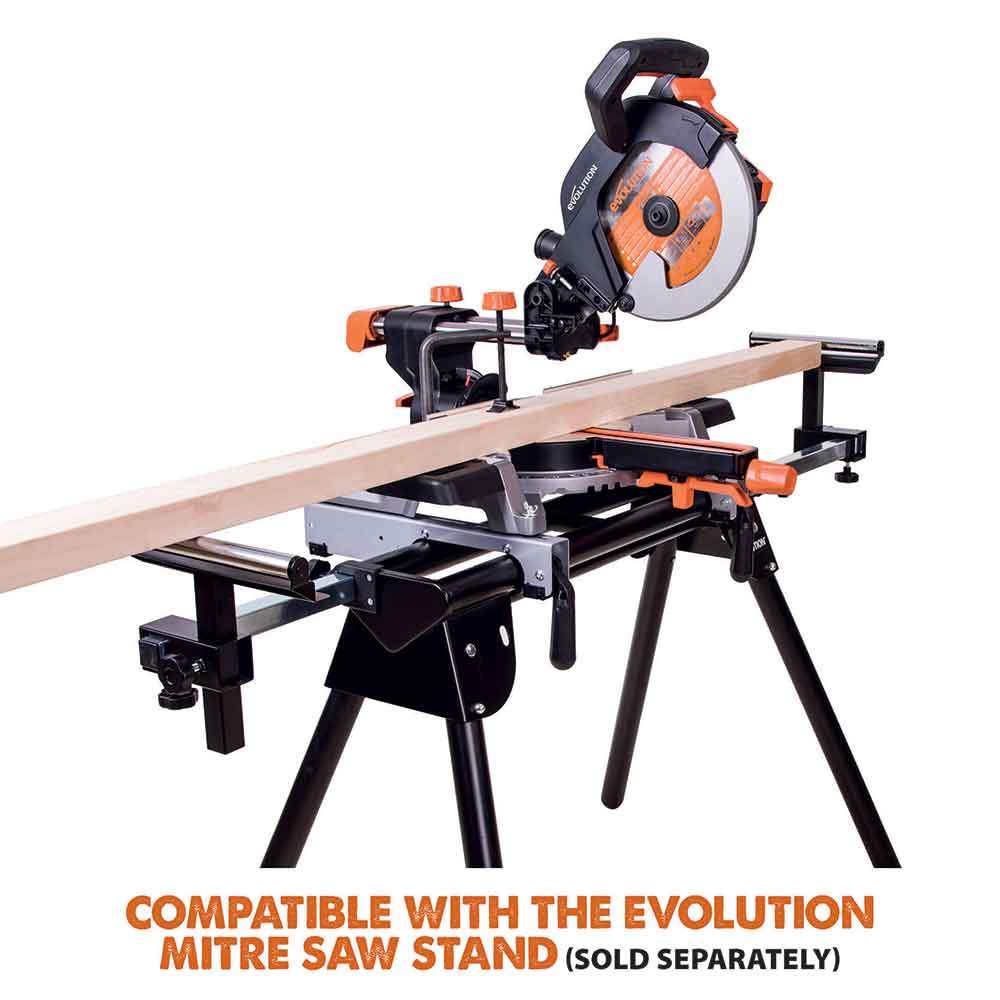

- Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.

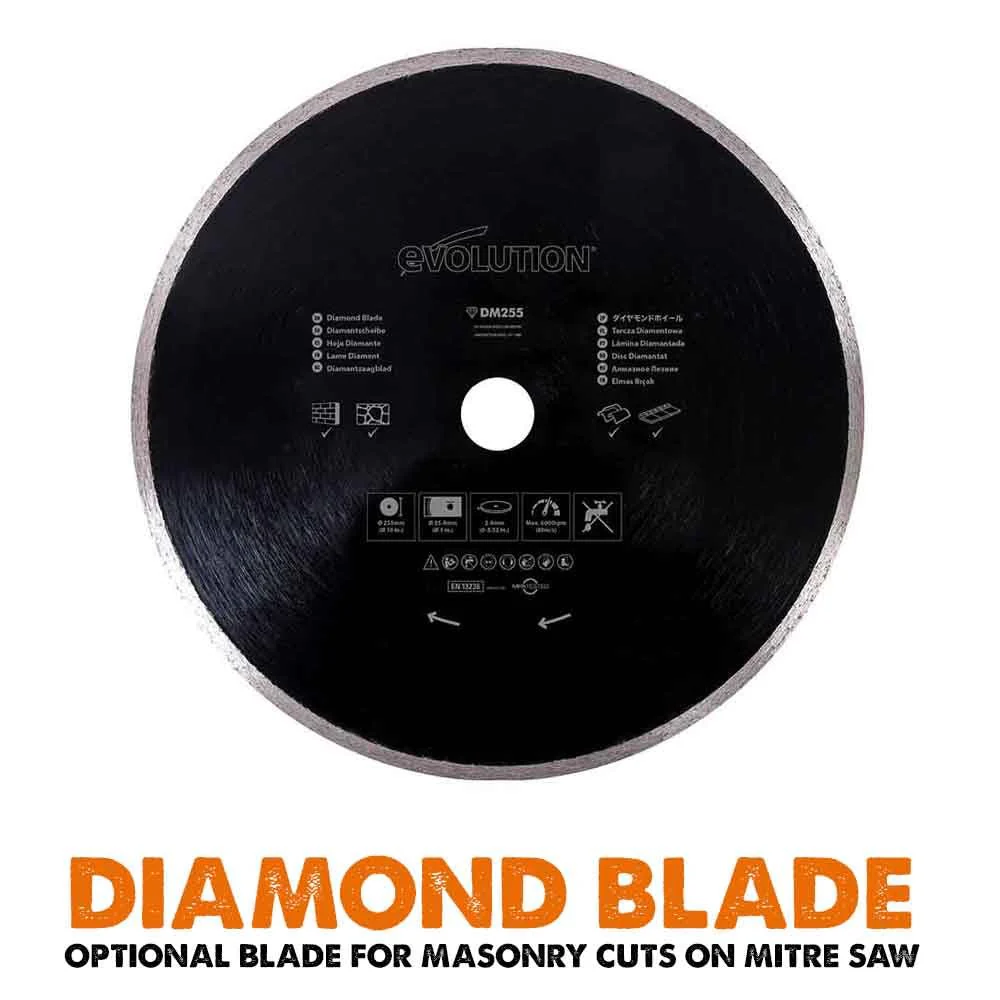

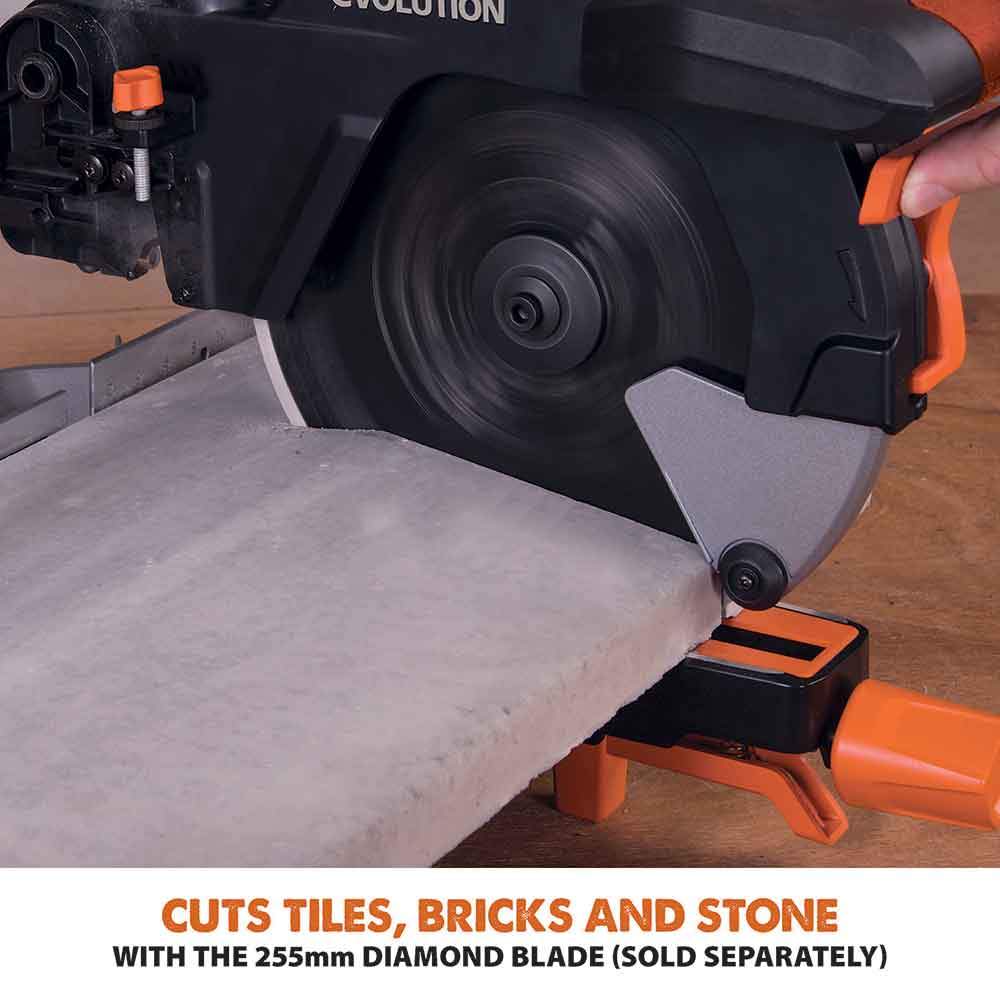

- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 2000W |
| Speed No Load: | 2500 rpm |
| Max. Mitre: | 50° - 50° |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |

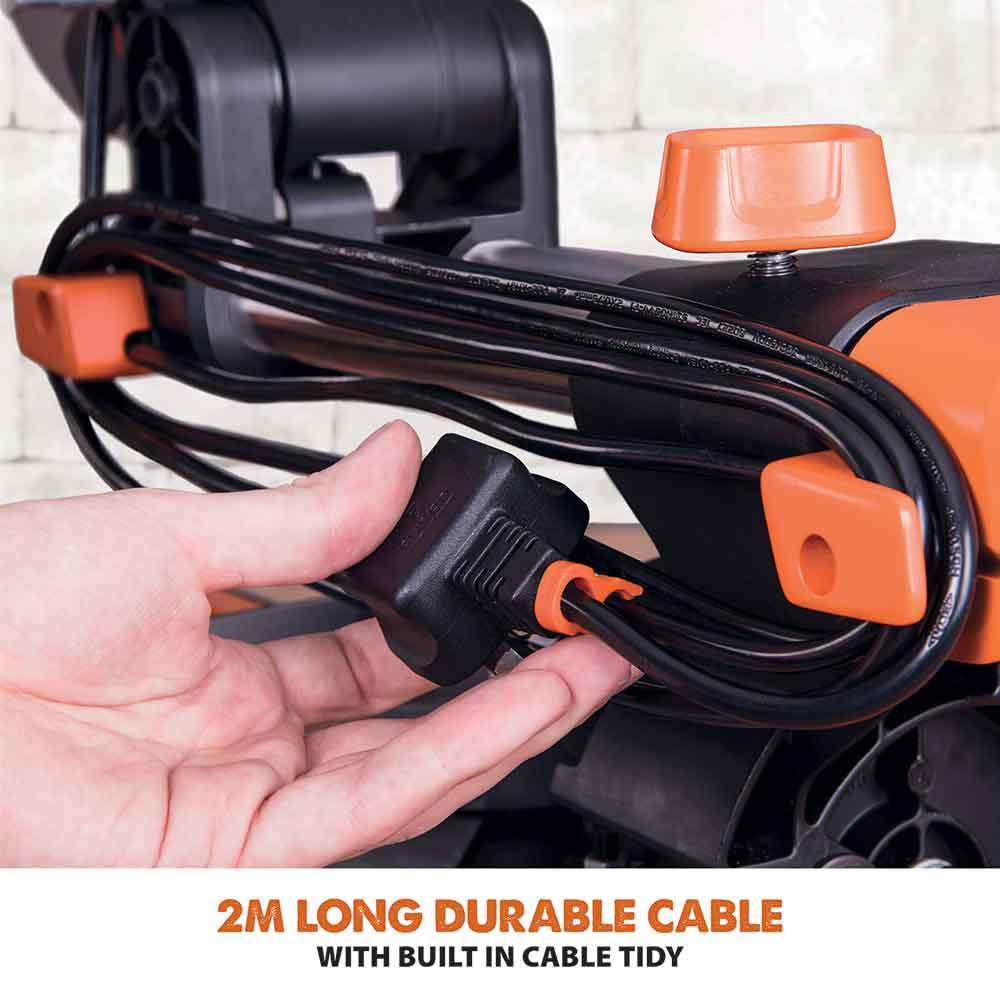

| Cable Length: | 2m |

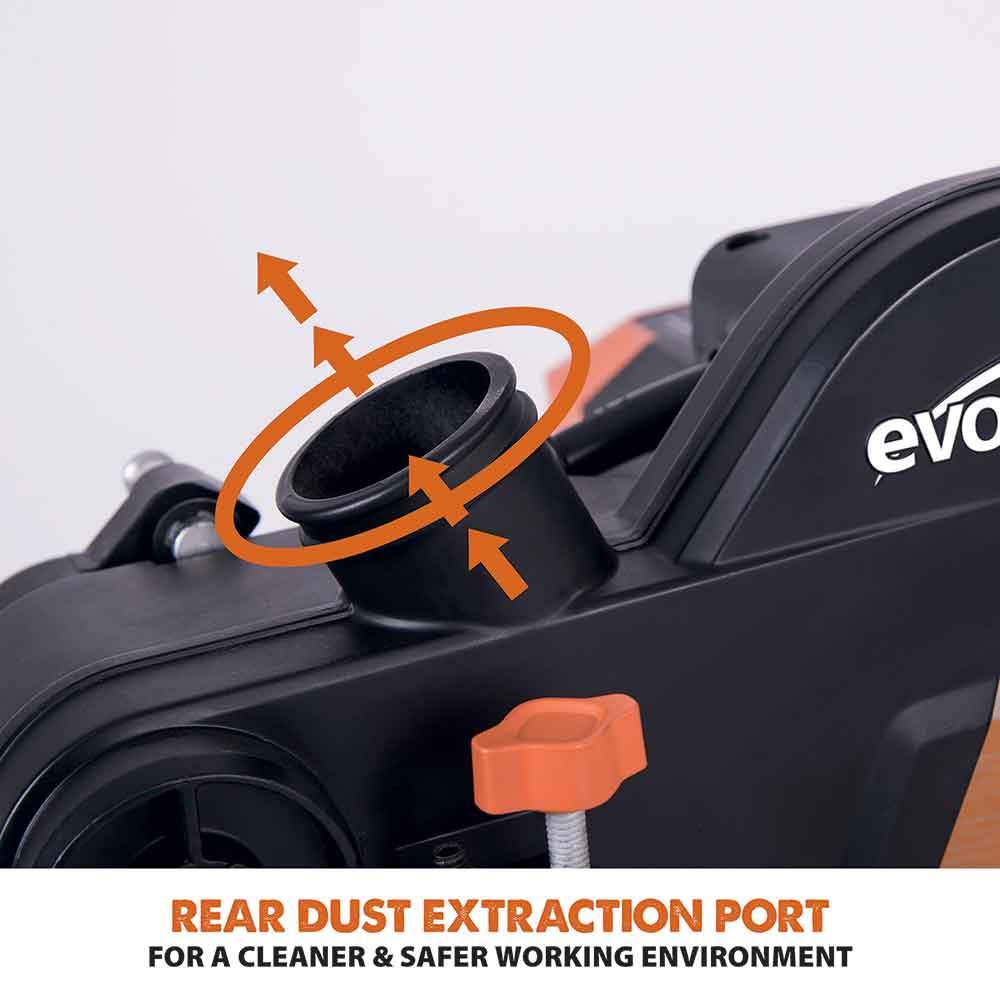

| Dust Port Diameter: | 36mm |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |

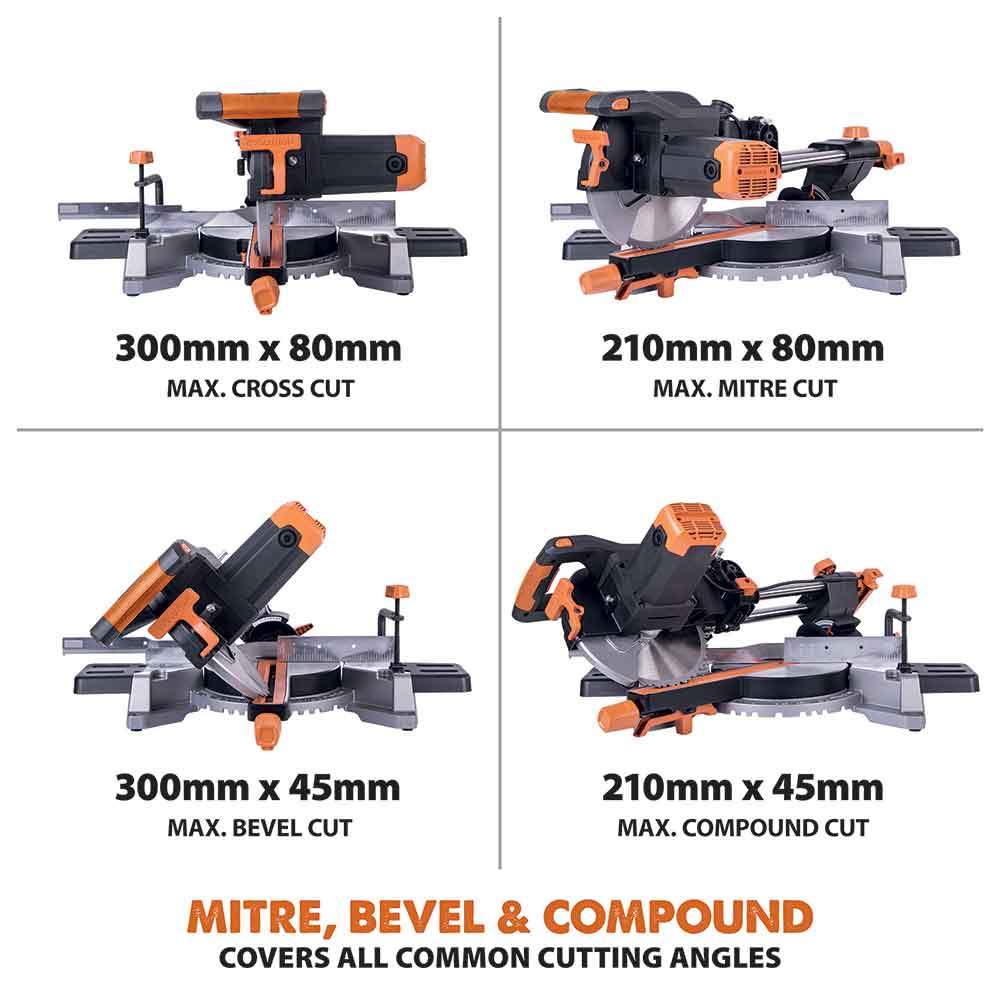

| Max. Cross Cut (0° x 0°): | 300mm x 80mm |
| Max. Bevel Cut (0° x 45°): | 300mm x 45mm |
| Max. Mitre Cut (45° x 0°): | 210mm x 80mm |
| Max. Compound Cut (45° x 45°): | 210mm x 45mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 360mm x 705mm x 730mm |
| Packaging Dimensions: | 565mm x 365mm x 520mm |
| Product Weight: | 15.3 kg |
| Packaged Weight: | 17.6 kg |
| Sound Pressure Level LPA: | 95,8dB(A) K:3dB(A) |
| Sound Power Level LWA: | 108,8dB(A) K=3 dB(A) |

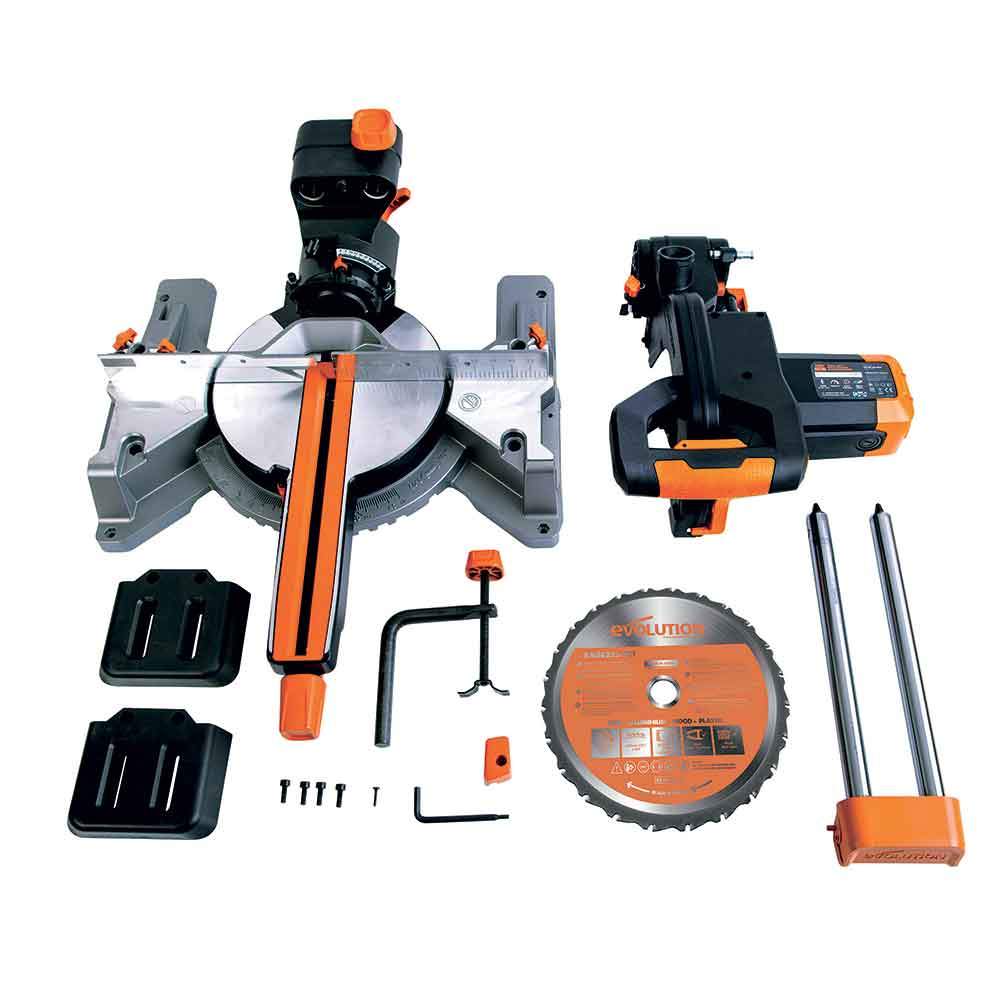

Items Included
| 24T Multi-Material TCT Blade |

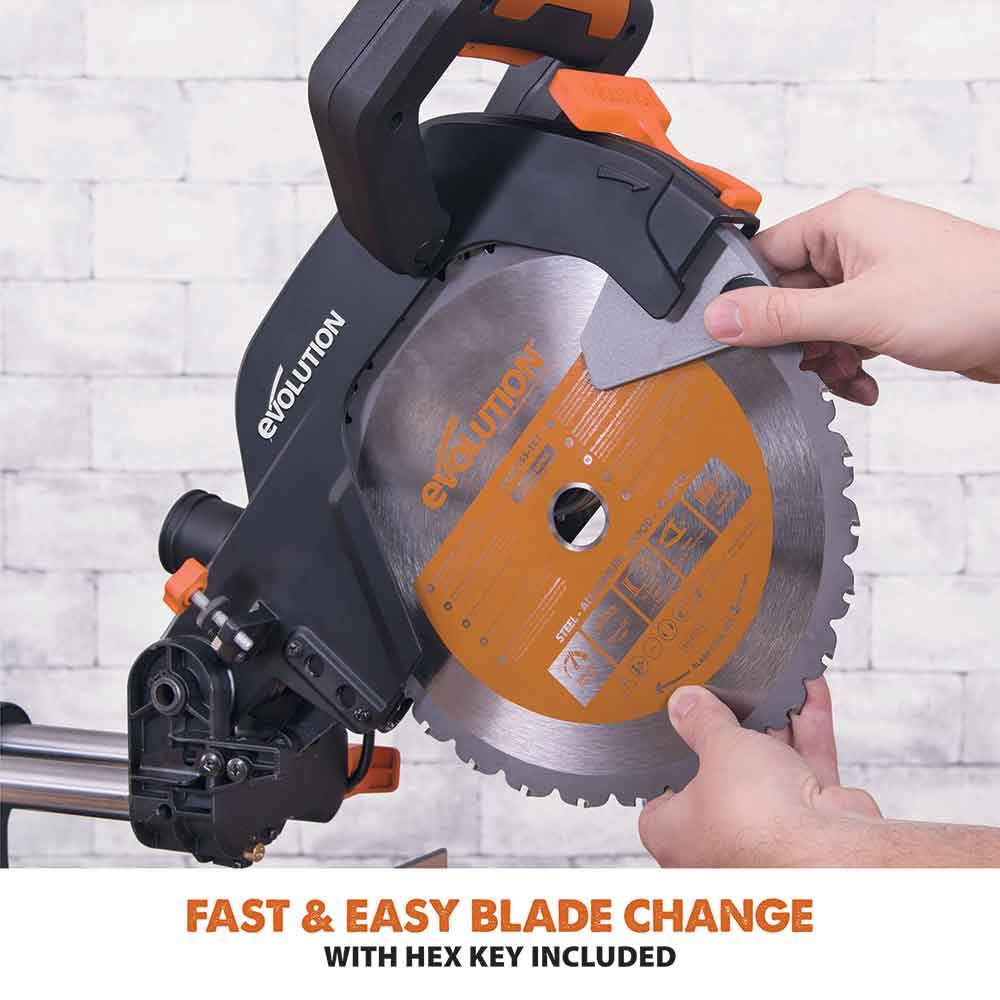

| Hex Key (Blade Change) |
| Machine Table Extensions |
| Rotary Table And Neck |
| Cutting Head |
| Carriage Slides |
| Mitre Locking Knob |
| Mains Cable Guide/Clamp |
| Self Tapping Cap Screw |
| Socket Headed Screws |
| Cable Clamp Component |
| Laser Lens Cap |
| Double Ended Cable Clip |
| 2pc Hold Down Clamp |
Compatible With
255mm Multi-Material Cutting TCT Blade255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
