Evolution R255MTS 255mm Table Saw With TCT Multi-Material Cutting Blade (230v)

A compact & robust table saw, designed to cut more than just wood. With the combination of power, optimised gearbox and multi-material cutting TCT blade, you have a saw that will cut almost anything accurately & reliably.

Features

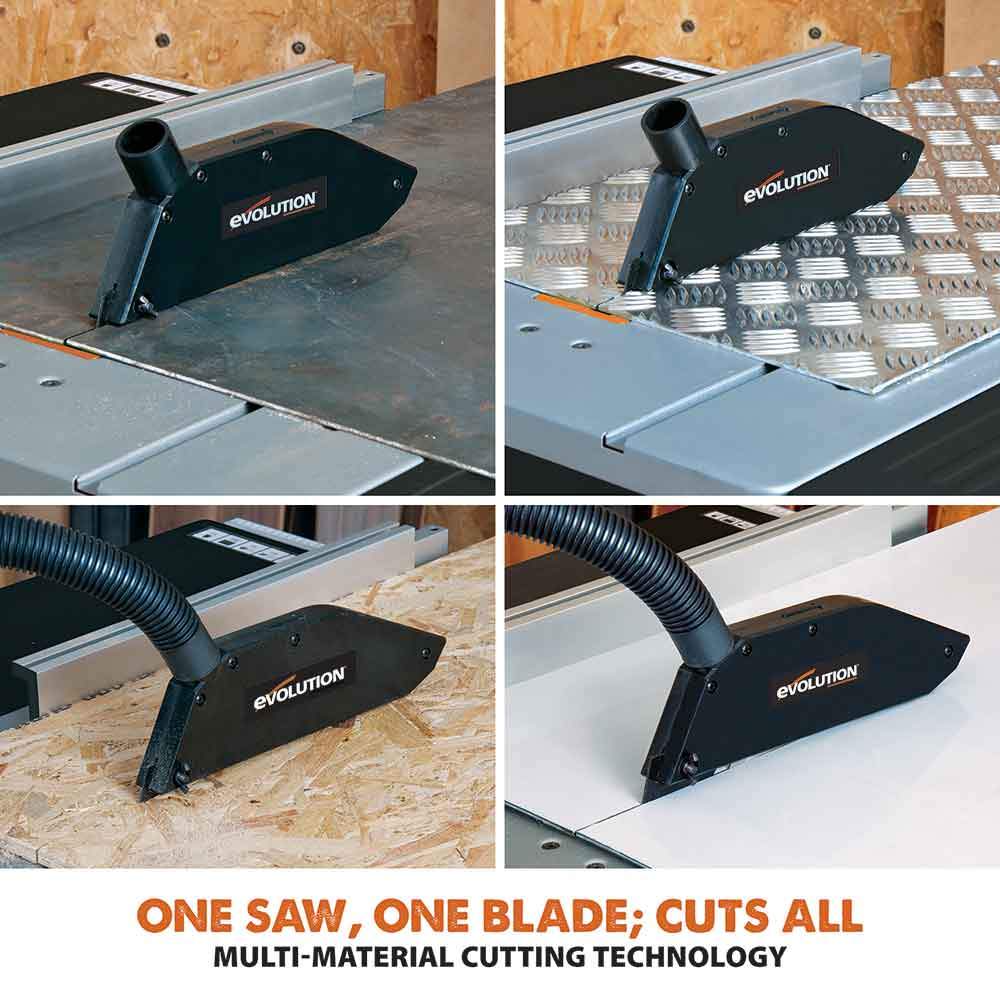

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate rip cutting, assisted by an adjustable parallel fence with measuring rail guide.
• Reliable smooth square cutting every time in a variety of materials.

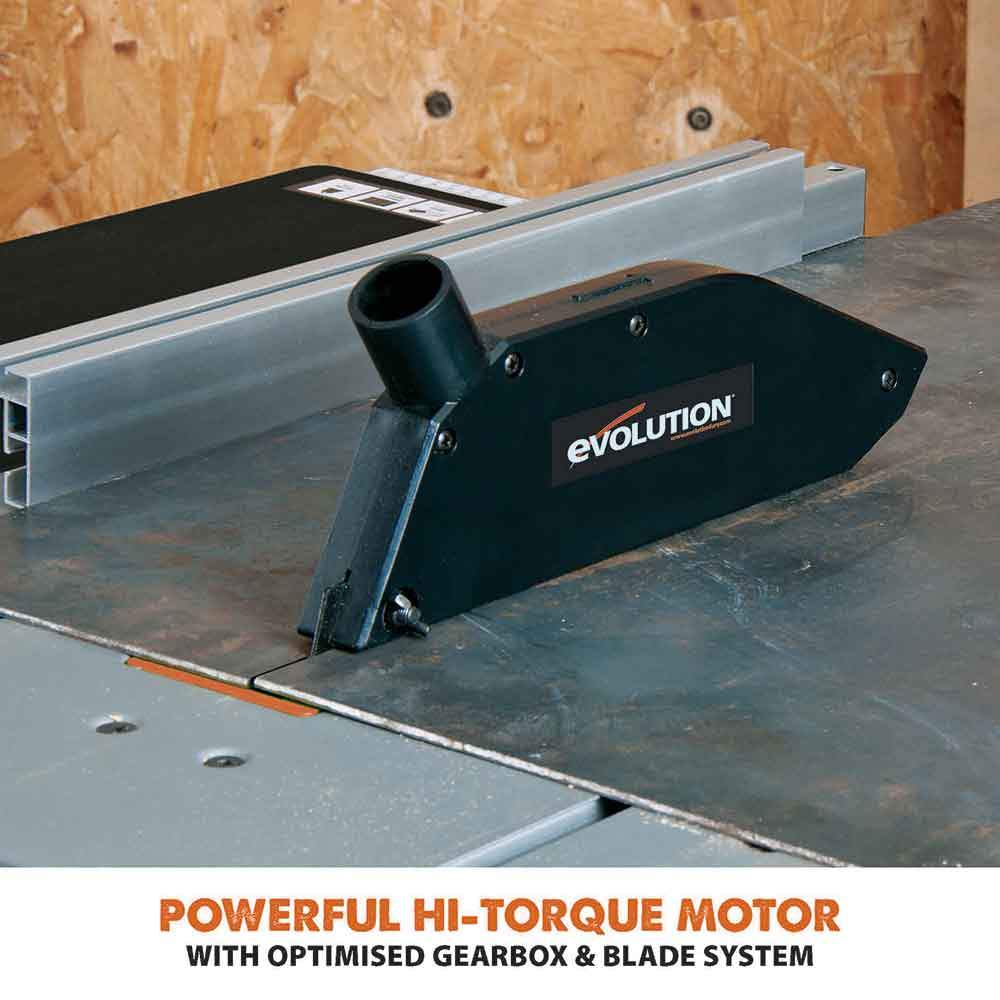

• Powerful 1500W hi-torque motor with optimized gearbox & blade system.
• 0° - 45° bevel tilt and 60˚ - 60˚ mitre fence covers all common, compound cutting angles.
• 85mm depth of cut at 90˚ and 65mm depth of cut at 45˚.

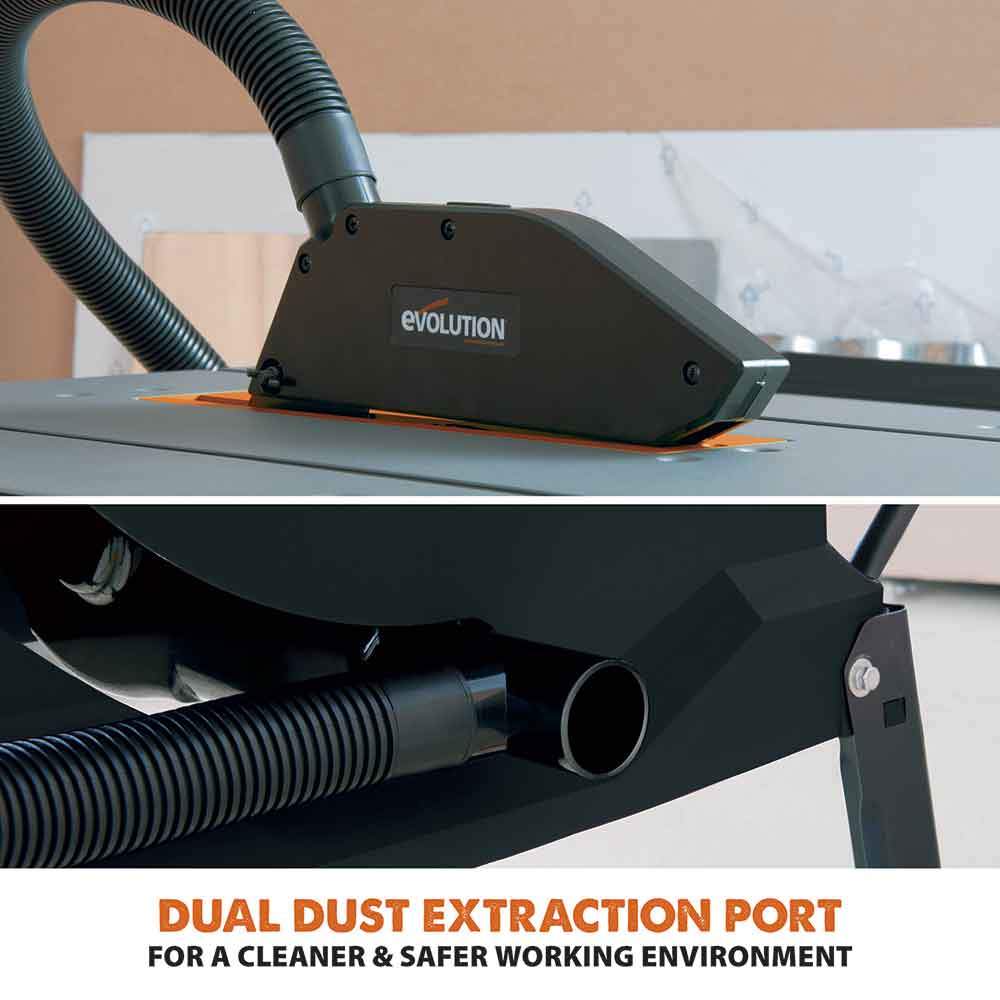

• Integrated Dust port compatible for vacuum dust extraction.

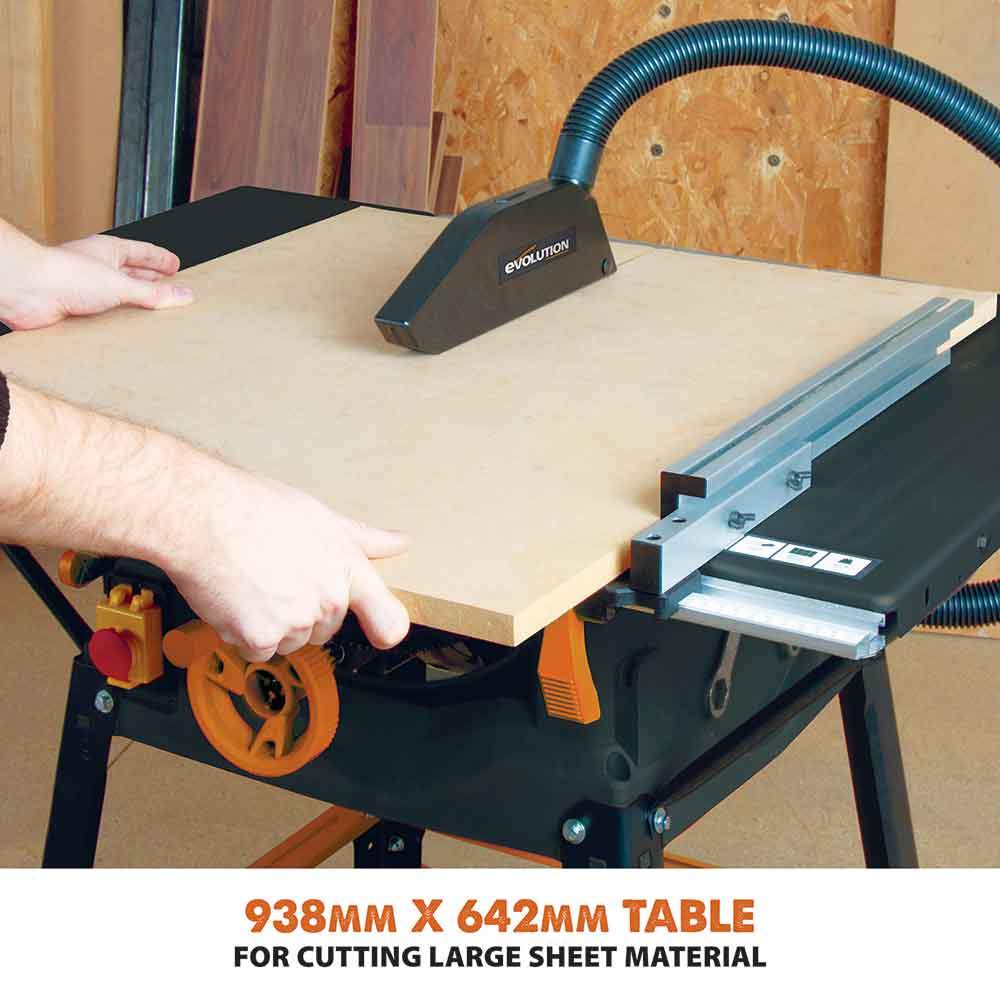

• Compact & lightweight design with a 938mm x 642mm table surface.
• Push Stick included for safer operation when handling smaller offcuts.
• 3 Year limited warranty.
• Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.

Specifications

Motor (240V 50Hz):	S1: 1300W, S6 40%: 1500W
Speed No Load:	3250rpm
Max. Bevel (Left):	45°
Riving Knife Thickness	1.8mm
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Depth of Cut (0°):	85mm
Max. Depth of Cut (45°):	65mm
Mild Steel Plate (Max. Thickness):	3mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Rip Capacity - Right of the blade	410mm
Product Dimensions:	930mm x 642mm x 938mm
Table Dimensions	642mm x 938mm
Packaging Dimensions:	710mm x 320mm x 560mm
Product Weight:	20.25 kg
Packaged Weight:	23 kg

Items Included

24T Multi-Material TCT Blade	Hex Key (Blade Change)
Table Extensions	Table Extension Support Struts
Leg Set (4 corner Legs)	Cross Braces
Rubber Feet	Blade Guard with Extraction Port
Dust Hose Connector	Mitre Gauge
Anti-Bounce Device	Adjustable Rip Fence
Rear Cantilever Braces	Push Stick
Fence Rail (2 piece)	Fence Rail Joining Tongue
Blade Changing Spanners (2pc)	Assorted fixings
