Evolution R210SMS 210mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Evolution's most popular mitre saw in the range with its 230mm sliding rails. This 210mm sliding mitre saw is equipped to cut through, mild steel, aluminium, wood (even wood with embedded nails) and more with one TCT blade.
210mm Diamond Masonry Cutting Blade
210mm Wood Cutting Blade
Mitre Saw Stand

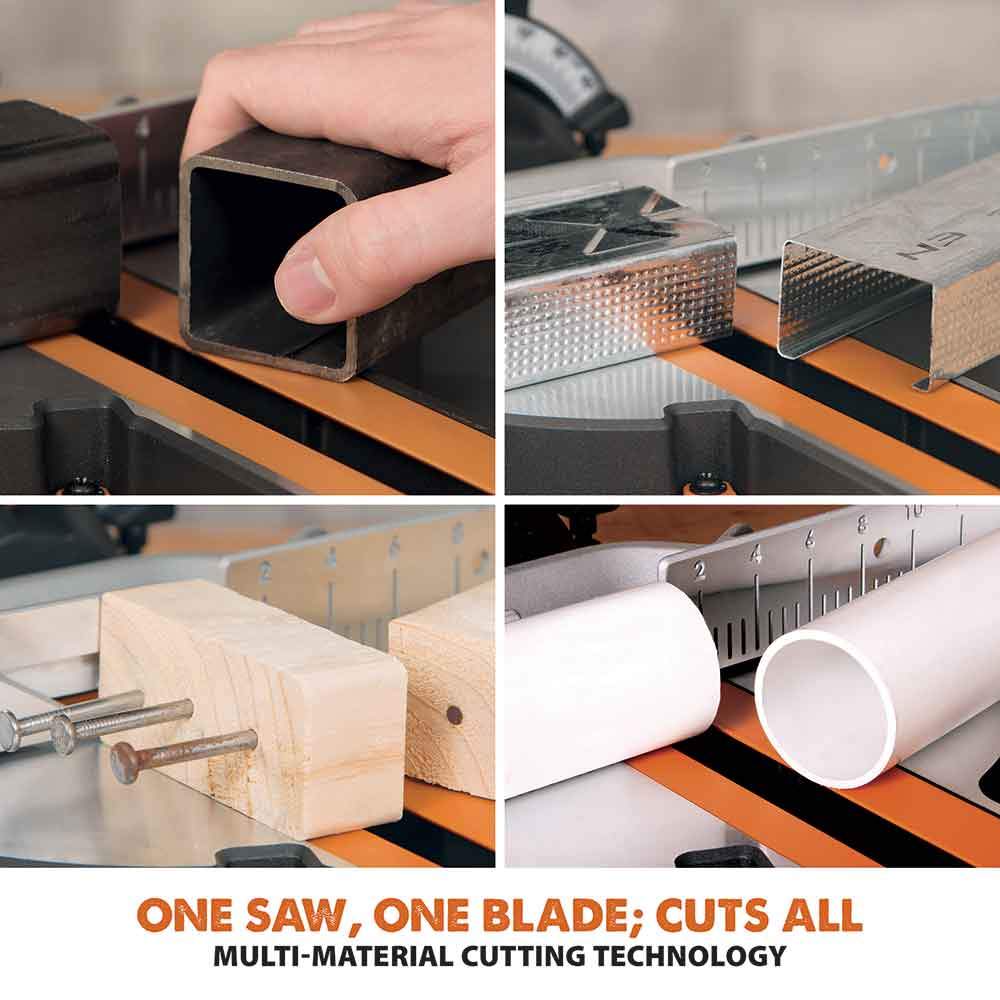

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with laser guidance, adjustable depth of cut and 9 positive mitre stops.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1500W hi-torque motor with optimised gearbox & blade system.

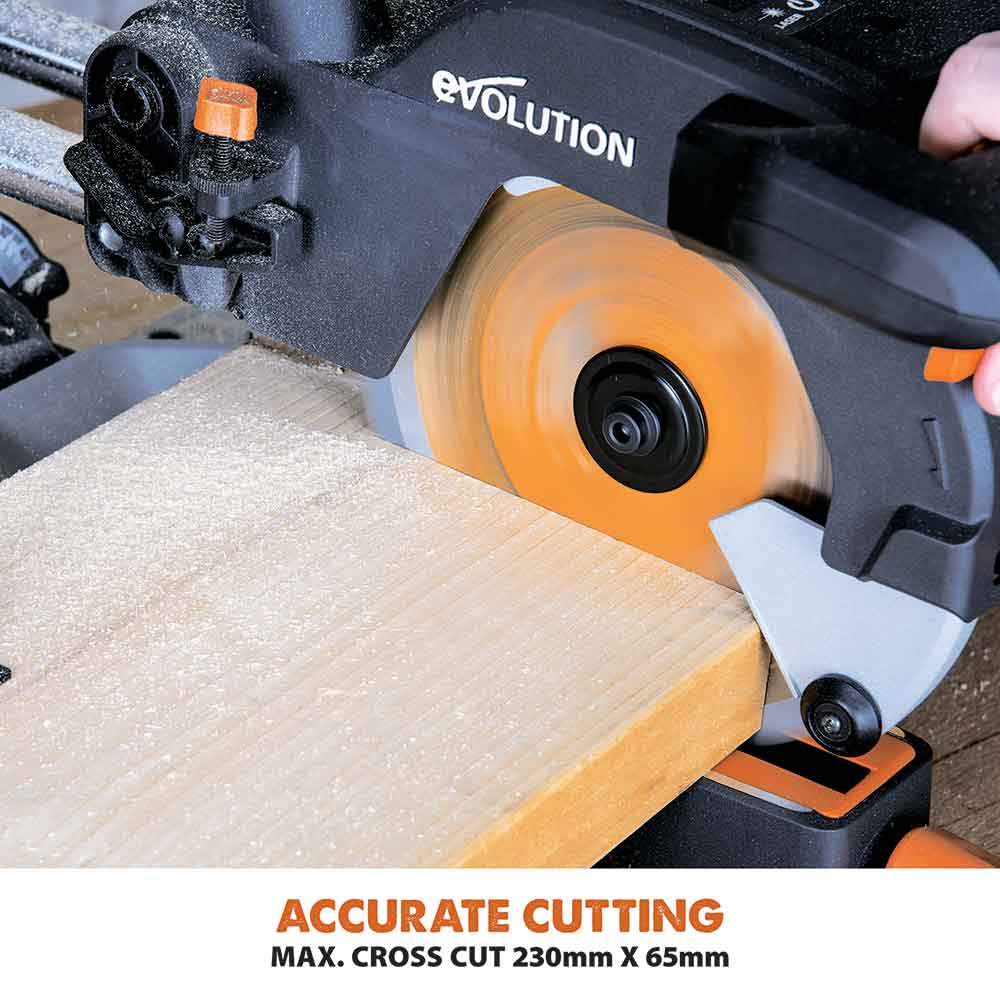

- Sliding functionality provides a 230 x 65mm cross-cut capacity, allowing you to glide through materials with ease.

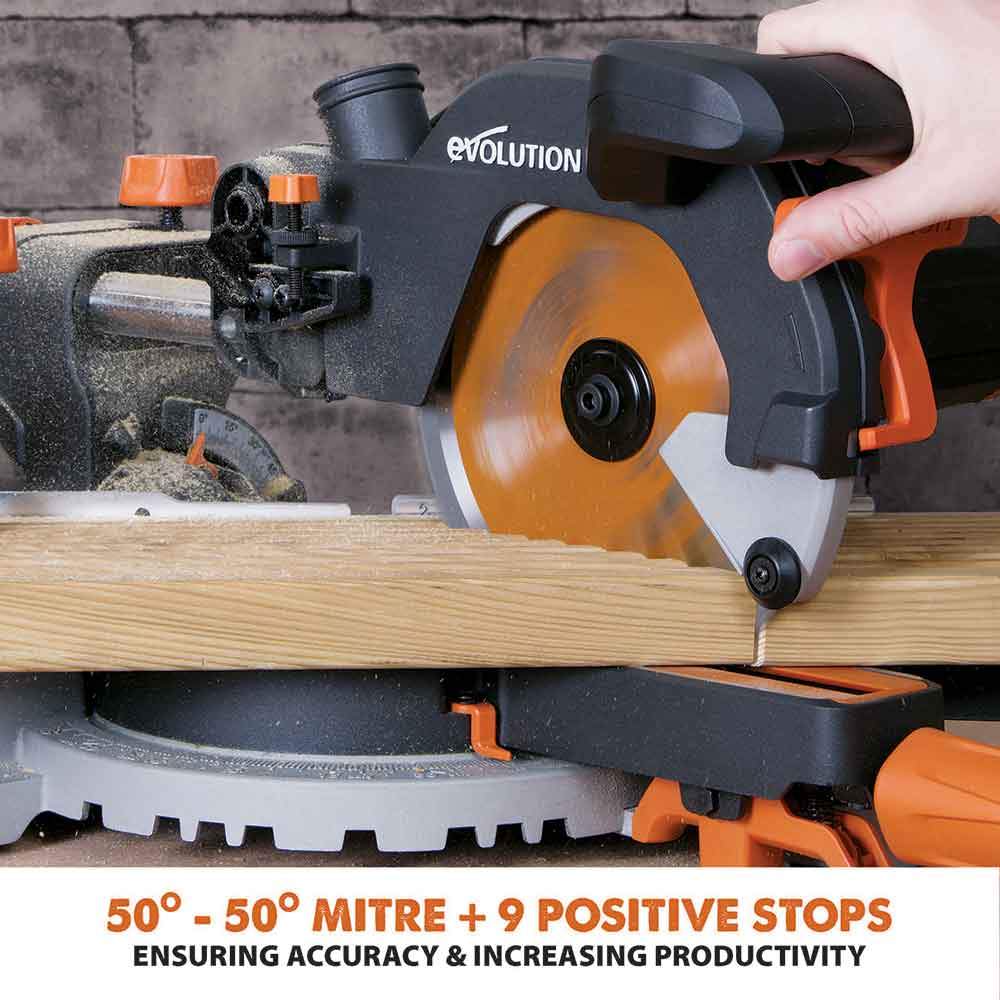

- Positive mitre stops both left & right at 0Ëš, 15, 22.5, 30, and 45Ëš.
- Ergonomic trigger handle designed for left and right-handed use.
- Connect this with Evolution's Mitre Saw Stand, to give you the freedom to perform repeated length cutting on wide and long materials with precision.
- The Evolution 210mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).

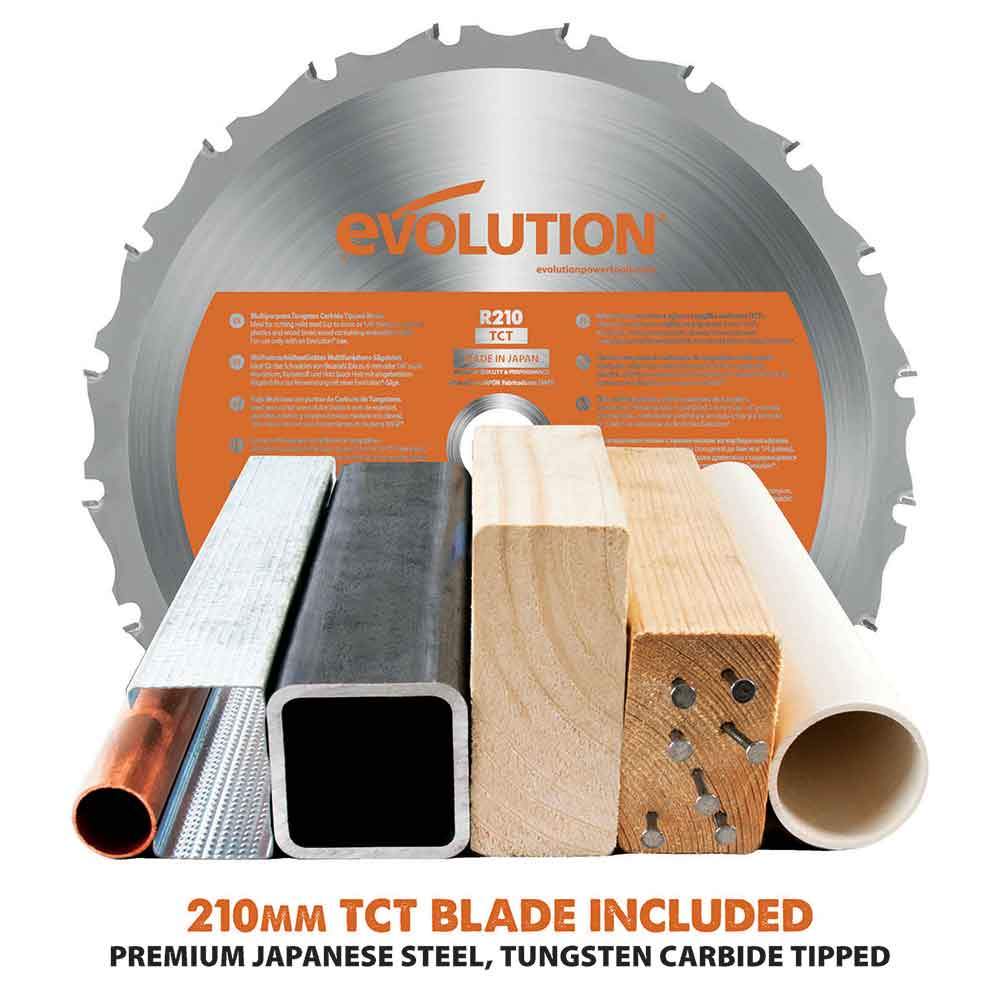

- Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1500W |
| Motor (240V 50Hz): | 1500W |
| Speed No Load: | 3750 min-1 |
| Max. Mitre: | 50° - 50° |

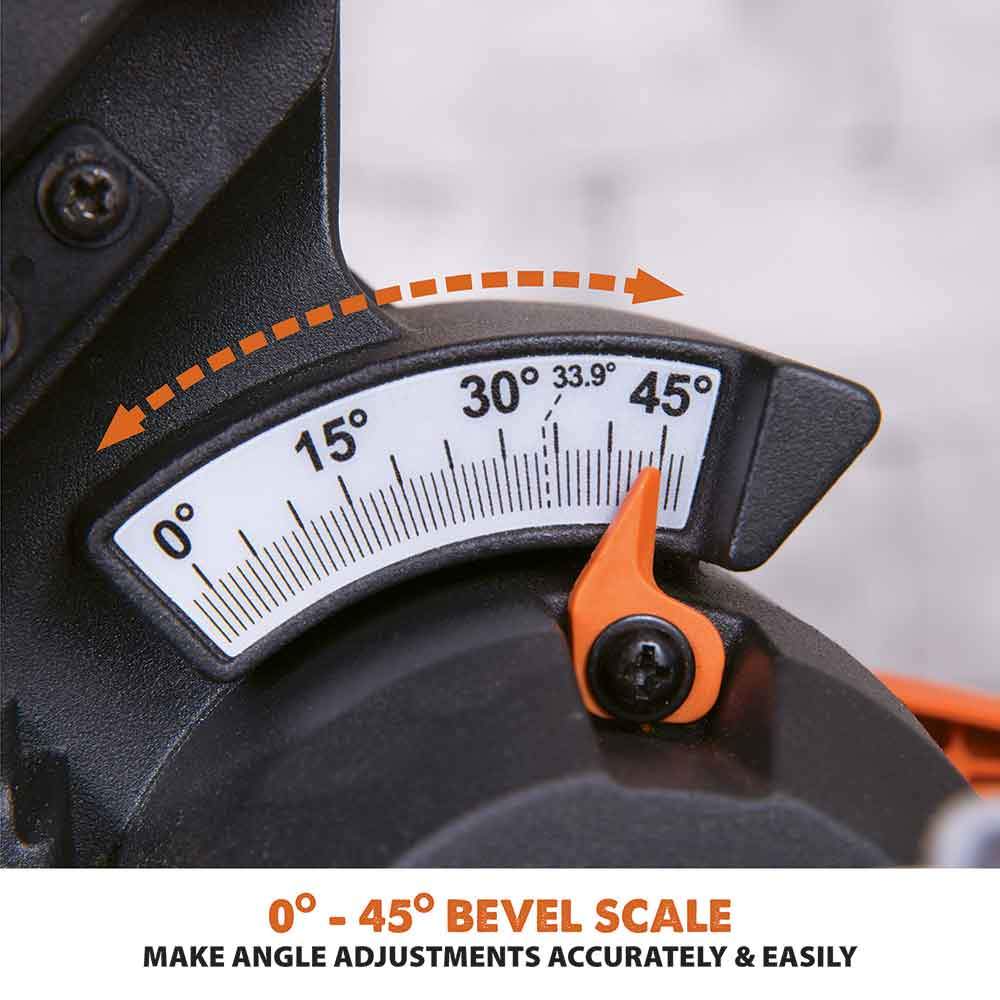

| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |
| Cable Length: | 2m |

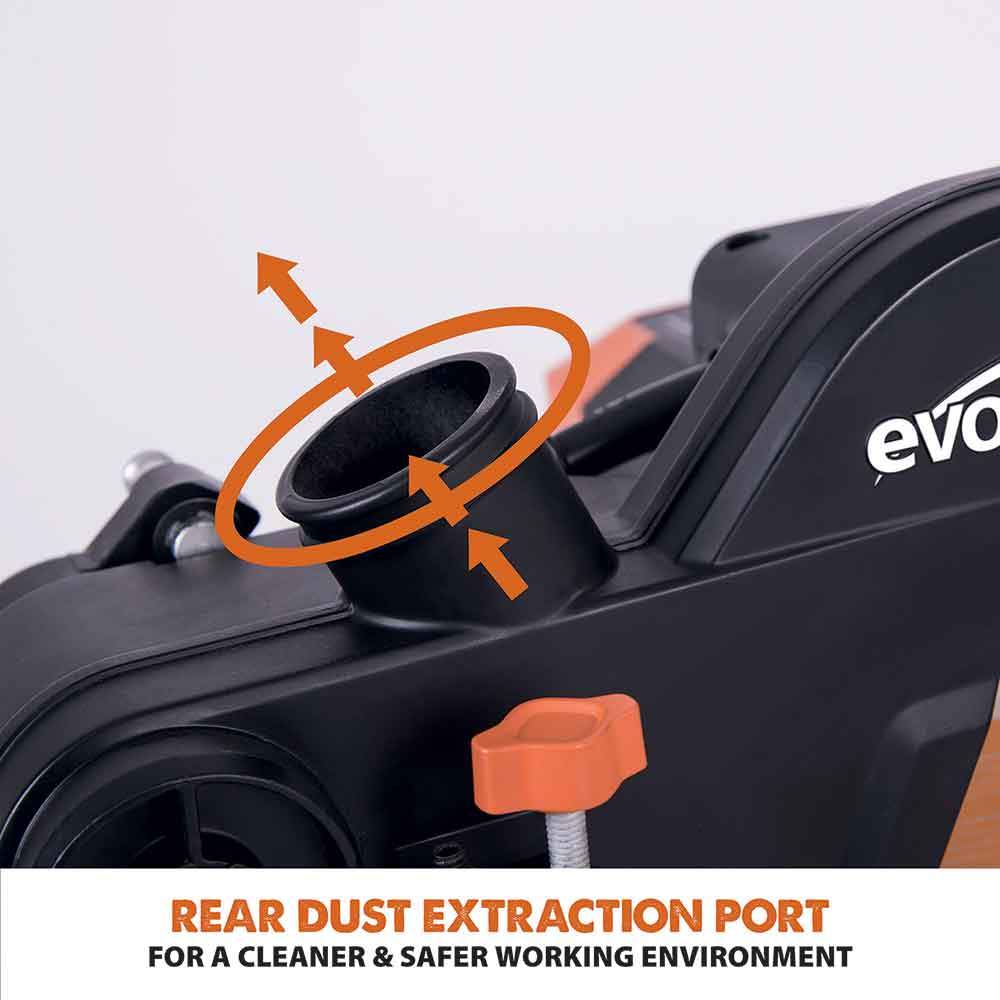

| Dust Port Diameter: | 36mm |
| Blade Dia.: | 210mm |
| No. of Teeth: | 20 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |

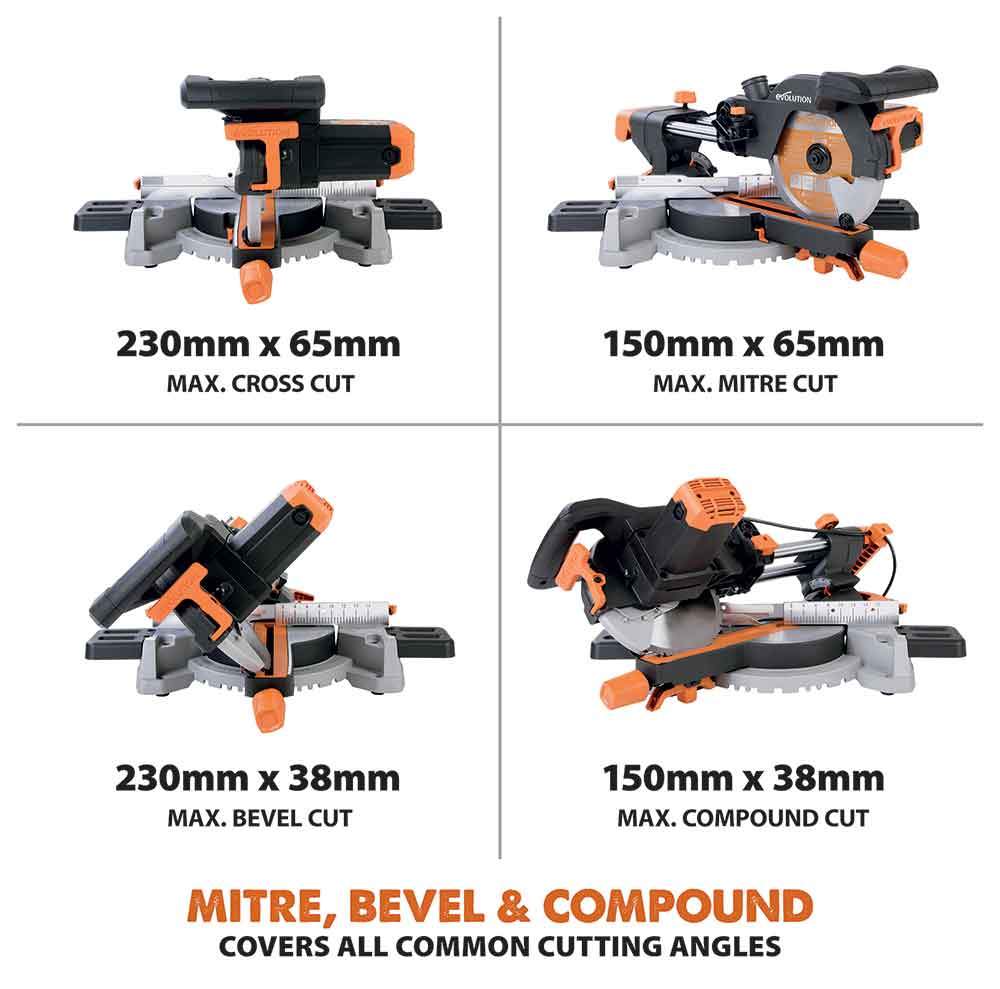

| Max. CrossCut (0° x 0°): | 230mm x 65mm |
| Max. Bevel Cut (0° x 45°): | 230mm x 38mm |
| Max. Mitre Cut (45° x 0°): | 150mm x 65mm |
| Max. Compound Cut (45° x 45°): | 150mm x 38mm |
| Mild Steel Plate (Max. Thickness): | 3mm |
| Mild Steel Box Section (Max. Wall Thickness): | 3mm |
| Product Dimensions: | 314mm x 575mm x 610mm |
| Packaging Dimensions: | 475mm x 435mm x 315mm |
| Product Weight: | 11.2 kg |
| Packaged Weight: | 12.8 kg |
| Sound Pressure Level LPA: | 110V: 95.7 dB(A) / 220-240V: 96.5dB(A) |
| Sound Power Level LWA: | 110V: 108.7dB(A) / 220-240V: 109.5dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
| Laser Class: | Class 2 |
| Laser Source: | Laser Diode |
| Laser Output Power (Max): | <1mW |
| Wave Length (Nm): | 650 |
Items Included
| 20T Multi-Material TCT Blade | 2 Pc Hold Down Clamp |
| Machine Table Extensions | Double Ended Hex Key (M6 & M4) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp (1 Fitted) | Self Tapping Cap Screw |
| Socket Headed Screws (Fitted) | Cable Clamp Component |
| Laser Lens Cap (Fitted) | 2m Cable |
Compatible With
210mm Multi-Material Cutting TCT Blade210mm Diamond Masonry Cutting Blade
210mm Wood Cutting Blade
Mitre Saw Stand
