Evolution R185CCSX 185mm Track Compatible Circular Saw with TCT Multi-Material Cutting Blade (Refurbished - Fair Condition)
Evolution R185CCSX 185mm Track Compatible Circular Saw with TCT Multi-Material Cutting Blade (Refurbished - Fair Condition)
3-piece Track kit not included.
B-Grade Stock: Lightly used, excellent condition. Fully inspected, in good working order. With relevant documentation. Packaging may be marked, Mini-track kit not included.

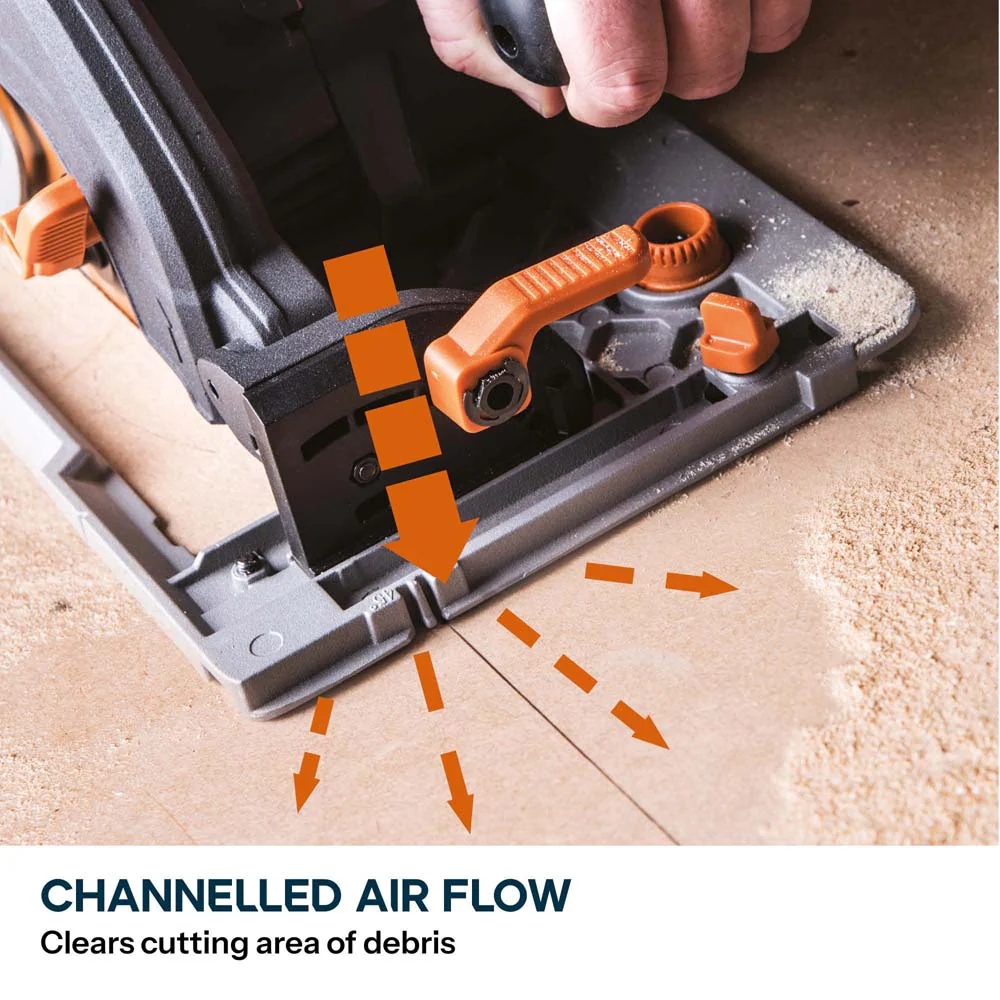

The ultimate multi-material track compatible circular saw. Designed by the trade for the trade. The R185CCSX model gives you extra functionality, extra support, and extra reach than any other Evolution circular saw in the family. Channelled air-flow, and compatibility with Evolution's 1.4m & 2.8m tracks, are just some of the features included in this package. (Tracks Sold Separately).
Features
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
- Reliable smooth square cutting every time in a variety of materials.

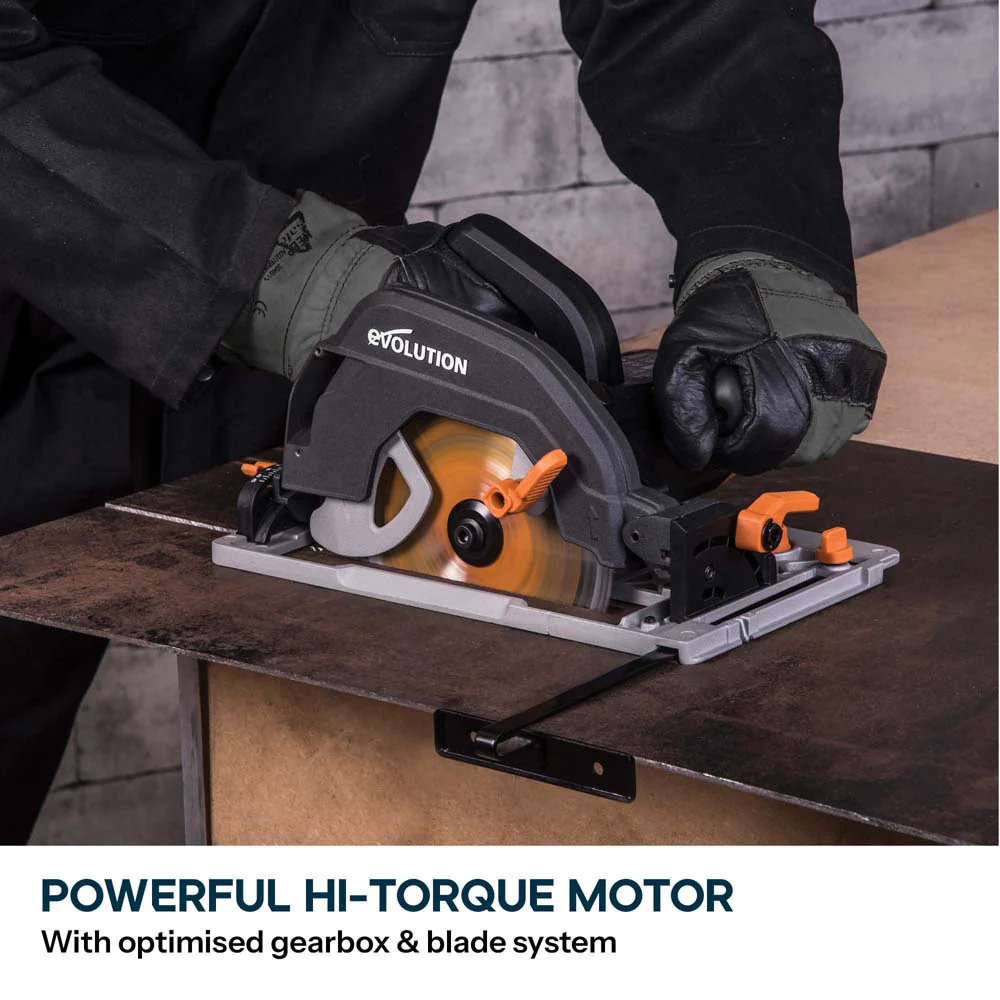

- Powerful 1600W hi-torque motor with optimised gearbox & blade system.
- 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
- Ergonomic, soft-grip handles provide maximum control, versatility and precision.

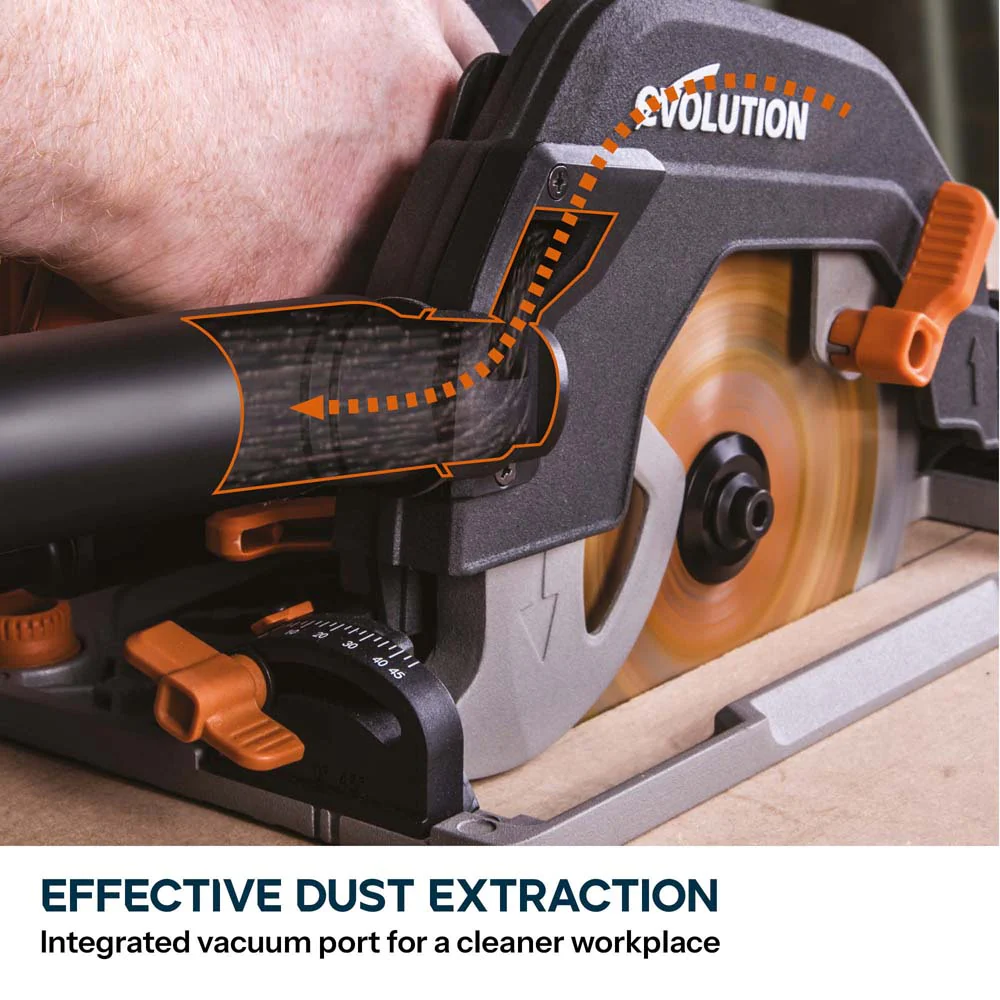

- Dust extraction port & adaptor included for vacuum compatibility.
- Track compatible with Evolution's 1.4m & 2.8m Tracks (Sold Separately)
- Robust & sturdy construction with even weight distribution, weighing 5.1kg
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 1600W |
| Speed No Load (110V): | 3700 rpm |
| Speed No Load (240V): | 3900 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Cast Aluminum |
| Cable Length: | 4m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 20 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Depth of Cut (0°): | 64mm (59mm w/Track) |
| Max. Depth of Cut (45°): | 47mm (42mm w/Track) |
| Mild Steel Plate (Max. Thickness): | 6mm |
| Mild Steel Box Section (Max. Wall Thickness): | 6mm |
| Product Dimensions: | 255 x 375 x 265 mm |
| Packaging Dimensions: | 380 x 300 x 280 mm |
| Product Weight: | 5.1 kg |
| Packaged Weight: | 7.2 kg |
| Sound Pressure Level LPA: | 94,3dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 105,3dB(A) K=3 dB(A) |
| Vibration - Main Handle (Sawing Wood): | Ah,w= 3,347m/s2 |
| Vibration - Auxiliary Handle (Sawing Wood): | Ah,w= 3,119m/s2 |
| Vibration - Main Handle (Sawing Metal): | Ah,M= 3,572m/s2 |
| Vibration - Auxiliary Handle (Sawing Metal): | Ah,M= 3,241m/s2 |
| Uncertainty K: | 1,5m/s2 |
Items Supplied
| 20T Multi-Material TCT Blade |
| Hex Key (Blade Change) |

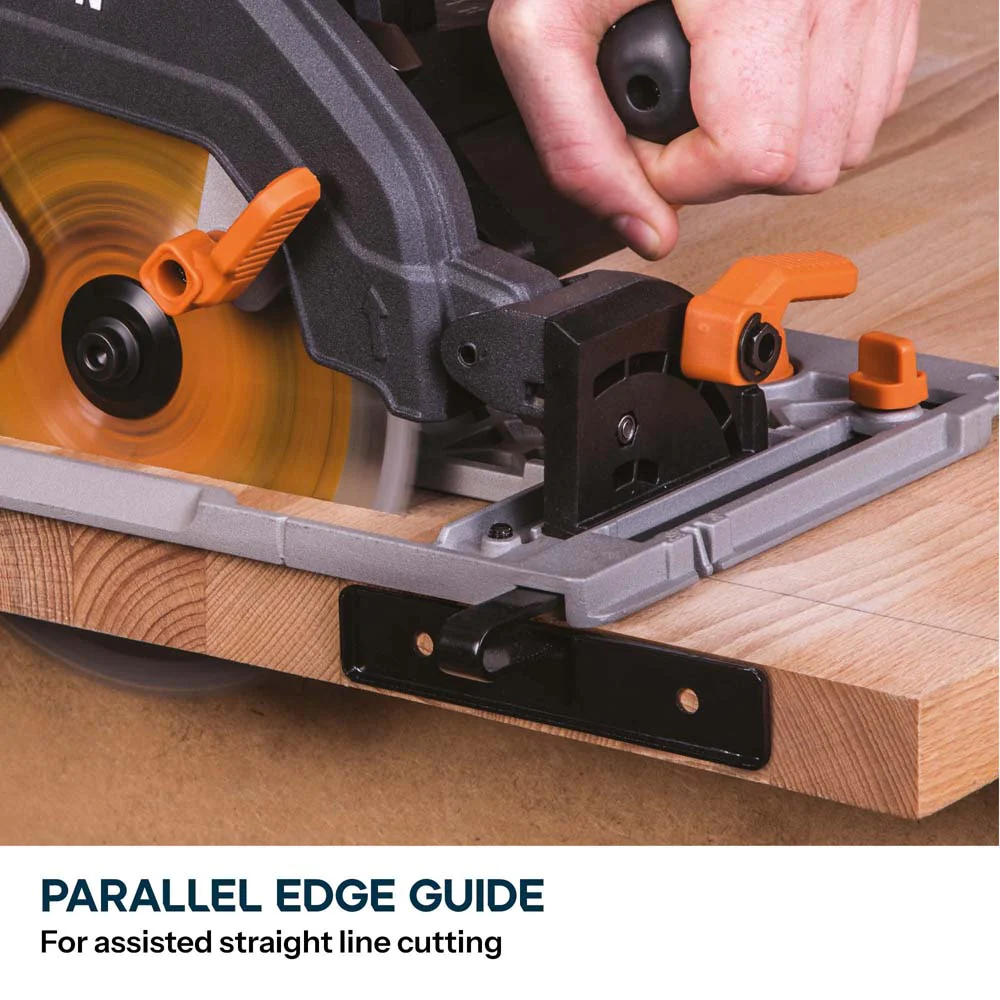

| Parallel Edge Guide |
| Dust Port Adapter |
| Dust Hose Connector |
Compatible With
ST1400 1.4m TrackST2800 2.8m Track
