Evolution F210SMS 210mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade (230v)

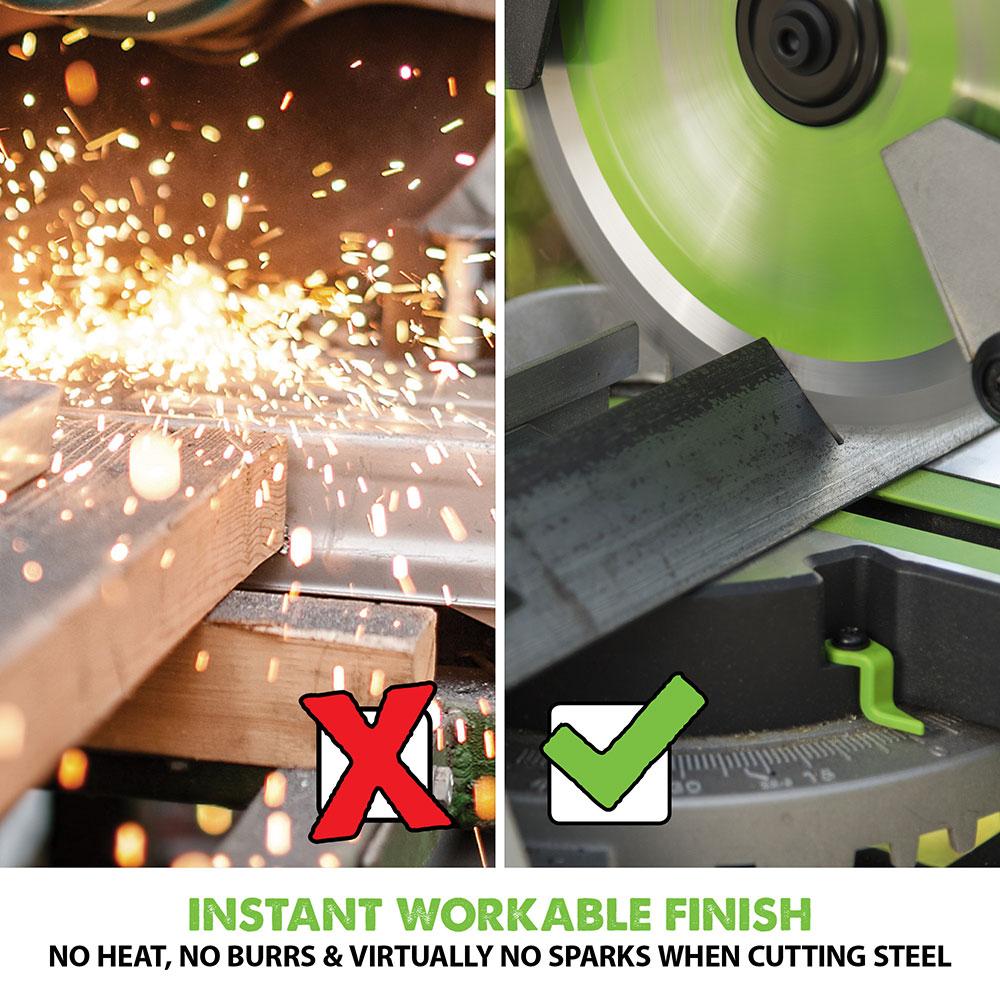

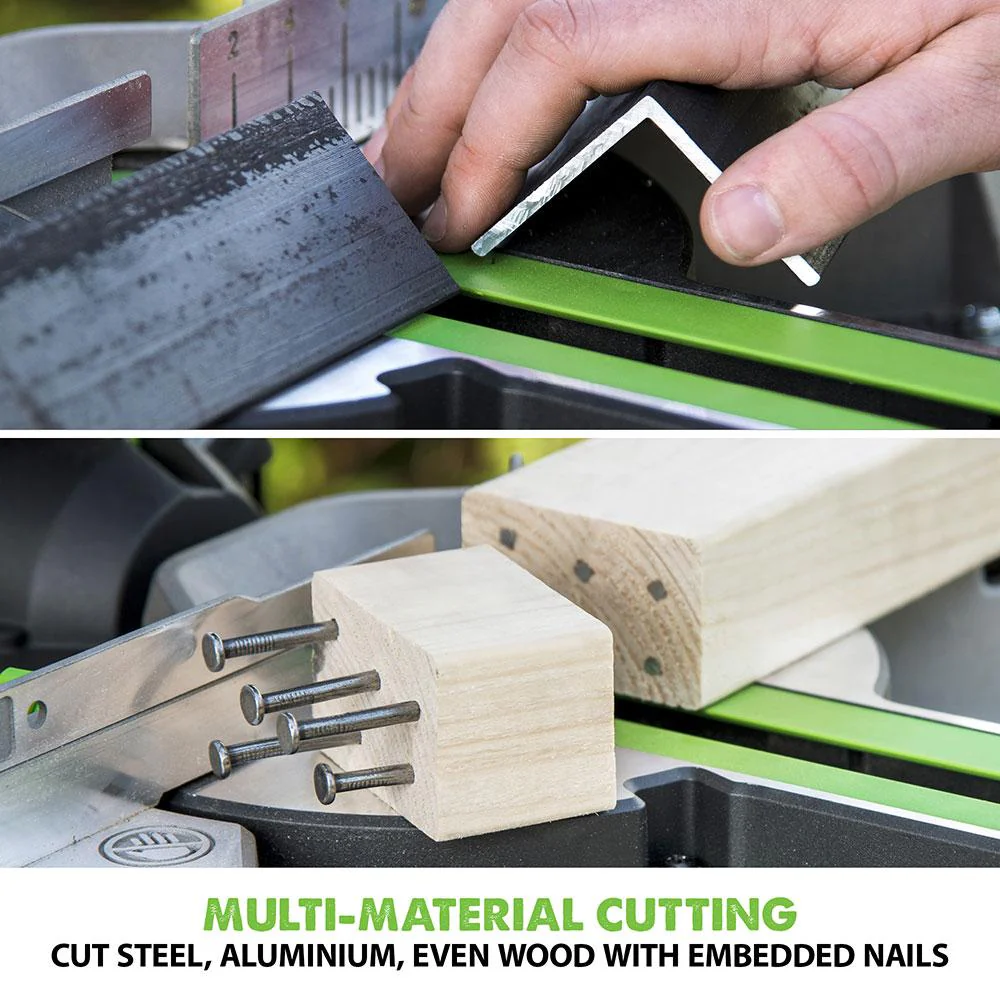

- Multi-Material cutting technology. One saw, one blade, cuts all.*

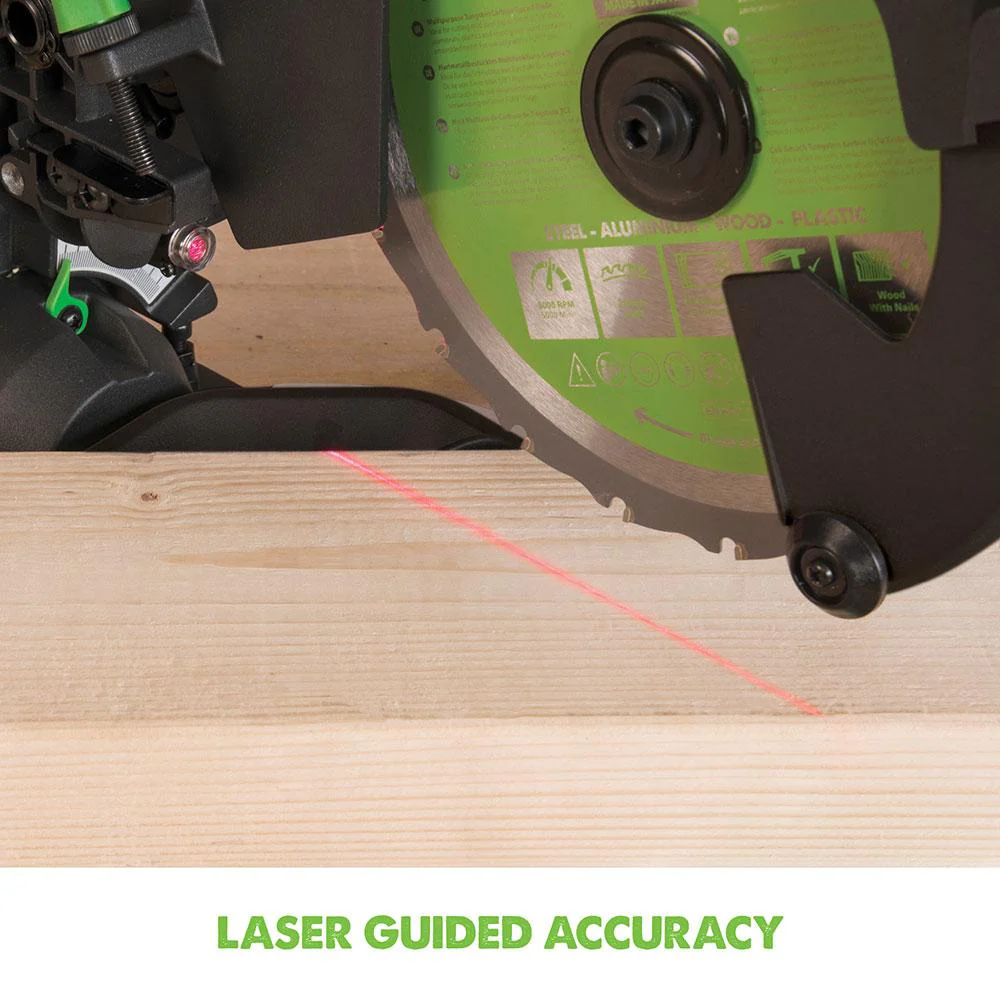

- Accurate cutting with laser guidance, adjustable depth of cut and 9 positive mitre stops.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimised gearbox & blade system.

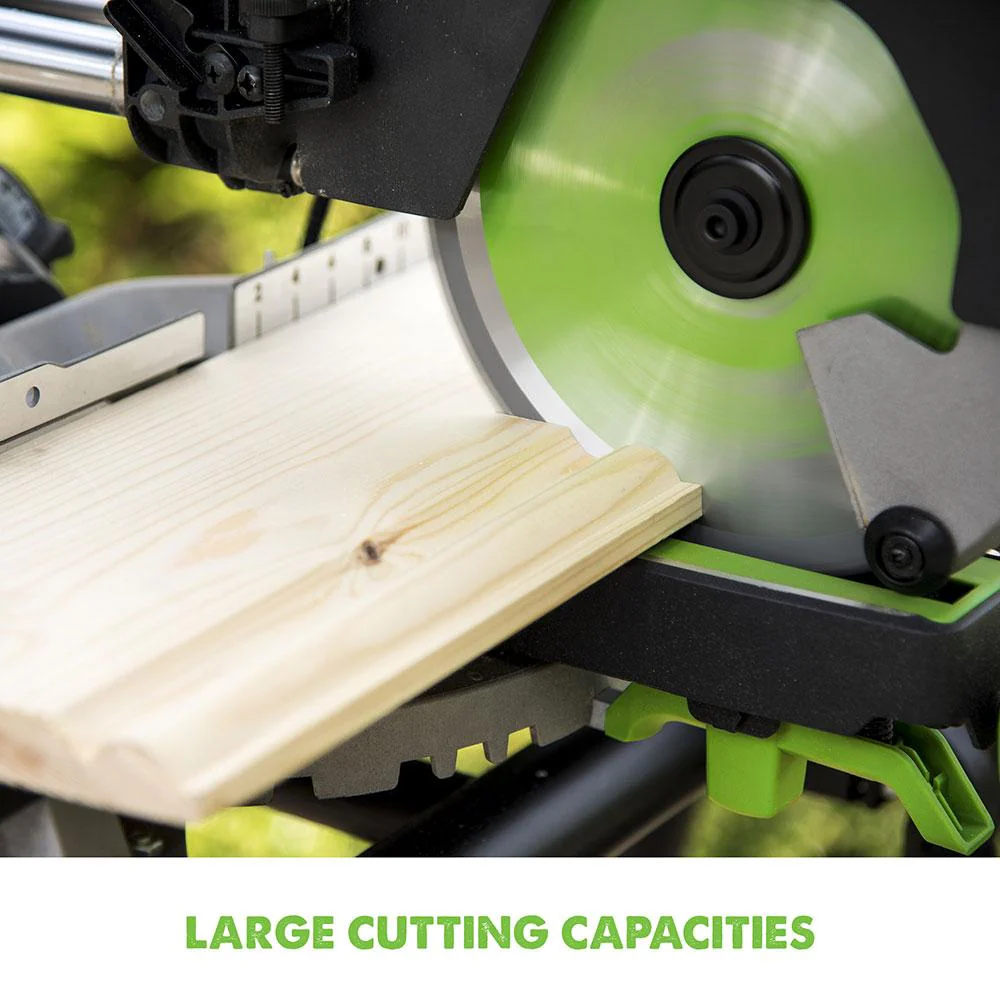

- Sliding functionality provides a 230 x 65mm cross-cut capacity, allowing you to glide through materials with ease.

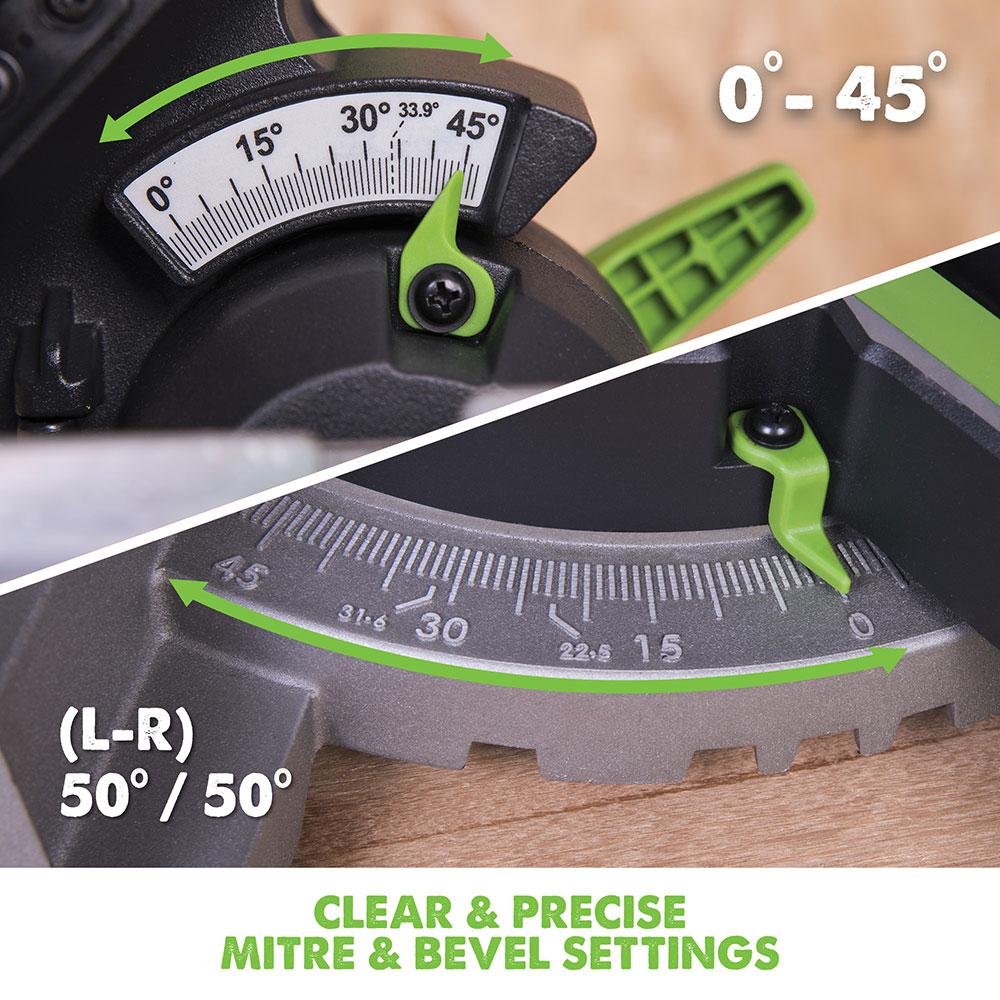

- Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚.

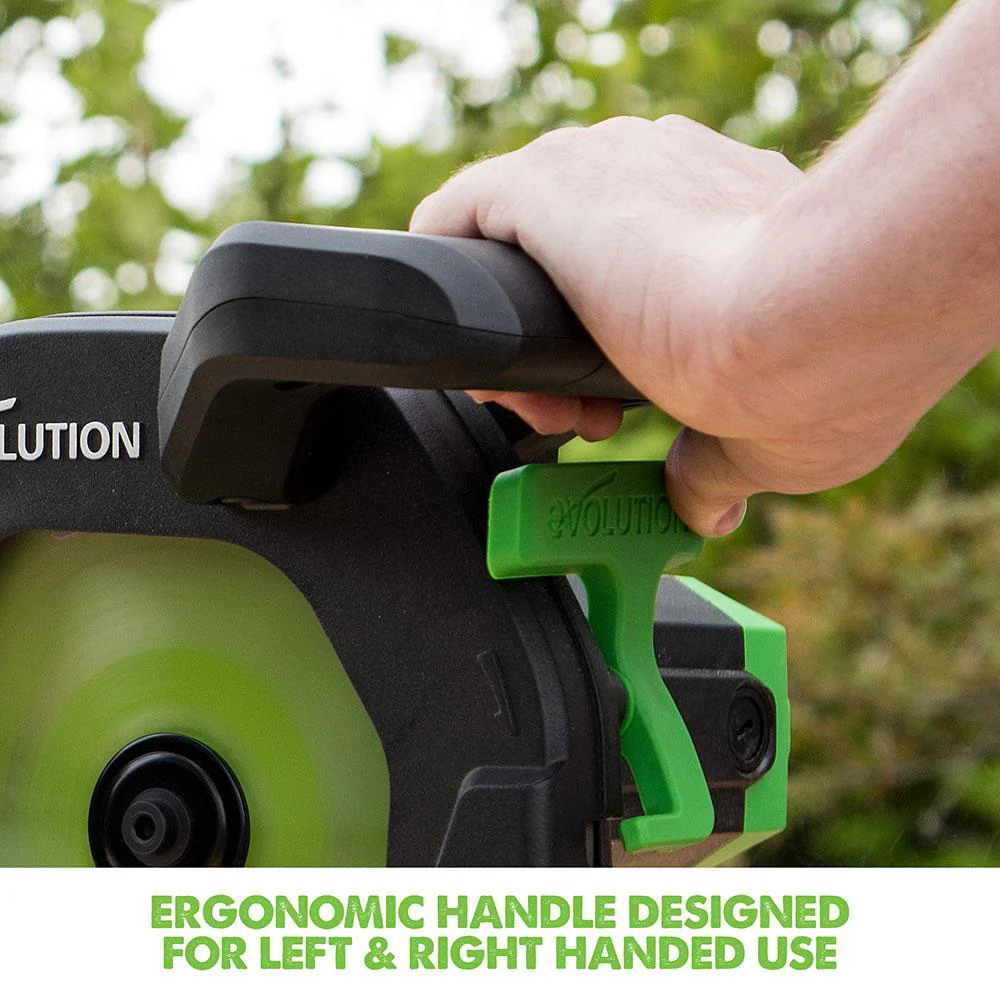

- Ergonomic trigger handle designed for left and right-handed use.
- Connect this with Evolution's Mitre Saw Stand, to give you the freedom to perform repeated length cutting on wide and long materials with precision.

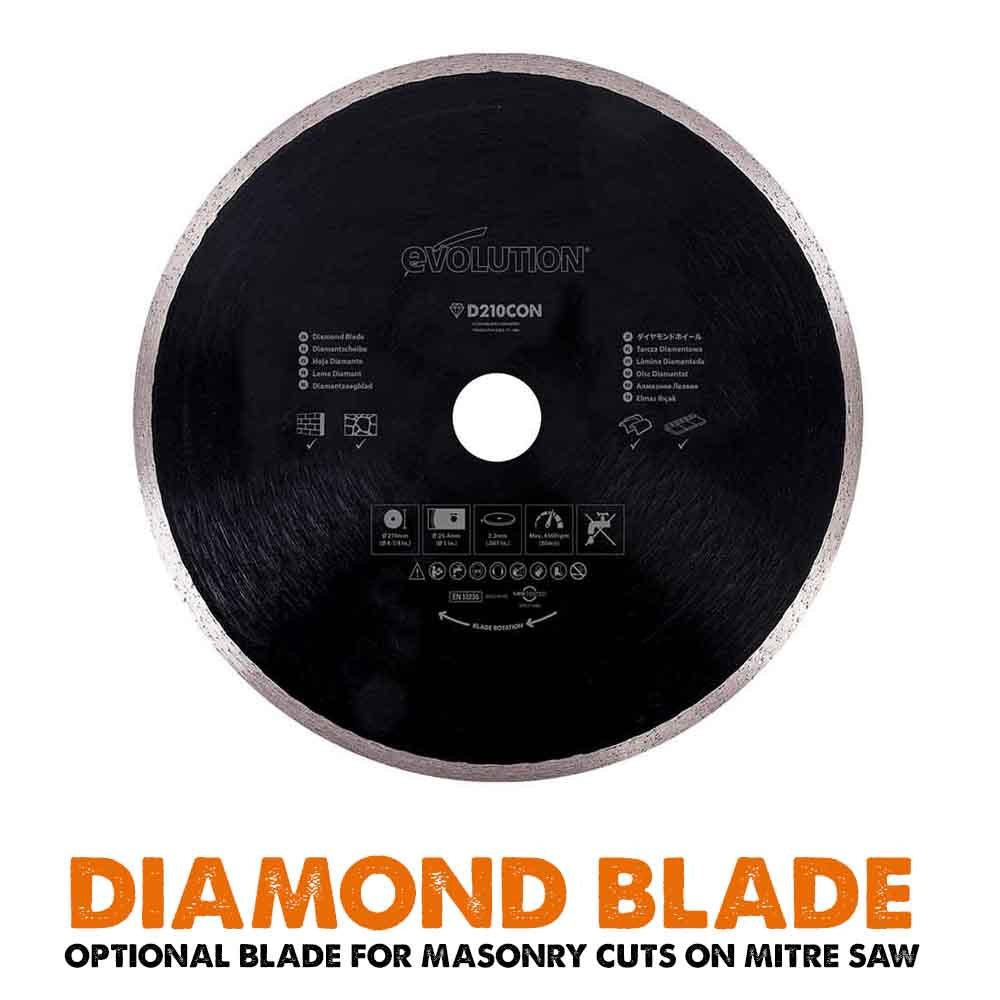

- The Evolution 210mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- Japanese Tungsten-Carbide-Tipped 20t (TCT) 210mm blade included.
Specifications
| Motor (240V 50Hz): | 1200W |
| Speed No Load: | 3750 rpm |
| Max. Bevel (Left): | 45° |
| Max. Mitre: | 50° - 50° |

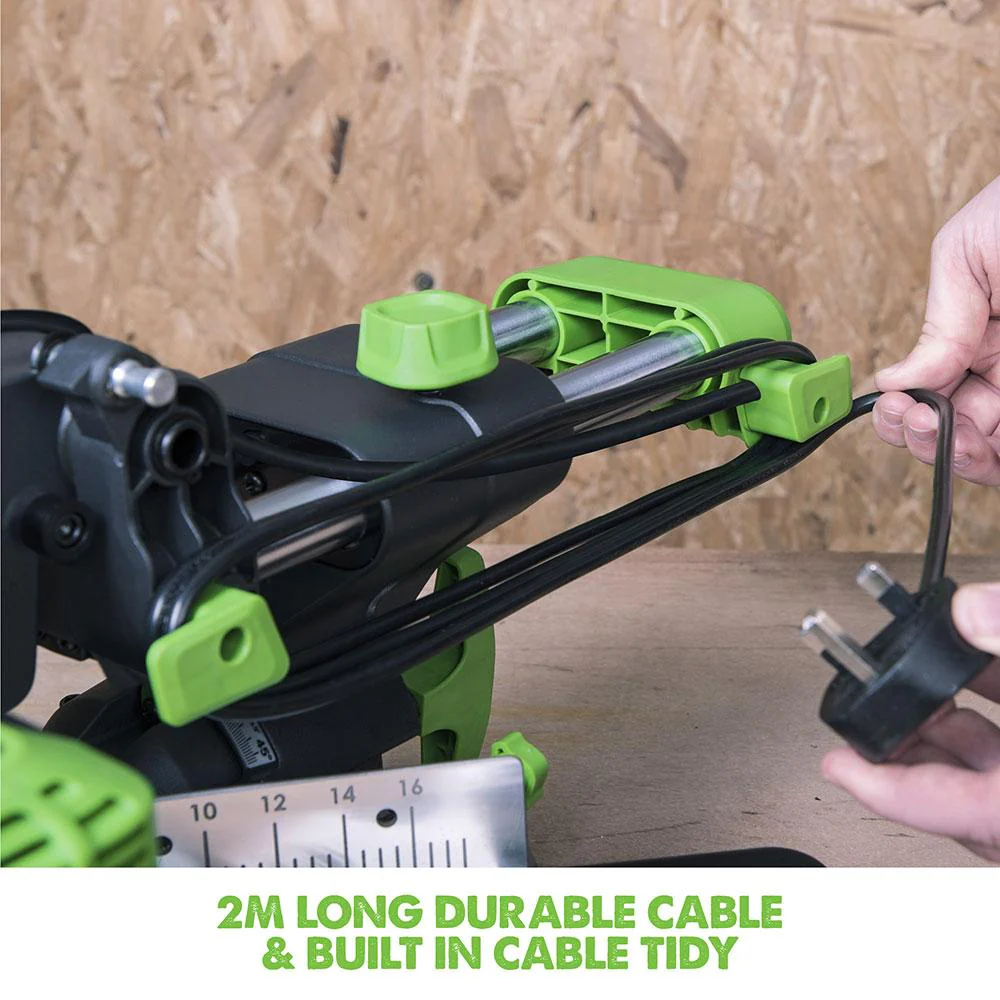

| Cable Length: | 2m |
| Blade Dia.: | 210mm |
| No. of Teeth: | 20 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 230mm x 65mm |
| Max. Bevel Cut (0° x 45°): | 230mm x 38mm |
| Max. Mitre Cut (45° x 0°): | 150mm x 65mm |
| Max. Compound Cut (45° x 45°): | 150mm x 38mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 314mm x 575mm x 610mm |
| Packaging Dimensions: | 420mm x 290mm x 310mm |
| Product Weight: | 10.9 kg |
| Packaged Weight: | 12.8 kg |
| Sound Pressure Level LPA: | 220-240V: 96.5dB(A) |
| Sound Power Level LWA: | 220-240V: 109.5dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
Items Supplied
| 20T Multi-Material TCT Blade |
| Hold Down Clamp |
| Machine Table Extensions |
| Double Ended Hex Key (M6 & M4) |
| Rotary Table And Neck |
| Cutting Head |
| Carriage Slides |
| Mitre Locking Knob |
| Mains Cable Guide/Clamp (1 Fitted) |
| Self Tapping Cap Screw |
| Socket Headed Screws |
| Cable Clamp Component |
| Laser Lens Cap (Fitted) |
Compatible With
210mm 24t Multi-Material Cutting TCT Blade210mm 20t Multi-Material Cutting TCT Blade
210mm 40t Fine Wood Cutting TCT Blade
210mm 30t General Wood Cutting TCT Blade
210mm Diamond Masonry Cutting Blade
Mitre Saw Stand
$66.24
Original: $189.26
-65%Evolution F210SMS 210mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade (230v)—
$189.26
$66.24More Images
