Evolution F255SMS 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade (230v)

The F255SMS Sliding mitre Saw is our price fighting 255mm

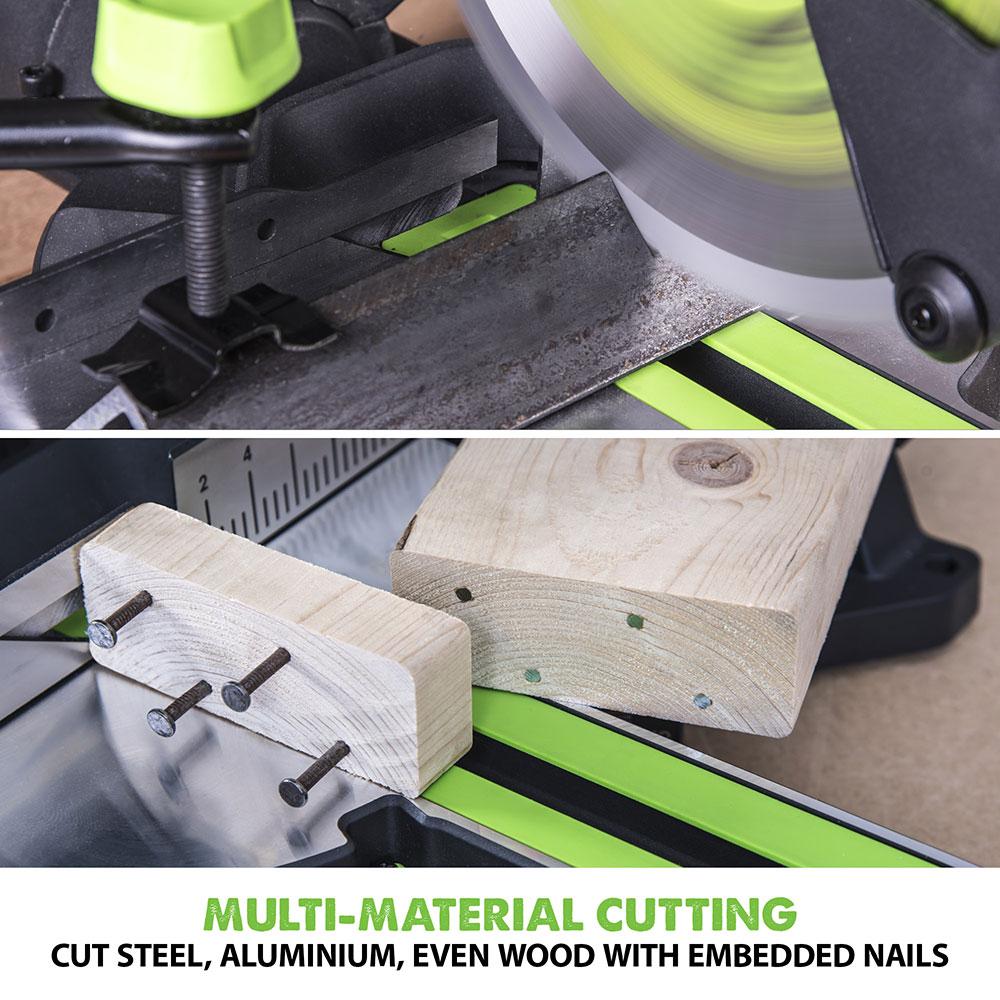

• Multi-Material cutting technology. One saw, one blade, cuts all.*

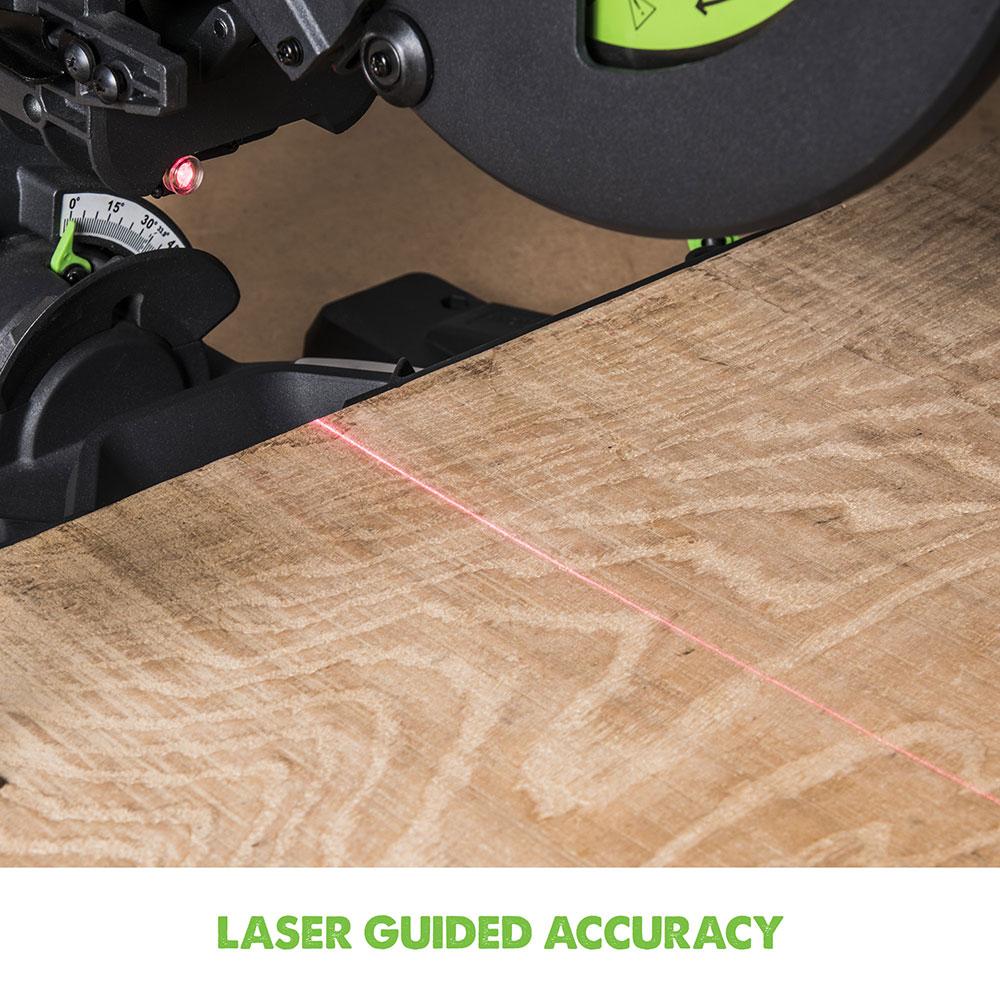

• Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.

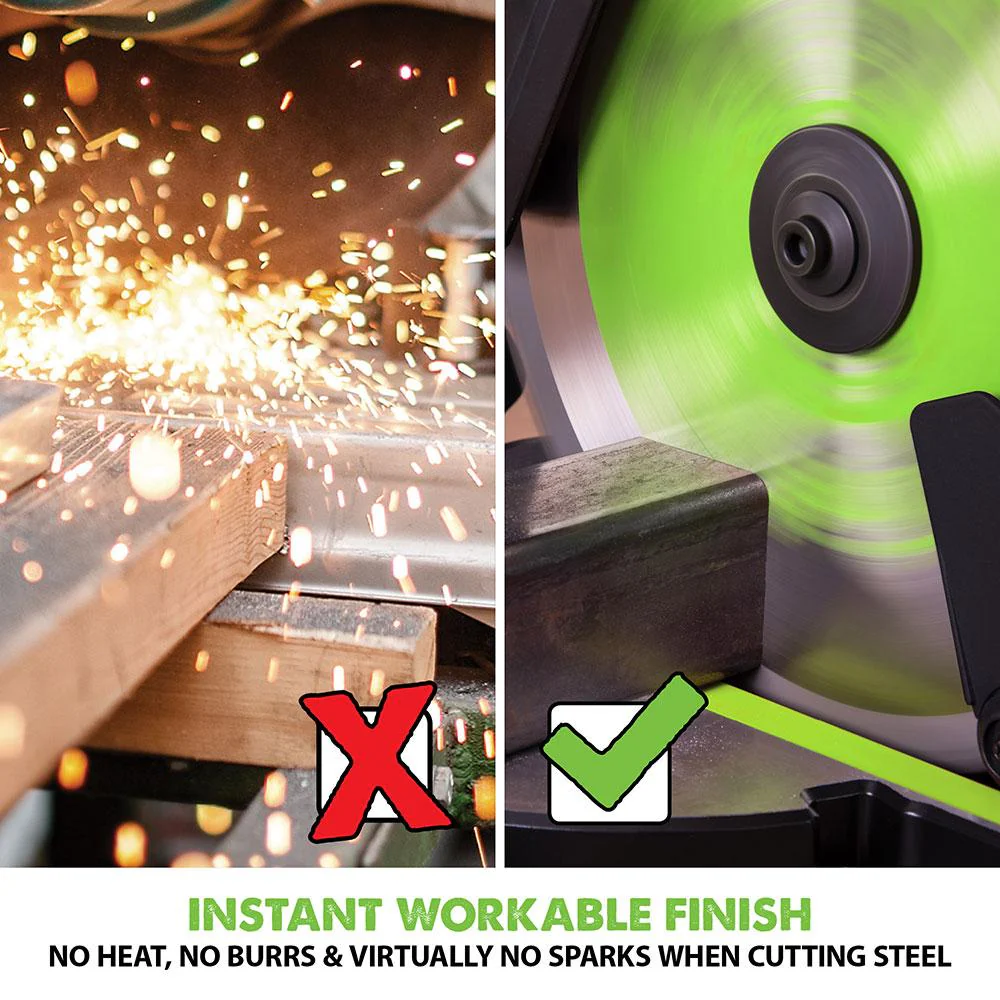

• Smooth, square, reliable cutting every time in a variety of materials.
• Powerful 1600W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.

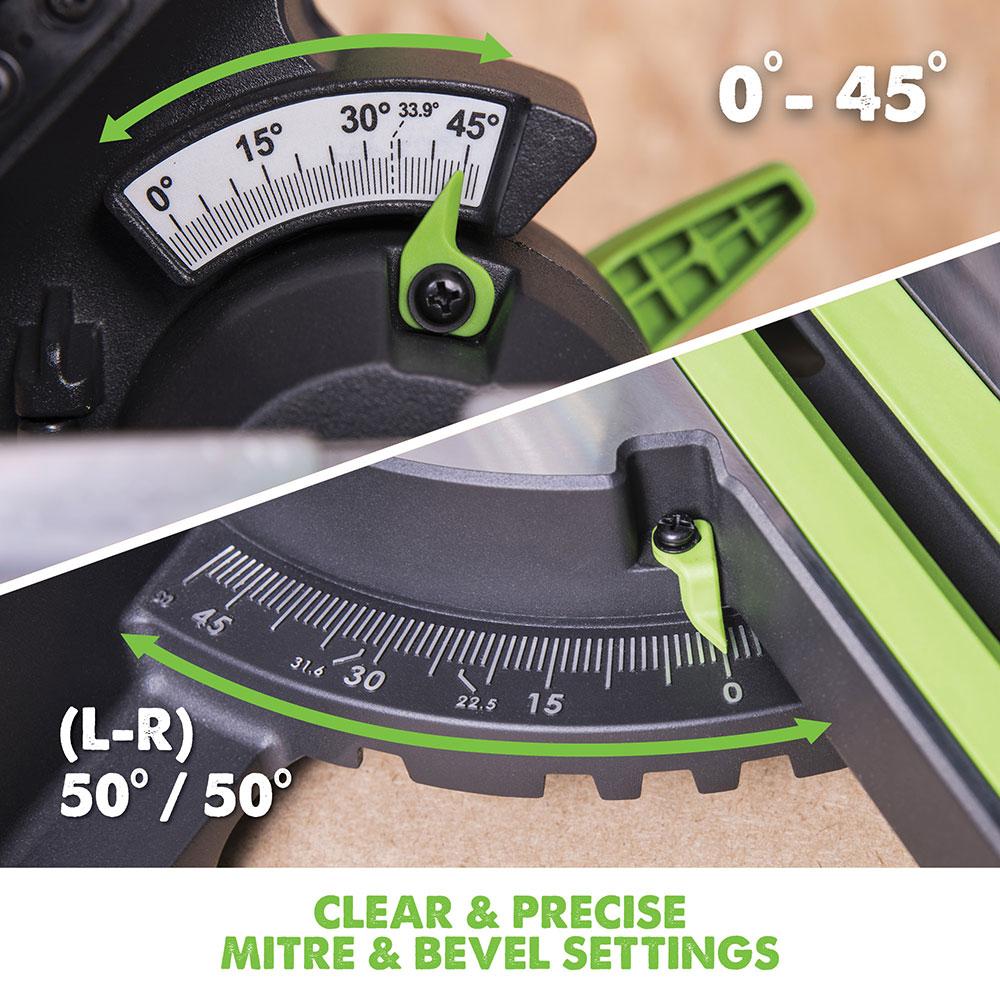

• Cuts to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ mitre both left and right to perform precise bevel, mitre and compound cutting.

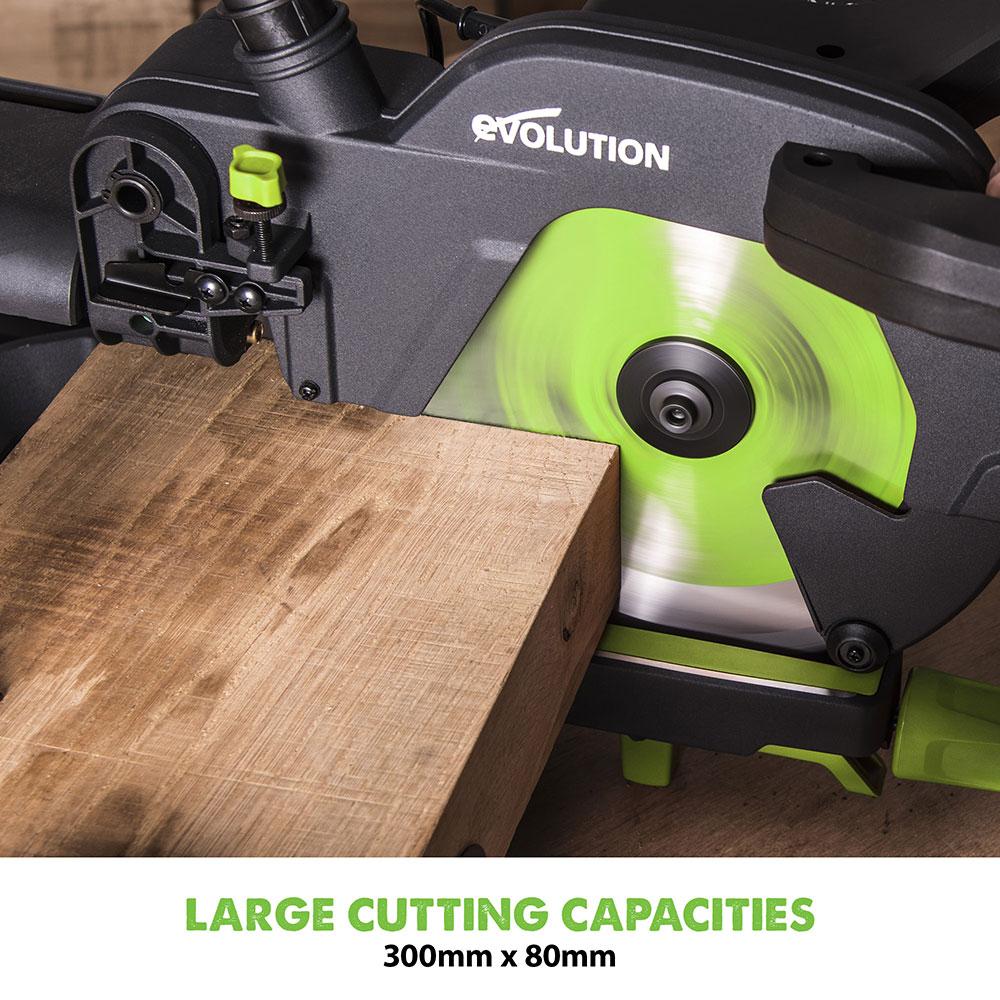

• A huge crosscut capacity enables you to trim skirting boards, cornices, boards, decking and more up to 300mm x 80mm.

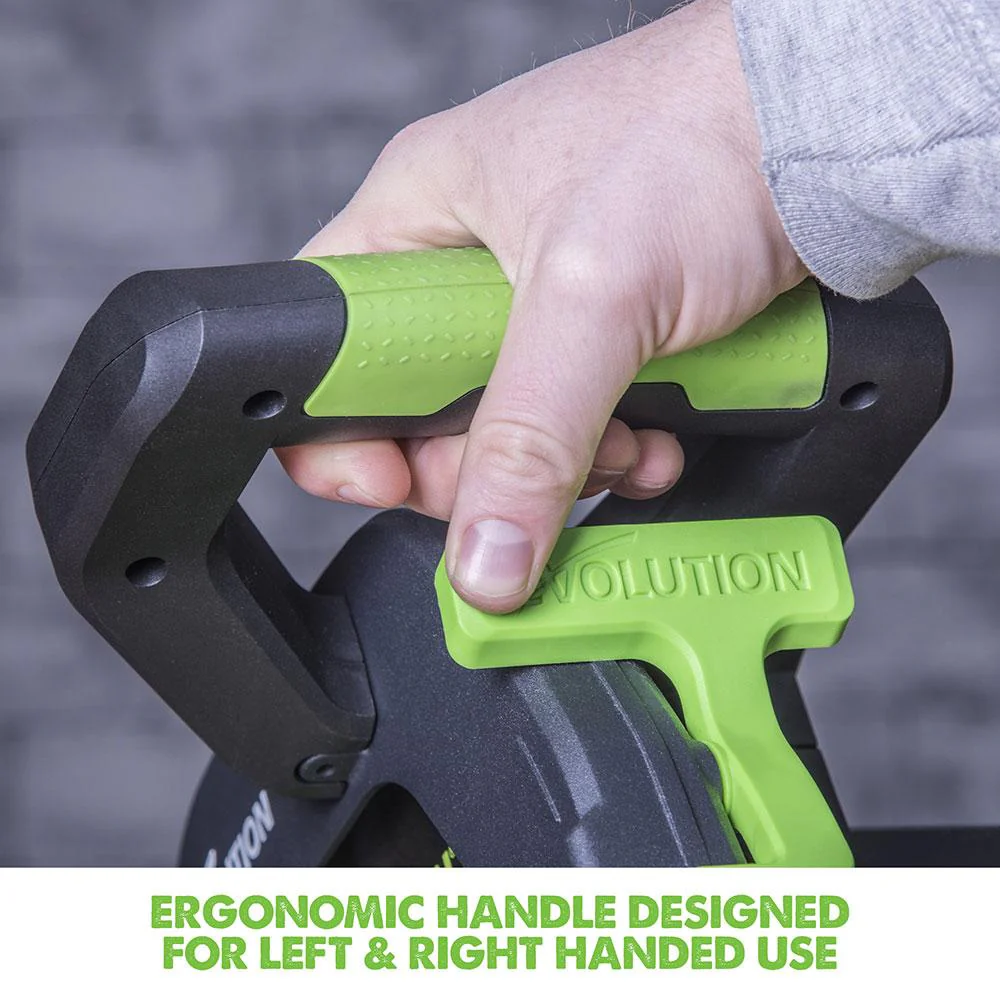

• Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
• Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.

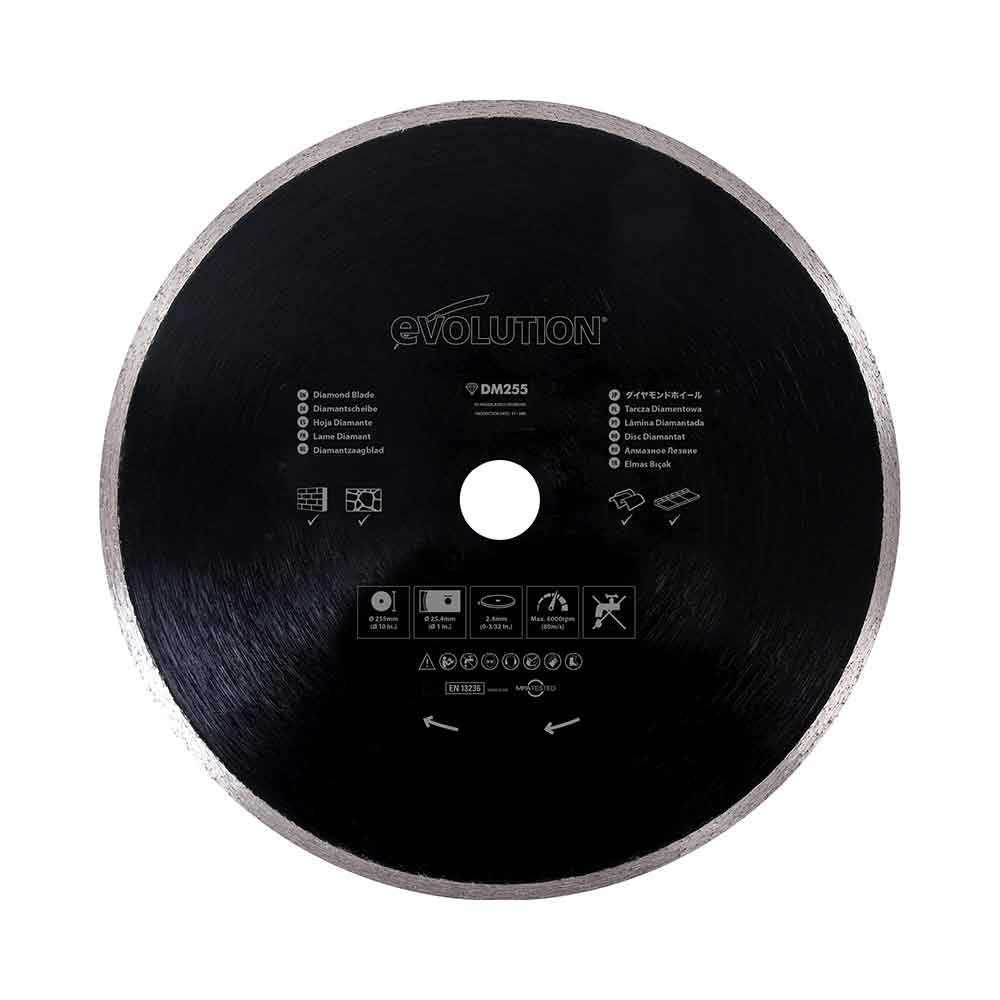

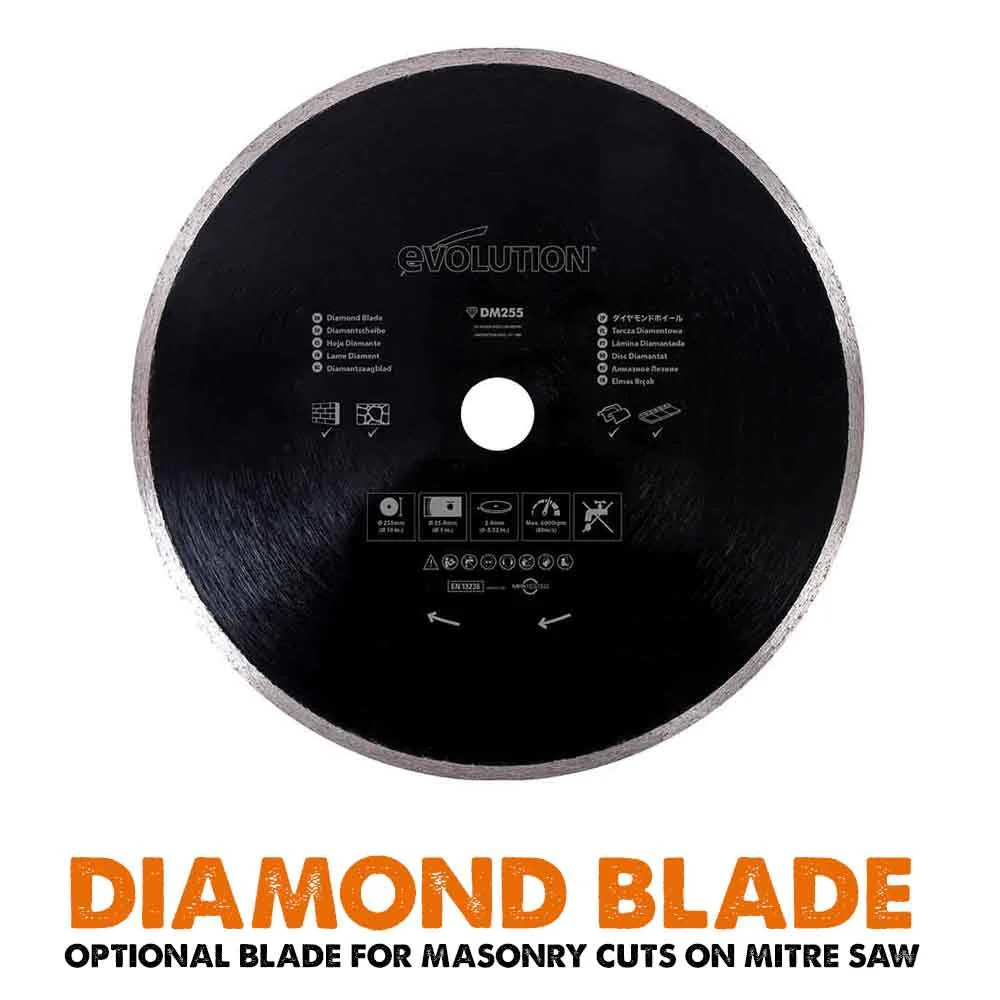

• The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
• Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.

Specifications

Motor (240V 50Hz):	1600W
Speed No Load:	2500 rpm
Max. Bevel (Left):	45°
Max. Mitre:	50° - 50°

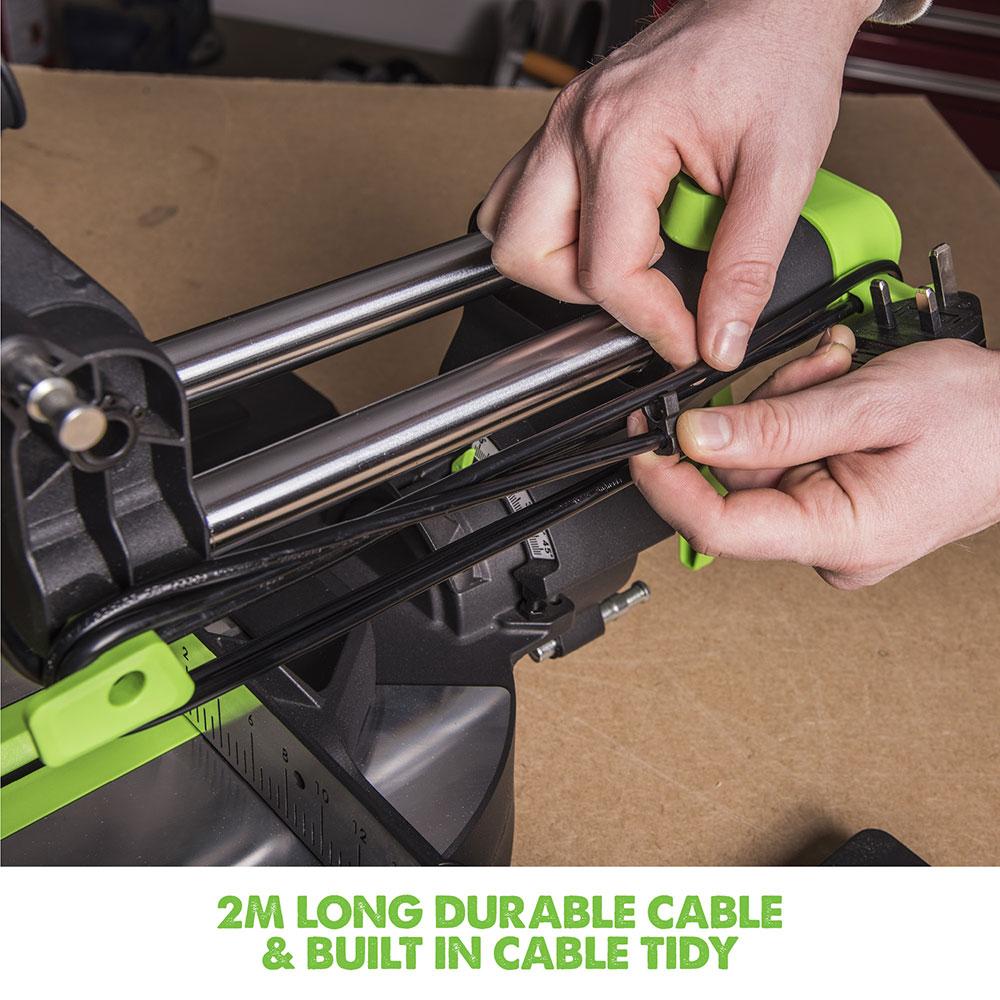

Cable Length:	2m
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Cross Cut (0° x 0°):	300mm x 80mm
Max. Bevel Cut (0° x 45°):	300mm x 45mm
Max. Mitre Cut (45° x 0°):	210mm x 80mm
Max. Compound Cut (45° x 45°):	210mm x 45mm
Mild Steel Plate (Max. Thickness):	3mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Product Dimensions:	360mm x 705mm x 730mm
Packaging Dimensions:	565mm x 365mm x 520mm
Product Weight:	15.3 kg
Packaged Weight:	17.6 kg
Sound Pressure Level LPA:	110V: 95.8 dB(A) / 220-240V: 95.8dB(A)
Sound Power Level LWA:	110V: 108.8 dB(A) / 220-240V: 108.8dB(A)
Uncertainty K:	KpA & KWA: K=3 dB(A)

Items Supplied

Machine Table Extensions

Double Ended Hex Key (M6 & M5)

Rotary Table And Neck

Cutting Head

Carriage Slides

Mitre Locking Knob

Mains Cable Guide/Clamp

Self Tapping Cap Screw

Socket Headed Screws

Cable Clamp Component

Laser Lens Cap

Double Ended Cable Clip

2pc Hold Down Clamp

24T Multi-Material TCT Blade

Compatible With

255mm Multi-Material Cutting TCT Blade

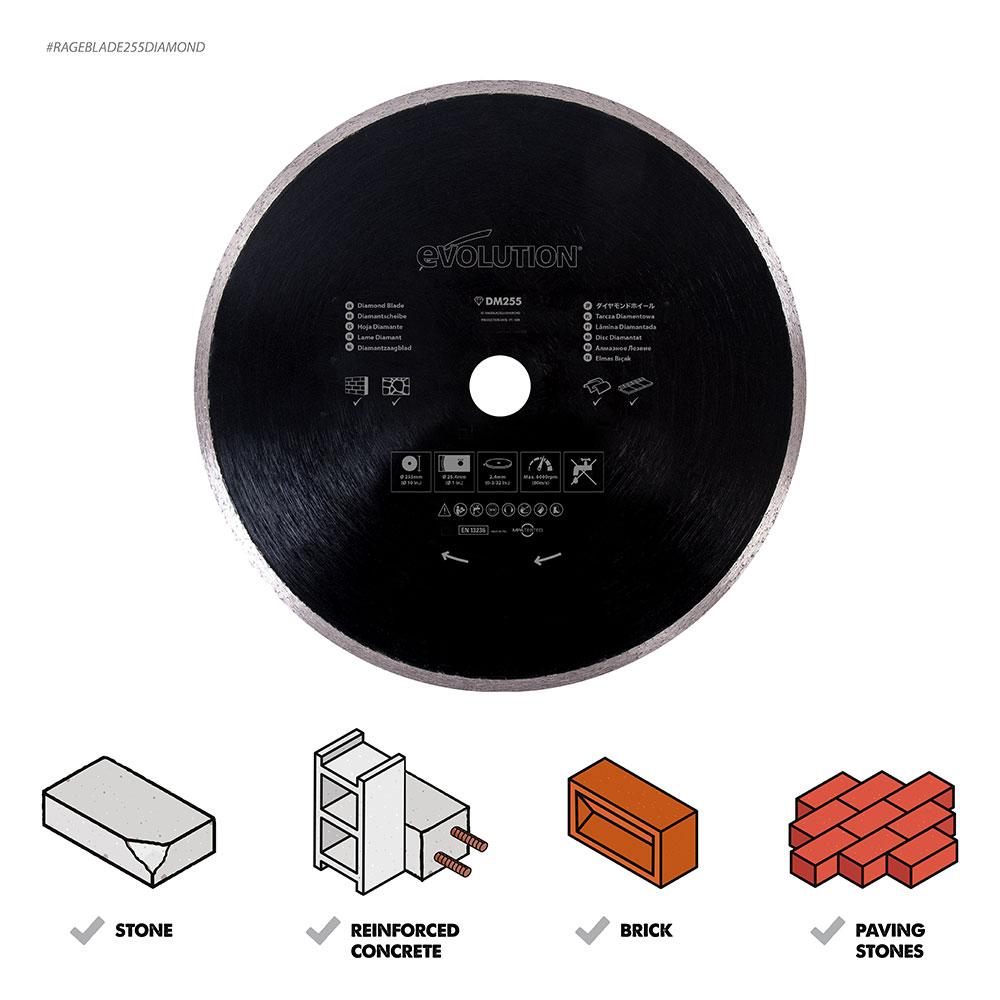

255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
