Evolution F210CMS 210mm Compound Mitre Saw With TCT Multi-Material Cutting Blade (230v)
A 210mm Compound Mitre Saw from Evolution with Multi-Material cutting technology. One saw, one blade, cuts all.* Accurate cutting with 0 - 45-degree bevel tilt and 50 - 50-degree mitre angles. Reliable, smooth, square cut every time in a variety of materials. Powerful 1200W hi-torque motor with optimized gearbox & blade system. Compact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and store away taking up very little space.
Features
Â

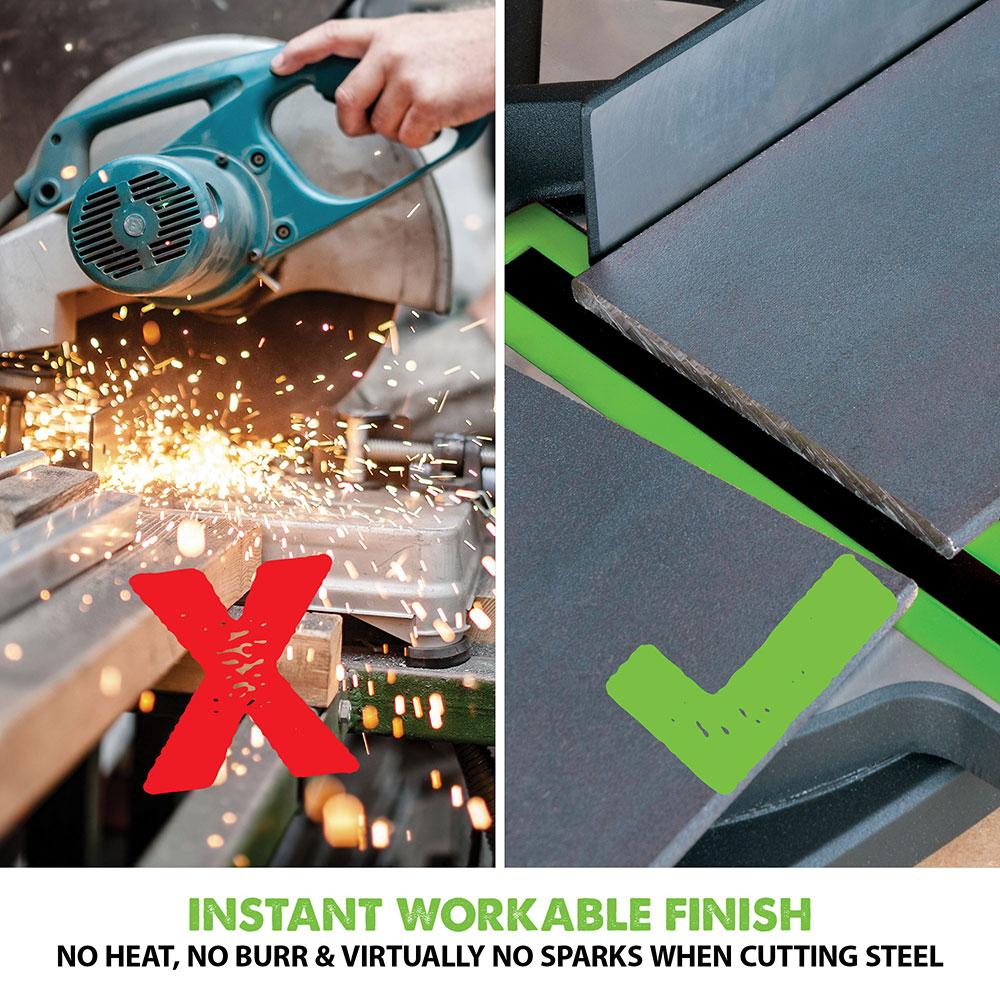

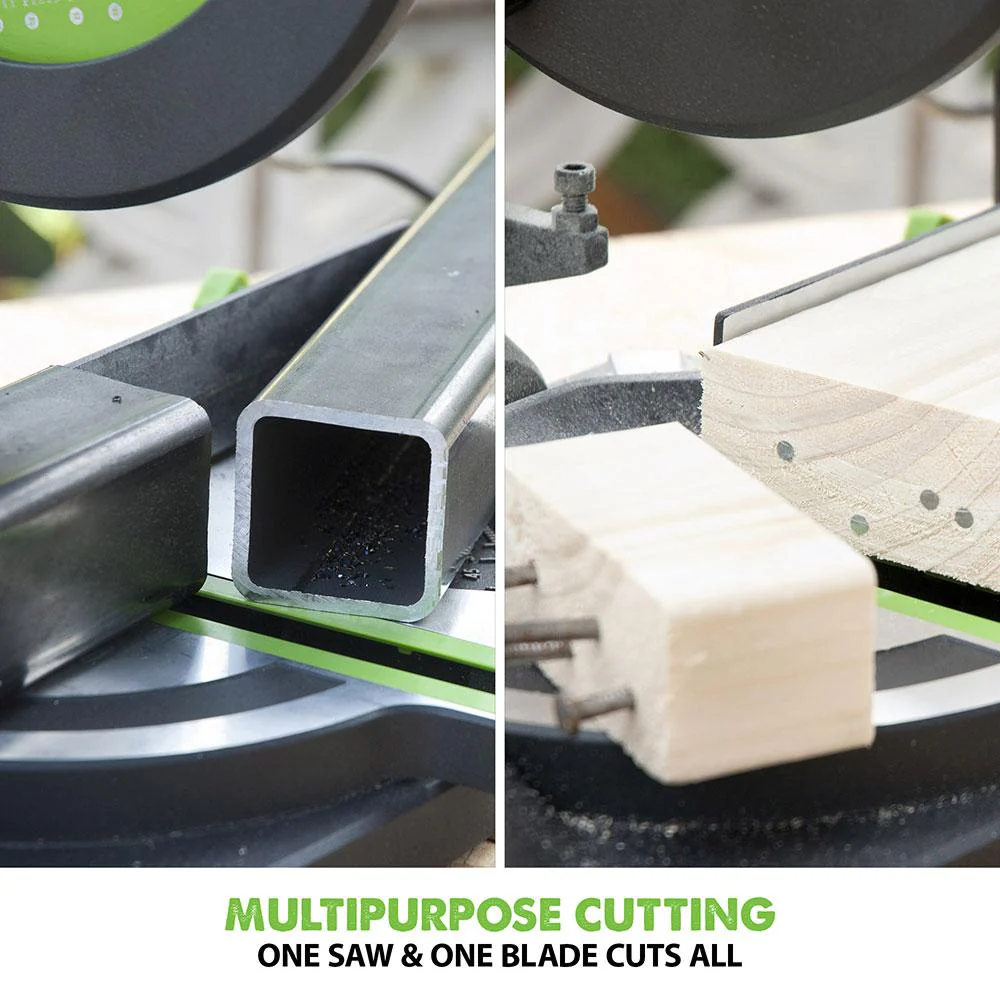

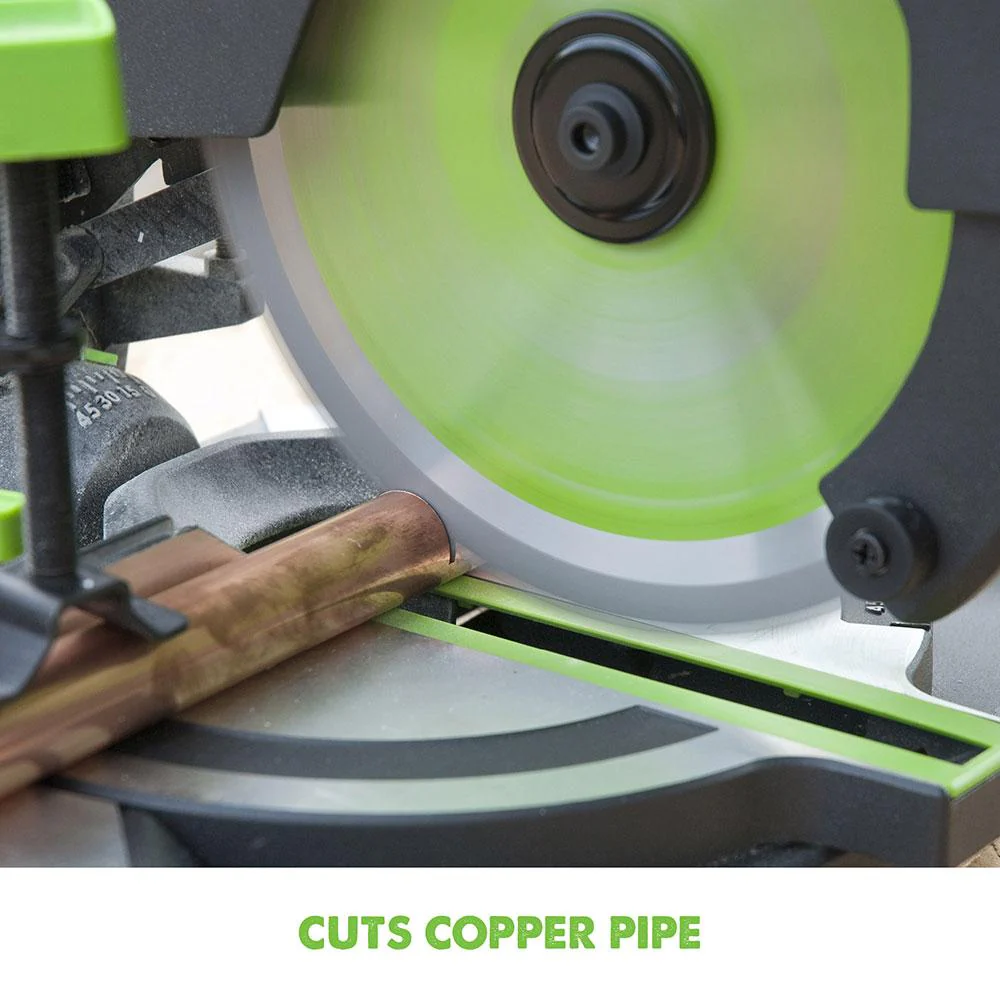

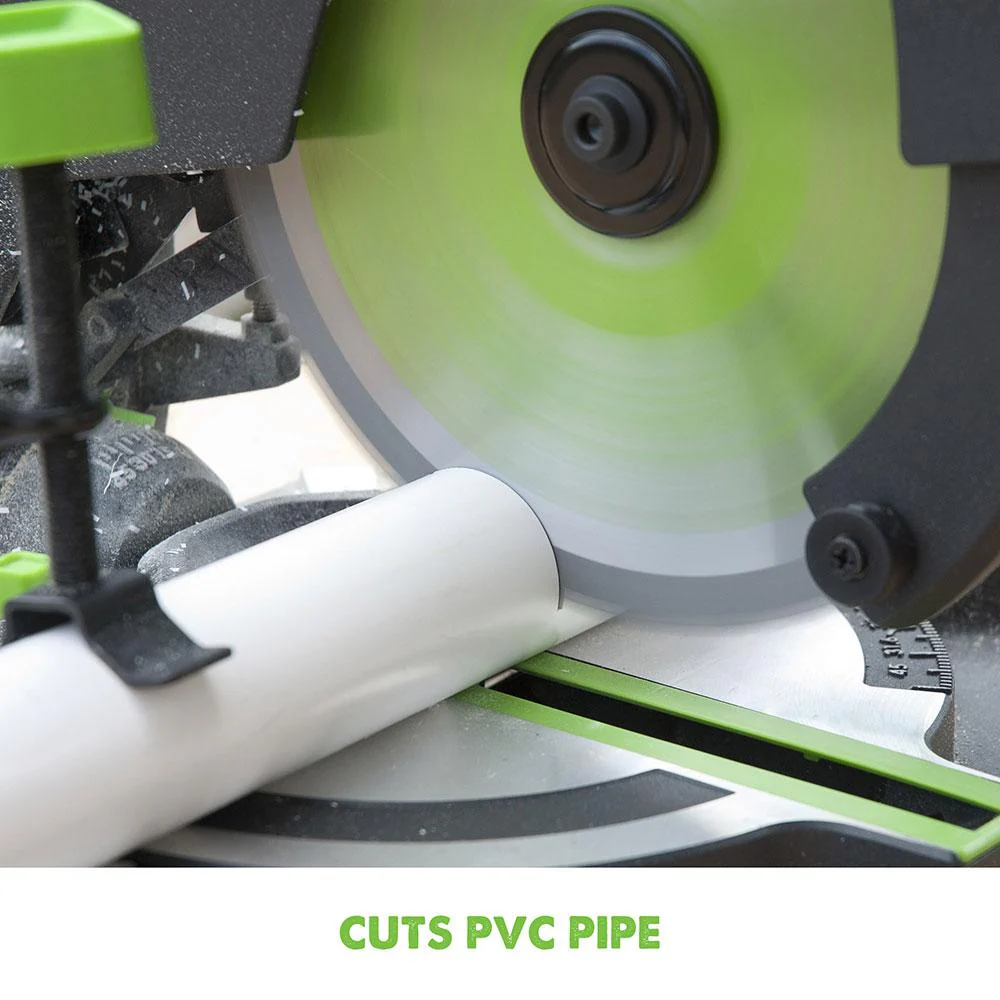

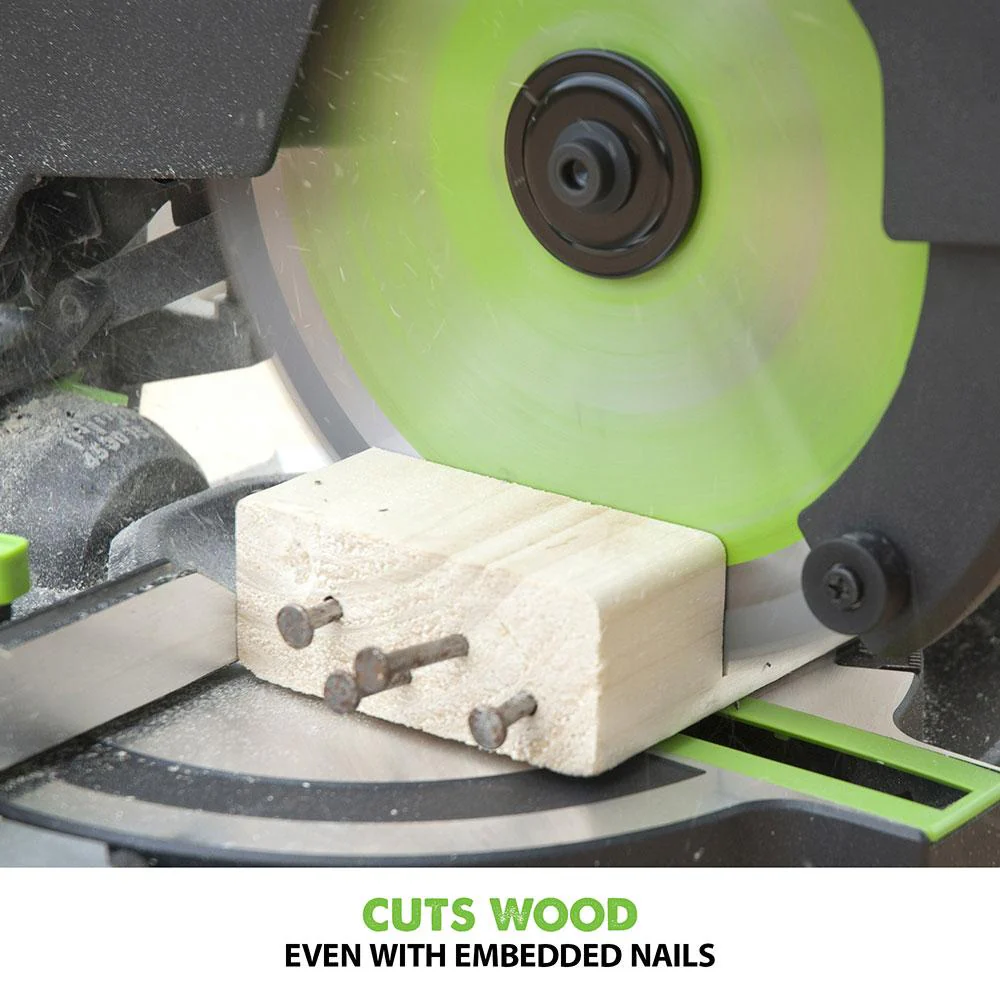

- Multi-Material cutting technology. One saw, one blade, cuts all.*

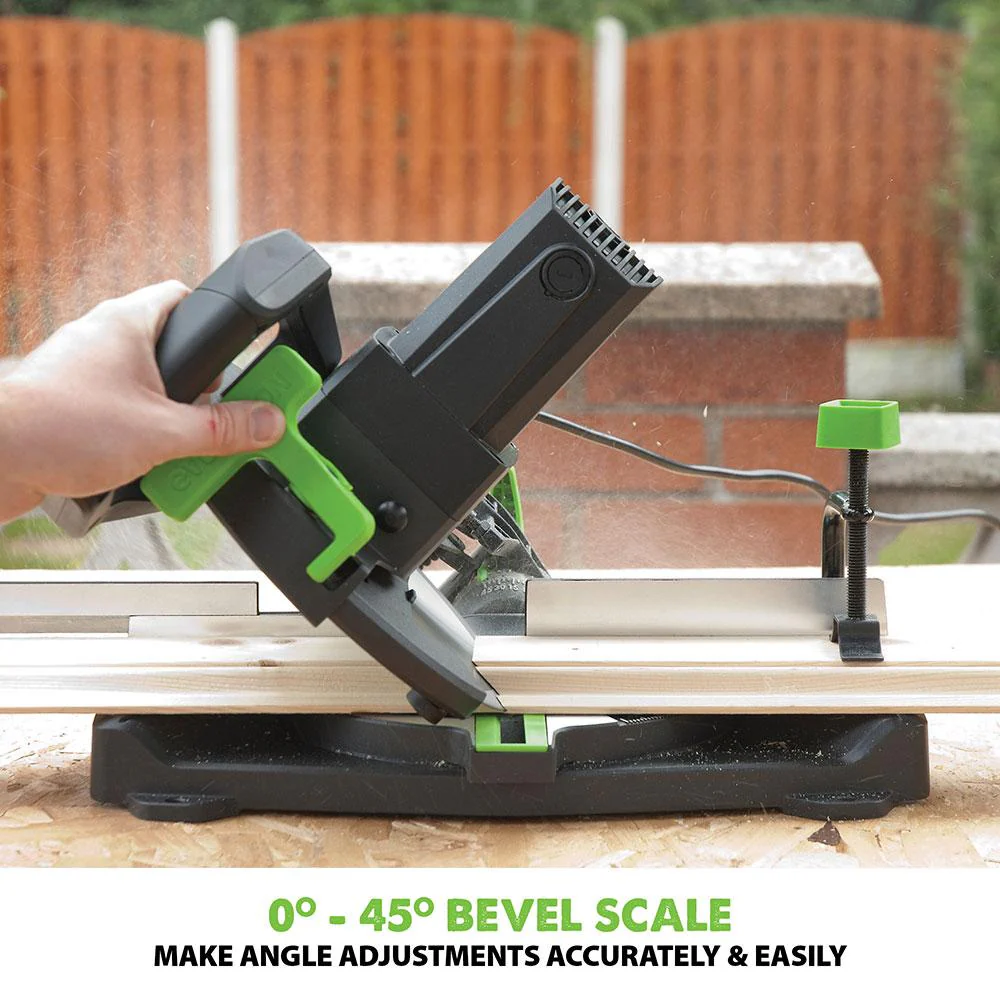

- Accurate cutting with 0Ëš - 45Ëš bevel tilt and 50Ëš - 50Ëš mitre angles.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimised gearbox & blade system.

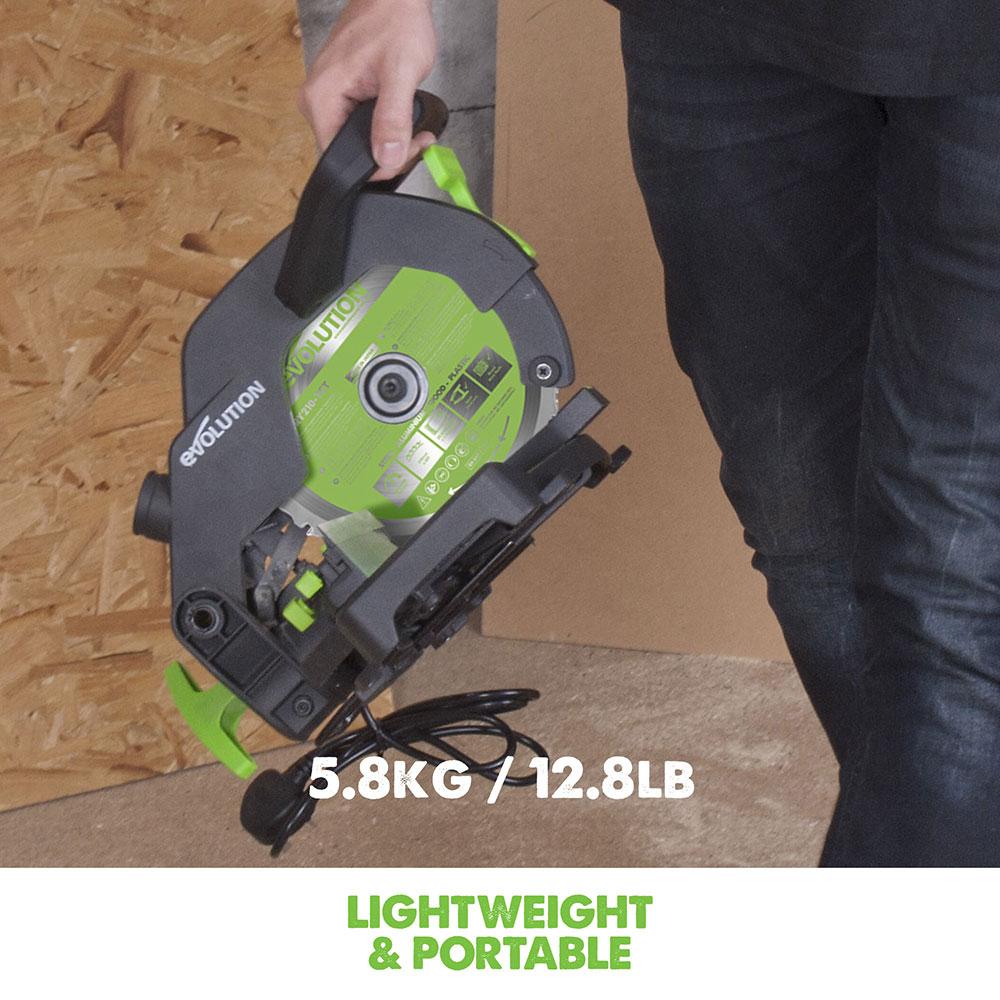

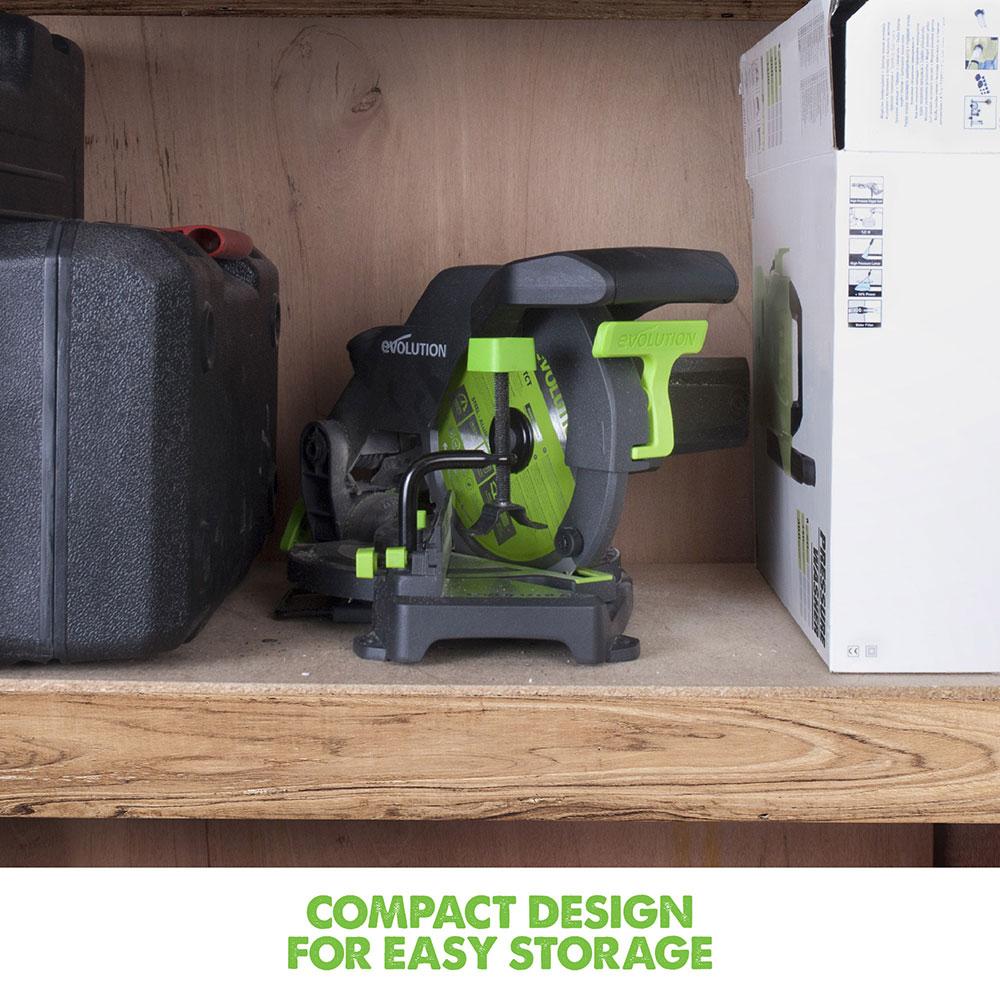

- Compact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and stare away taking up very little space.

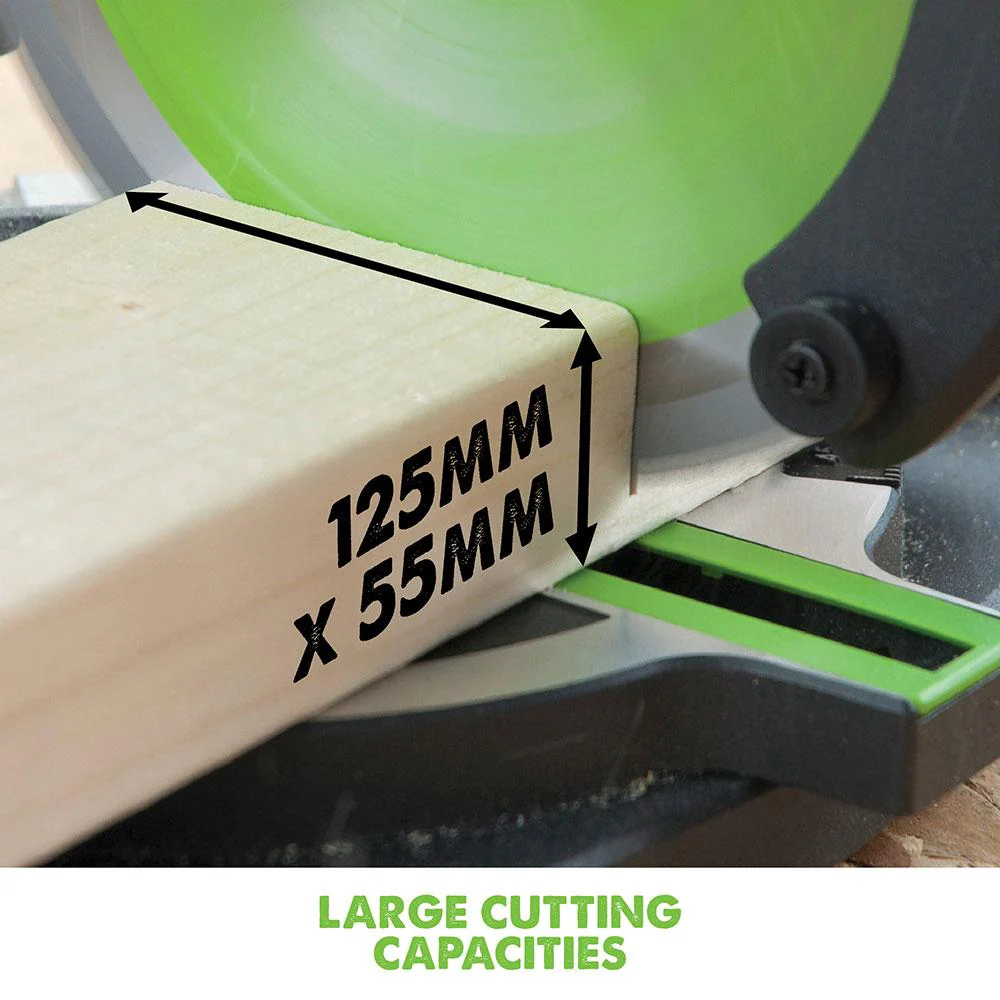

- 125mm x 55mm max. cross cut capacity.

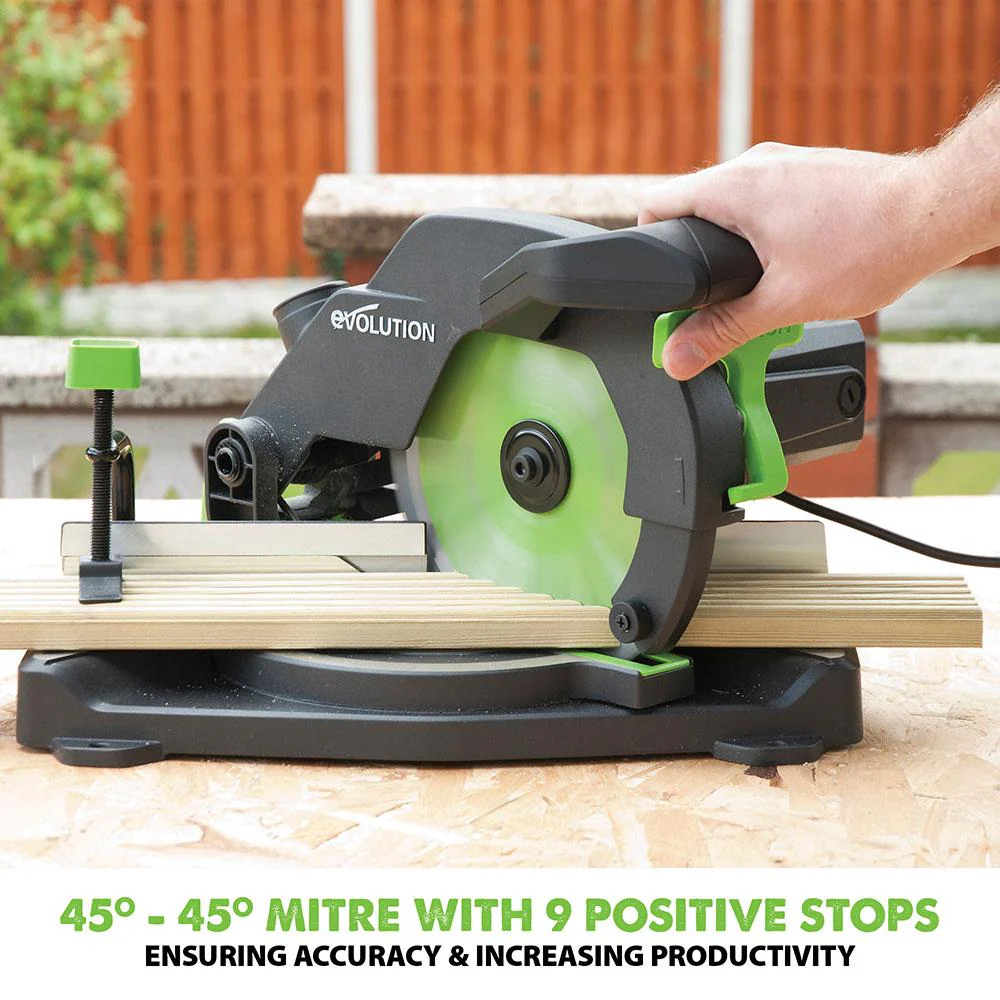

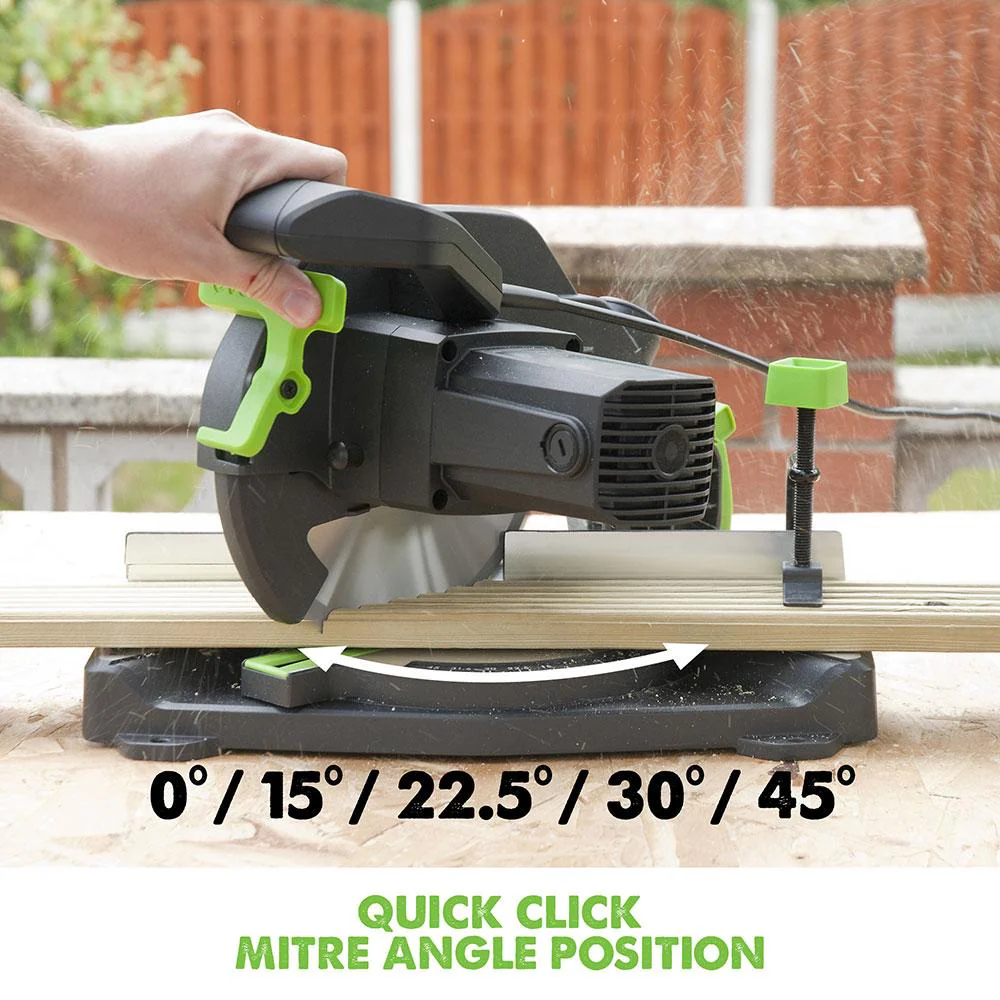

- Positive mitre stops both left & right at 0Ëš, 15, 22.5, 30, and 45Ëš covers all common cutting angles accurately and reliably.

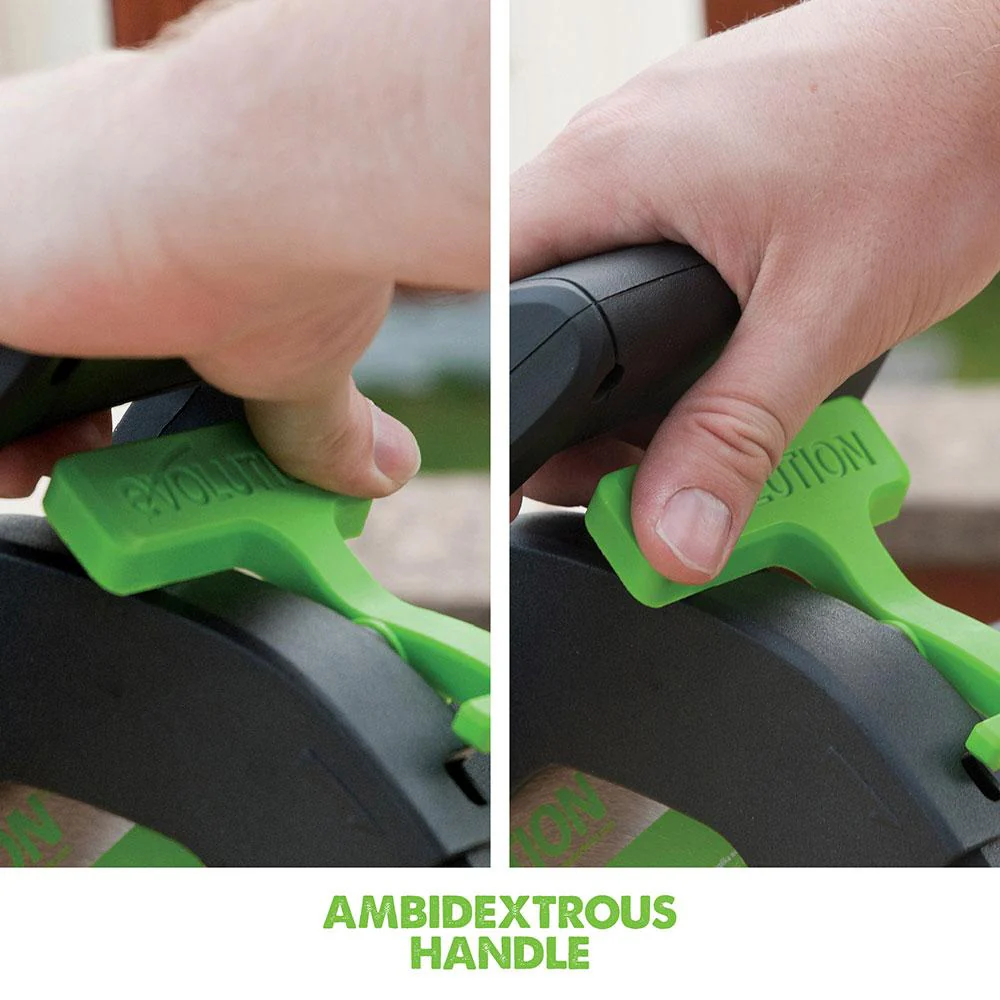

- Ergonomic trigger handle designed for left and right-handed use.
- Compatible with the Evolution Mitre Saw Stand and 210mm Diamond blade, (sold separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
Specifications
| Motor (240V 50Hz): | 1200W |
| Speed No Load: | 3750 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 2m |
| Blade Dia.: | 210mm |
| No. of Teeth: | 20 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 125mm x 55mm |
| Max. Bevel Cut (0° x 45°): | 125mm x 35mm |
| Max. Mitre Cut (45° x 0°): | 85mm x 55mm |
| Max. Compound Cut (45° x 45°): | 85mm x 35mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
4mm |
| Product Dimensions: | 260mm x 393mm x 381mm |
| Packaging Dimensions: | 420mm x 290mm x 310mm |
| Product Weight: | 5.8 kg |
| Packaged Weight: | 7.2 kg |
| Sound Pressure Level LPA: | 110V: 96.02 dB(A) / 220-240V: 97.14dB(A) |
| Sound Power Level LWA: | 110V: 109.02 dB(A) / 220-240V: 110.14dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
Items Supplied
| 20T Multi-Material TCT Blade |

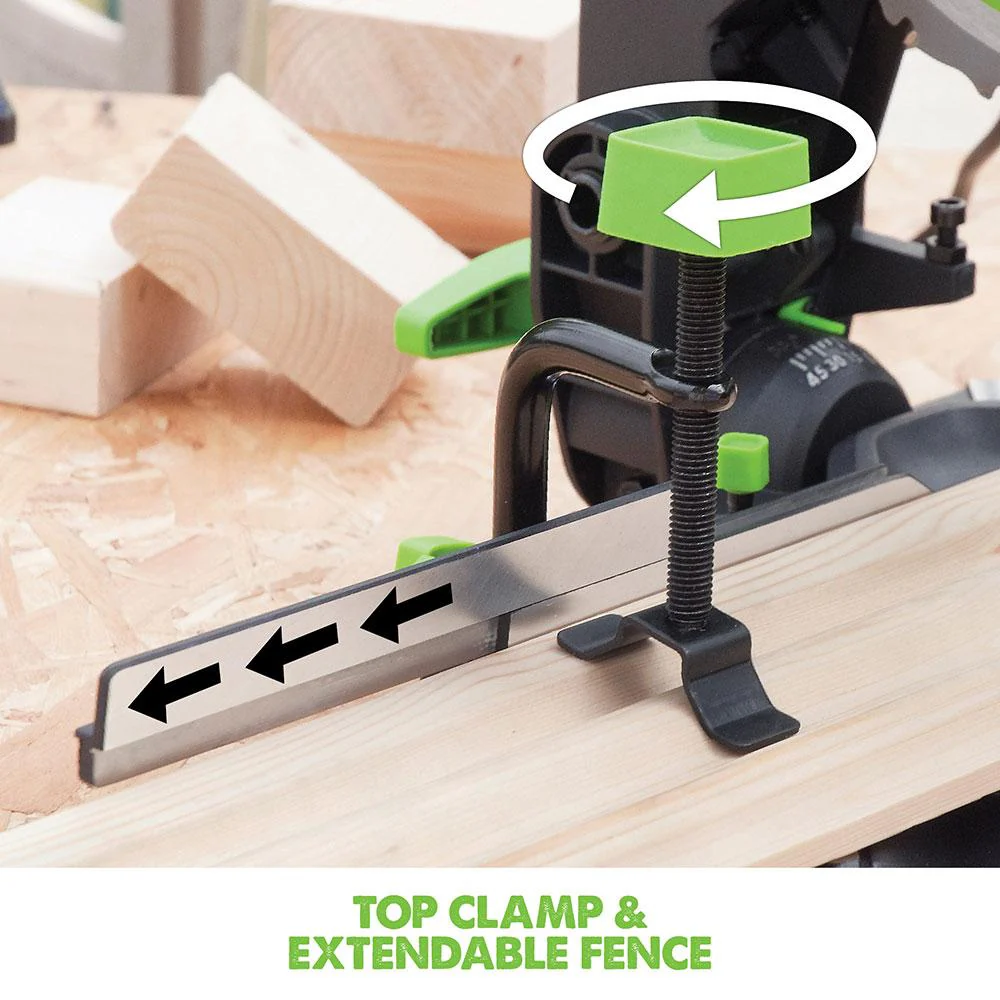

| Top Hold Down Clamp |

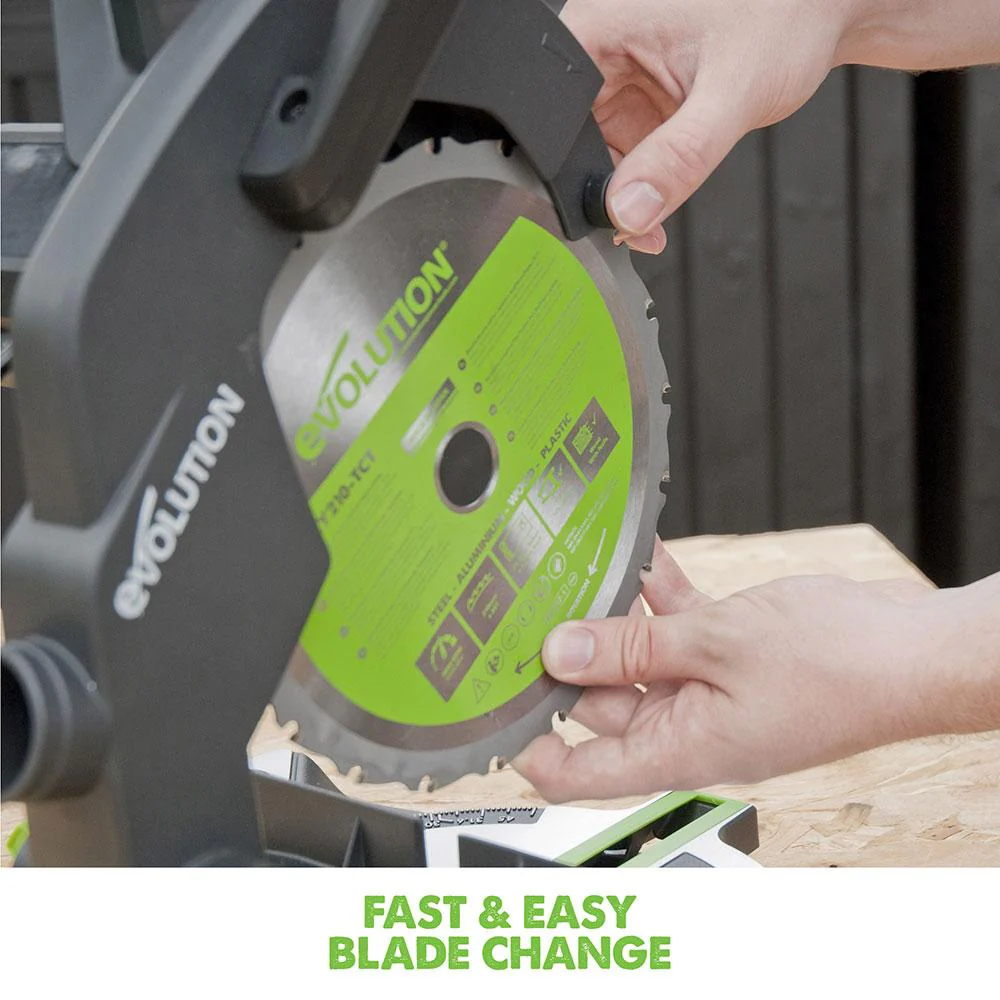

| 6mm Blade Change Allen Key |
Compatible With
210mm 24t Multi-Material Cutting TCT Blade
210mm 20t Multi-Material Cutting TCT Blade
210mm 40t Fine Wood Cutting TCT Blade
210mm 30t General Wood Cutting TCT Blade

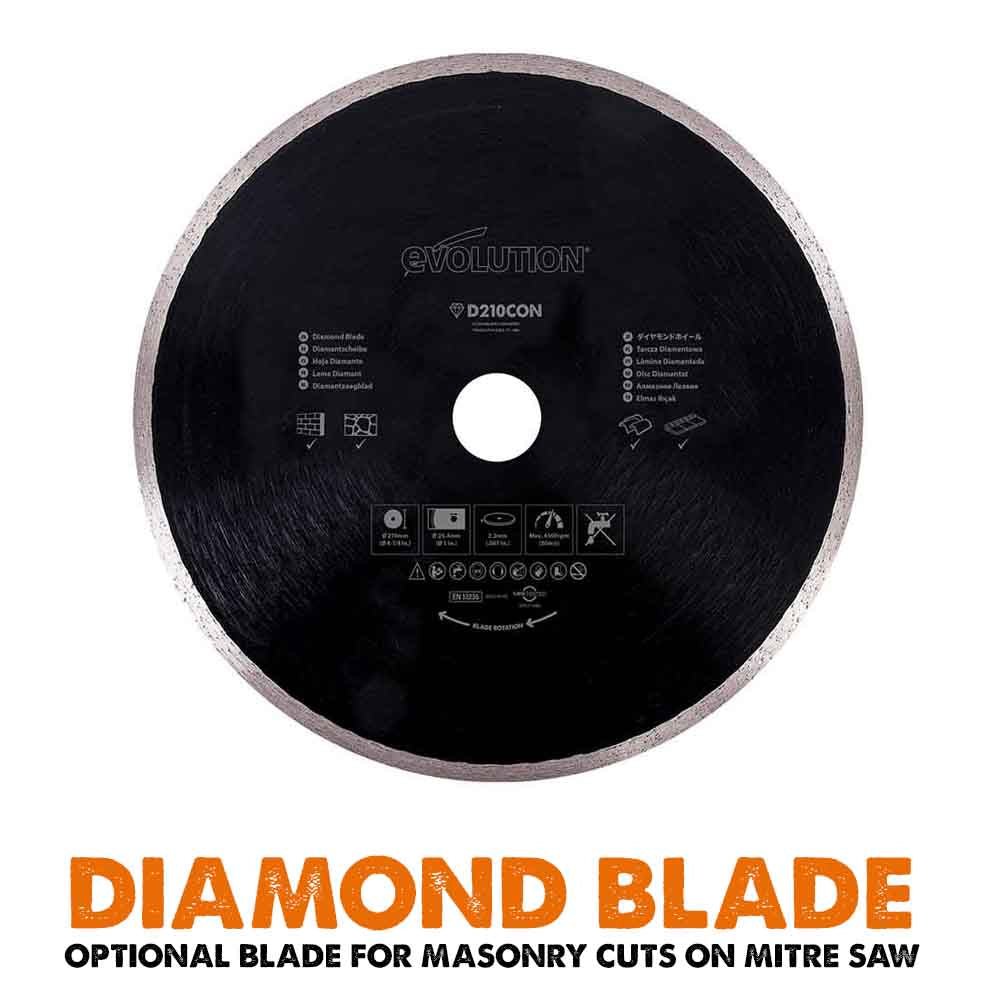

210mm Diamond Masonry Cutting Blade
Mitre Saw Stand
